2.2.1 Line Inputs
For the line input configuration (shown in
through terminals J2 (IN1) and J3 (IN2). The input accepted in this mode is a differential, 2-VRMS, full-scale
audio signal. If a single-ended source is used, then 1-VRMS signal is supported

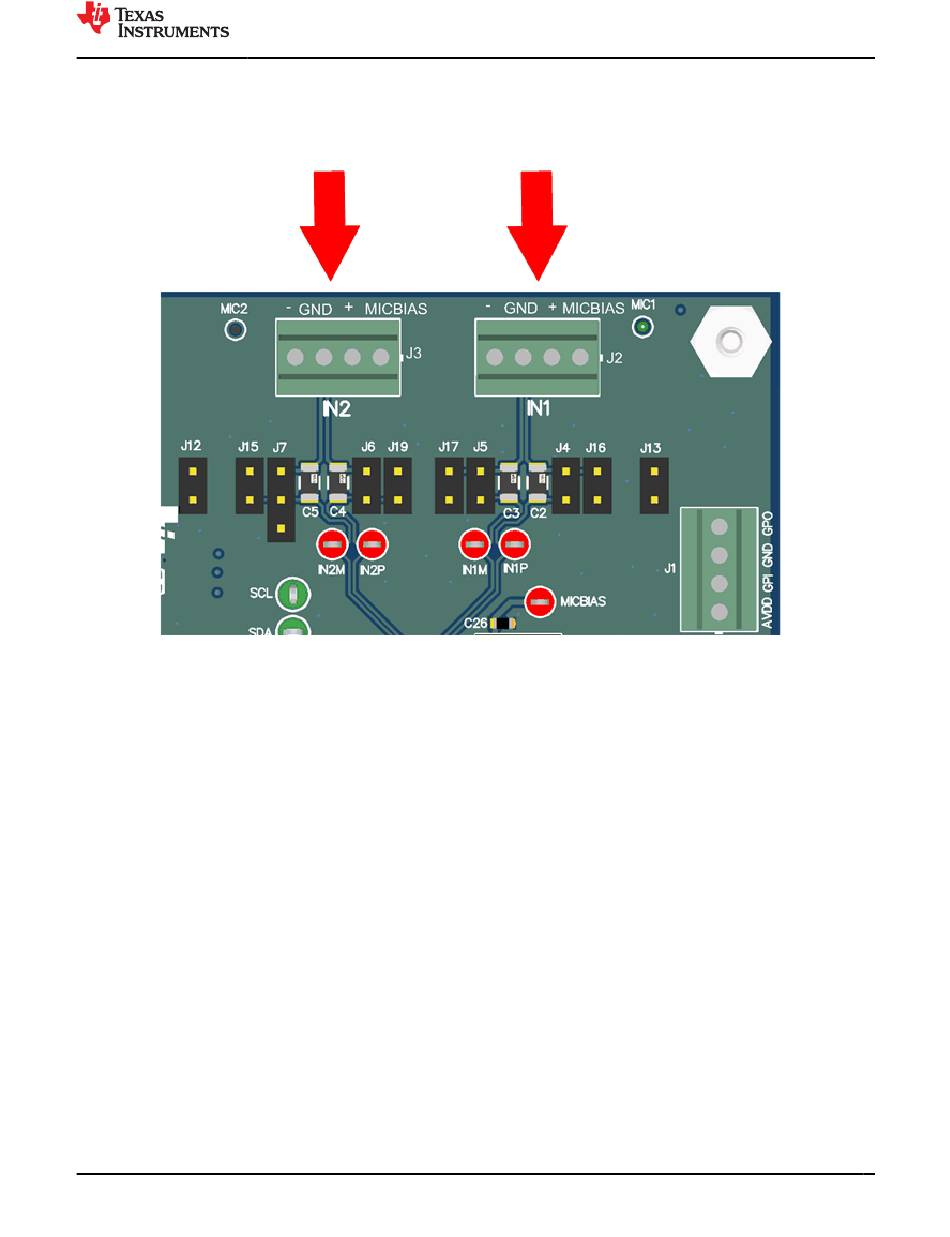

Figure 2-8. PCMx120-Q1EVB Connection for Line Input Application
SBAU398 – MARCH 2022
Submit Document Feedback
Figure 2-8), the PCMx120-Q1 captures the audio signal provided
ADCx120Q1EVM-PDK, PCMD3140Q1EVM-PDK Evaluation Module
Copyright © 2022 Texas Instruments Incorporated
Hardware Overview
