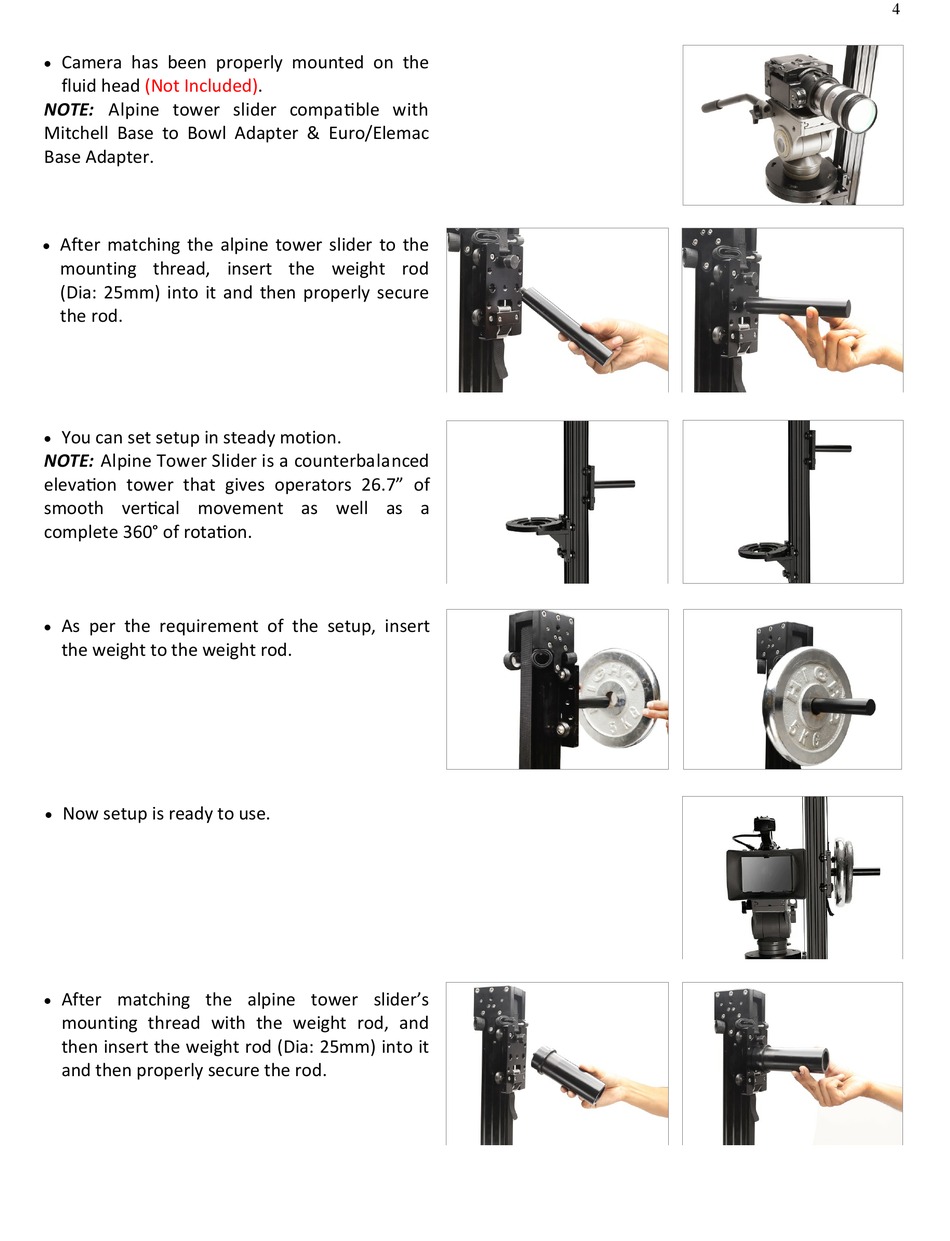

Securing The Camera - PROAIM SL-ALPN-01 Assembly Manual


Camera has been properly mounted on the
fluid head (Not Included).
NOTE: Alpine tower slider compatible with
Mitchell Base to Bowl Adapter & Euro/Elemac
Base Adapter.

After matching the alpine tower slider to the
mounting thread, insert the weight rod
(Dia: 25mm) into it and then properly secure
the rod.

You can set setup in steady motion.
NOTE: Alpine Tower Slider is a counterbalanced
elevation tower that gives operators 26.7" of
smooth vertical movement as well as a
complete 360° of rotation.

As per the requirement of the setup, insert
the weight to the weight rod.

Now setup is ready to use.

After matching the alpine tower slider's
mounting thread with the weight rod, and
then insert the weight rod (Dia: 25mm) into it
and then properly secure the rod.
4
