PROAIM SL-CSMO-01 Instruction Manual

Cosmo camera slider dolly
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

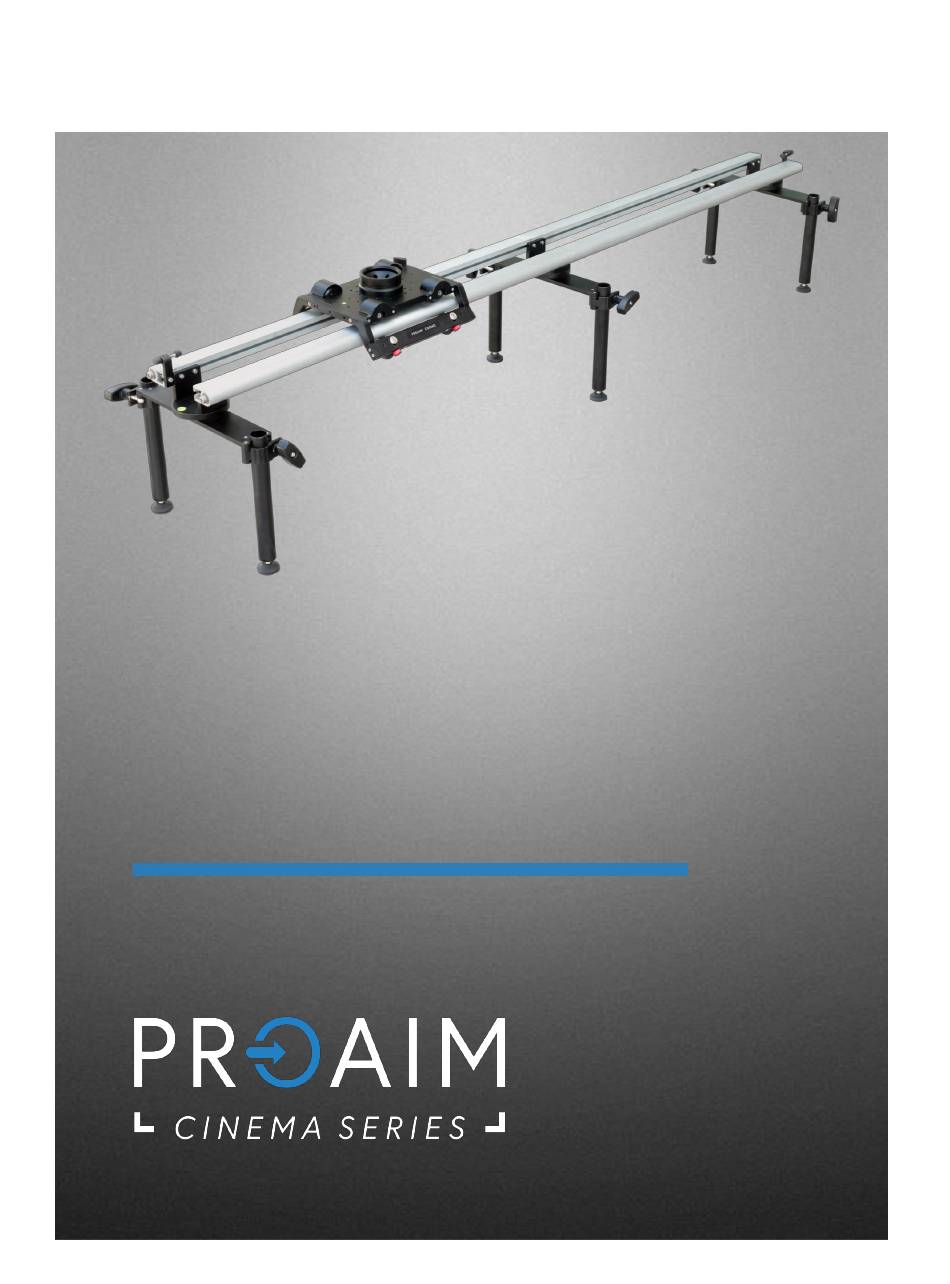

1
Proaim Cosmo Camera
Slider Dolly
(SL-CSMO-01)
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-CSMO-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM SL-CSMO-01

Summary of Contents for PROAIM SL-CSMO-01

  • Page 1 Proaim Cosmo Camera Slider Dolly (SL-CSMO-01) Instruction Manual...
  • Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
  • Page 3 Once you have the opportunity to experience your new Proaim Cosmo 8ft Professional Camera Slider Dolly, we hope you will agree that we craft quality products at a competitive price.

  • Page 4: Introduction

    Introduction Proaim Cosmo Slider is designed for the times where you just want to do a little 6' to 8' dolly move without a lot of setup. The Cosmo Slider is easy to set up, can be used with a variety of track options, and can be supported using standard 100mm stands, apple boxes, or the ground, whatever the shot requires.

  • Page 5: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO EQUIPMENT! NEVER USE THE TRACK IN SAND, DIRT, CAUSTIC, OR SALT WATER ENVIRONMENTS! This will cause irreparable damage to the bearings and rails, requiring complete replacement! DO NOT OVERTIGHTEN CARRIAGE BRAKE! Needlessly over tightening the carriage brake can cause misalignment and severely damage the roller bearings! ALWAYS USE EXTREME CAUTION WHEN USING THE TRACK ON A...

  • Page 6: Assembling

    Assembling  You will receive the cosmo 4ft slider in camera platform attached to it. Loosen the knob to move the top platform length and tighten it to lock when you need static shots.  Loosen the knob of support bar and insert the end feet into the support bar and tighten the knob to secure properly.

  • Page 7: Assembling

     Now 4ft cosmo slider is ready to use you can mount your camera setup, as desired. ASSEMBLING OF 8FT SLIDER  Attach 4ft Track section with another 4ft Track section, by using push-fit connectivity to increase the length. Then tighten the allen bolts , as shown in image. Note: Attach the track section by proper align the section to avoid jerk While using the slider.
  • Page 8  Slide the end break at both ends of the track and tighten the allen bolts to secure properly. NOTE: Cosmo Slider accommodates 4 types of Camera Mounting Heads. 75mm Bowl / 100mm Bowl / 150mm Bowl / Mitchell Base ...
  • Page 9  Mount your female euro directly to the camera platform and tighten the four allen bolts as shown. In order to use euro mount accessories. Note: Similarly loosen the allen bolts and remove the female euro.  Insert provided screw into the Mitchell plate, Place the bush onto the Mitchell plate as shown ...

  • Page 10: Warranty

    NOTE: Follow same steps as for 150mm bowl. YOUR PROAIM COSMO SLIDER ALL DRESSED UP AND READY TO GO (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.

  • Page 11: Warranty

    The warranty does not include, by the way of example, damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product , or service by anyone other than our company. We are not liable for incidental or consequential damages resulting from the use of the unit or occurring due to any breach of this warranty.
