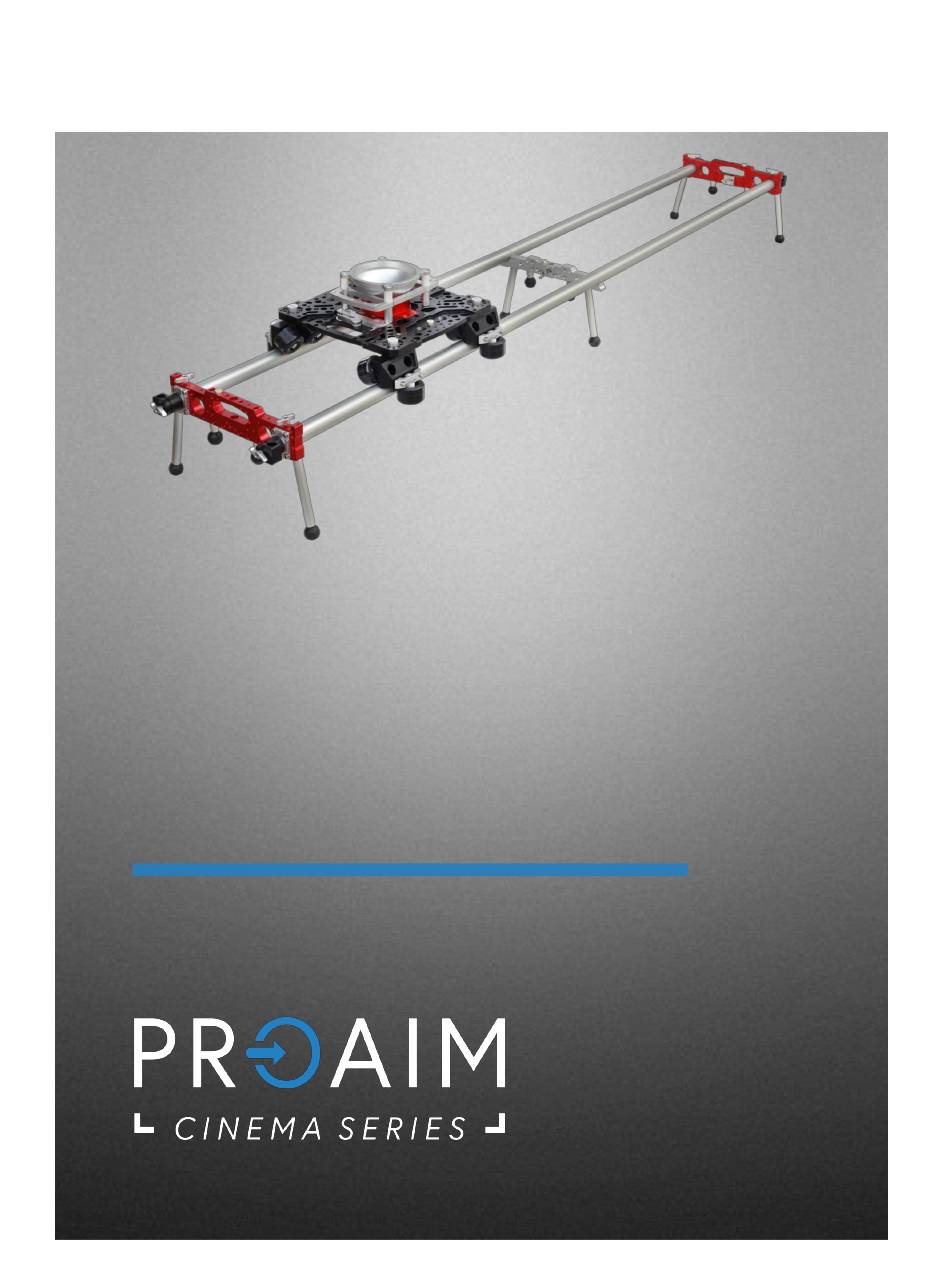

- Page 1 Flymate 8ft Slider Track Dolly (SL-187-00 ) Instruction Manual...
- Page 2 Proaim Flymate 8ft Camera Slider Track Dolly At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Proaim family. By purchasing your Proaim Flymate 8ft Camera Slider , you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
-
Page 4: Introduction

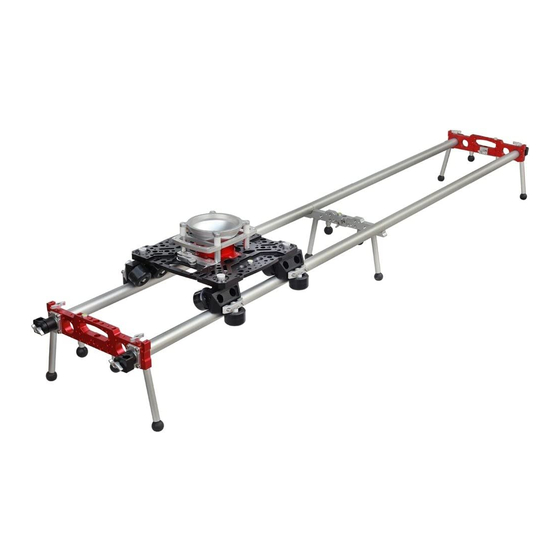

Proaim Flymate 8ft Camera Slider Track Dolly Introduction A heavy-duty, high-tech and extremely practical Flymate Slider Dolly by Proaim that allows super smooth controlled motion at any speed, with unique safety features. It is a Pro Video, Cinema & Broadcast Camera Movement Solution. Made from CNC machined, industrial-grade aluminum;... -
Page 5: Safety Hints
Proaim Flymate 8ft Camera Slider Track Dolly Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO EQUIPMENT! NEVER USE THE TRACK IN SAND, DIRT, CAUSTIC, OR SALT WATER ENVIRONMENTS! This will cause irreparable damage to the bearings and rails, requiring complete... -
Page 6: Assembling
Proaim Flymate 8ft Camera Slider Track Dolly Attaching the Long Feet / Baby Feet NOTE: For assembling the Slider, you need to first attach Feet with End Truss. There are 2 steps to attach Long Feet / Baby Feet. (a) By using Rosette Adapter (b) By inserting directly into End Truss ... - Page 7 Proaim Flymate 8ft Camera Slider Track Dolly Attaching the Track Insert Track sections into End Truss and tighten the knobs properly to secure them. NOTE: You can increase the length of Track, as per your requirement. Attach 4ft Track section with another 4ft...
-
Page 8: Assembling
Proaim Flymate 8ft Camera Slider Track Dolly Assembling the Dolly with Mitchell Mount Insert Feet of Camera Platform to make the base and then insert washers, as shown. Then attach Mitchell Base Plate onto Platform, tighten the plate by twisting and mount the whole Camera Platform onto Dolly Platform. - Page 9 Proaim Flymate 8ft Camera Slider Track Dolly Assembling the Dolly with 100mm Bowl Attach Center of Platform with 100mm Bowl Receptacle and tighten both together with the Then mount this onto Dolly Platform and tighten properly with the help of allen key, as shown.
- Page 10 Proaim Flymate 8ft Camera Slider Track Dolly Attaching the Track Wheel Attach track wheel with the camera platform & mount the dolly onto the track as shown below. NOTE: You can use the Track system on floor or mount it onto C-stand or a Tripod via ¼”-20, 3/8”- 16 or 5/8”...
- Page 11 Proaim Flymate 8ft Camera Slider Track Dolly To Use Dolly As Underslung Fix Centre of Platform to the bottom of Dolly Platform and tighten with the screws. Then attach Track Wheel modules on the corner of Dolly Platform and lock the bolts.
- Page 12 Proaim Flymate 8ft Camera Slider Track Dolly Insert either Long Feet or Baby Feet (as per requirement) into the Adapter and tighten the knob as shown. Now mount your Fluid Head (Not Included) onto the Platform, and finally mount your camera and other accessories.
-
Page 13: Warranty
Proaim Flymate 8ft Camera Slider Track Dolly WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
