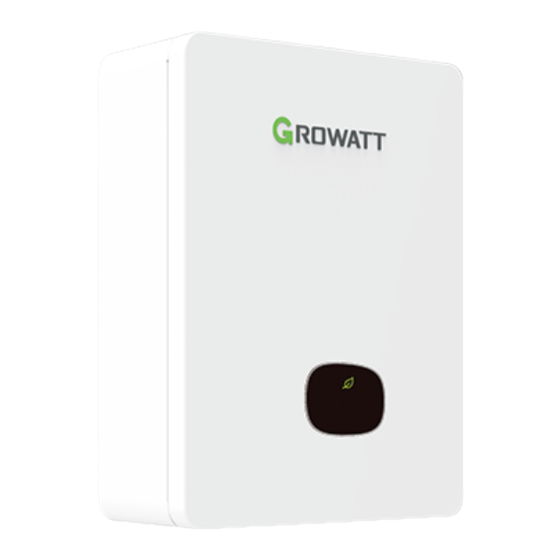

Growatt SYN 50-XH-1 Quick Manual

1

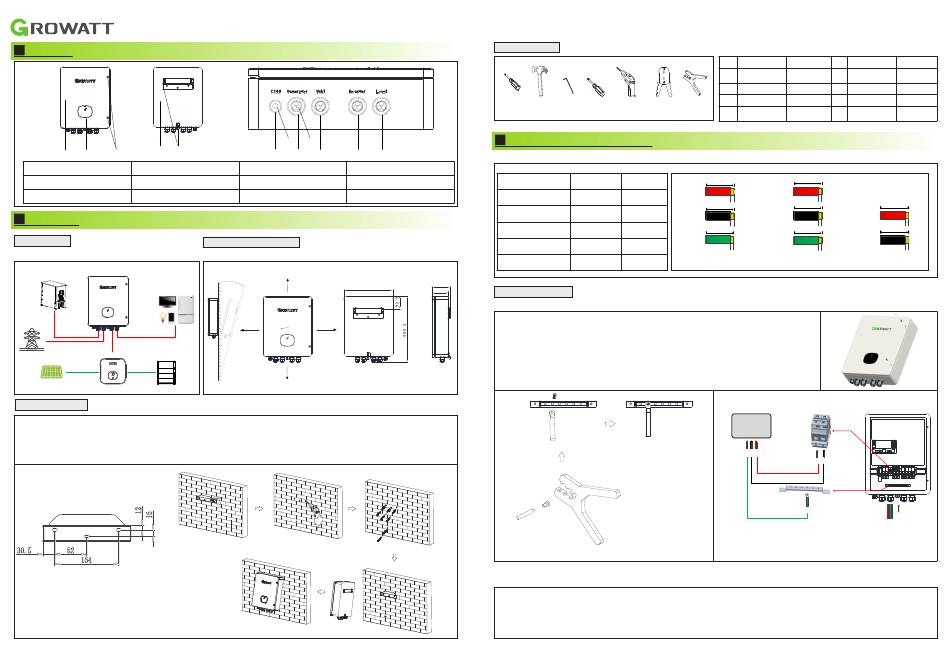

Overview

.
1 2 3 4 5
1：Front panel 2：LED indicator
5：Mounting bracket 6：COM wiring port
9：Inverter wiring port 10：Load wiring port
2
.

Installation

System overview

Generator
Load
Grid
AC
AC
AC
AC
Inverter
Battery
PV
DC
DC
2.2

Installation steps

1.Determine SYN 50-XH-1 mounting location, on a wall, stud framing or pole. It is recommended to mount the Backup Interface in a location
protected from direct sunlight.
2.To allow proper heat dissipation, maintain at least a 300mm clearance between the SYN 50-XH-1 and other objects.
3.Position the mounting bracket against the wall/pole and mark the drilling hole locations.
4.Drill the holes and mount the bracket. Verify that the bracket is firmly attached to the mounting surface.
5. Hang SYN 50-XH-1 on the bracket.
SYN 50-XH-1 Quick Guide
11 11
6 7 8 9 10
3：Screw for top cover 4：The main frame body
7：Generator wiring port 8：Grid wiring port
11：Waterproof plugs
2.1

Installation requirements

The front, back and side pictures of the machine are as follows:
≤15°
≥300mm
365
≥300mm
≥300mm ≥300mm ≥300mm
≥500mm
2.3

Required tools

1 2 3 4
3
.

Wire specification suggestions

The cable specifications of this machine are as follows, and the wiring end is stripped 10mm.
project Wire diameter
Grid input cable 6-8AWG
Inverter input cable 8-12AWG
Load output cable 8-12AWG
Generator input cable 6-8AWG
Communication cable 22-26AWG
134.7
120.2 3.2

Wiring instructions

3.2.1 Connecting SYN 50-XH-1 to the Grid

1
1.Take out the two screws on the upper cover of the machine, open the upper cover, and do not
remove the ugly plate inside the machine.
2.Loosen the plastic cover printed as " Grid " counterclockwise, remove the three waterproof plugs,
and reserve three holes.
3.Route the three power grid cables (L/N/PE) through the three holes and connect them to the power
grid input terminal and the ground copper bar. The screw torque on the power grid terminal is 26.5
in*lbs / 3.0 N*m to 31 in*lbs / 3.5 N*m, and the screw torque on the ground terminal is 13 in*lbs / 1.5
N*m.
4.Finally, fasten the plastic cover clockwise. Wiring is shown as follows:
2
3.2.2 Connecting SYN 50-XH-1 to the Inverter
When connecting theSYN 50-XH-1 to the XH Inverter, we need to connect AC power cable and communication cable.
1)To connect to the AC cable:
1.Loosen the plastic cover printed as "Inverter" counterclockwise, remove the three waterproof plugs, and reserve three holes.
2.Route the cables of the three inverters (L/N/PE) through the three holes, connect the cables to the inverter circuit breaker terminal and the
ground copper bar. The screw torque of the inverter circuit breaker terminal is 17.5 in*lbs / 2 N*m, and the screw torque on the ground
terminal is 13 in*lbs / 1.5 N*m.
3.Finally, fasten the plastic cover clockwise. Wiring is shown as follows:
No. Name Size
straight
Φ5mm
1
screwdriver
Φ5mm
3 Allen wrench
Φ6mm
5 Electric drill
5 6
7
Line pressing
7
pliers
Line length 20m
10m
6-8AWG 10-12AWG
L
10m
10mm
20m
10m
20m
6-8AWG 10-12AWG
N
10mm
20m 20m
10m
6-8AWG 10-12AWG
PE
10m
10mm
Grid and Generator AC cable Load and lnverter AC cable
20m
3
Grid
PE L PE N
PE
Connection to the Grid
No. Name Size
2 hammer /
Φ5mm
4 Cross rise
6 Wire stripper /
/
L
10mm
20m
24-26AWG L
N
10mm
10mm
20m
24-26AWG
PE N
10mm
10mm
Communication cable
1
L N
Grid
