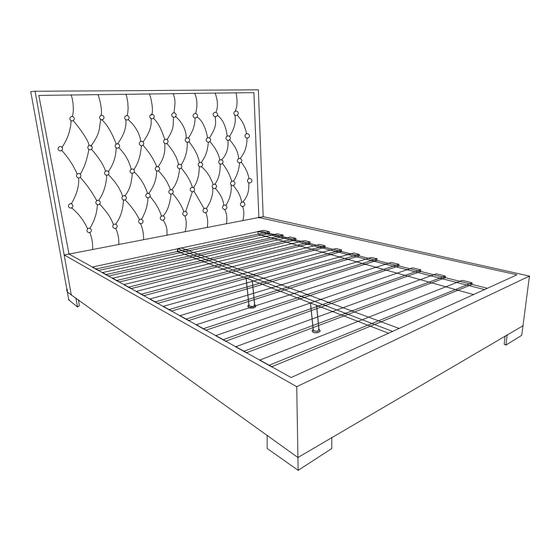

Happy Beds Chelsea Velvet Bed 4ft6 Double Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Happy Beds Manuals
  4. Indoor Furnishing
  5. Chelsea Velvet Bed 4ft6 Double
  6. Assembly instructions manual

Happy Beds Chelsea Velvet Bed 4ft6 Double Assembly Instructions Manual

Hide thumbs Also See for Chelsea Velvet Bed 4ft6 Double:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

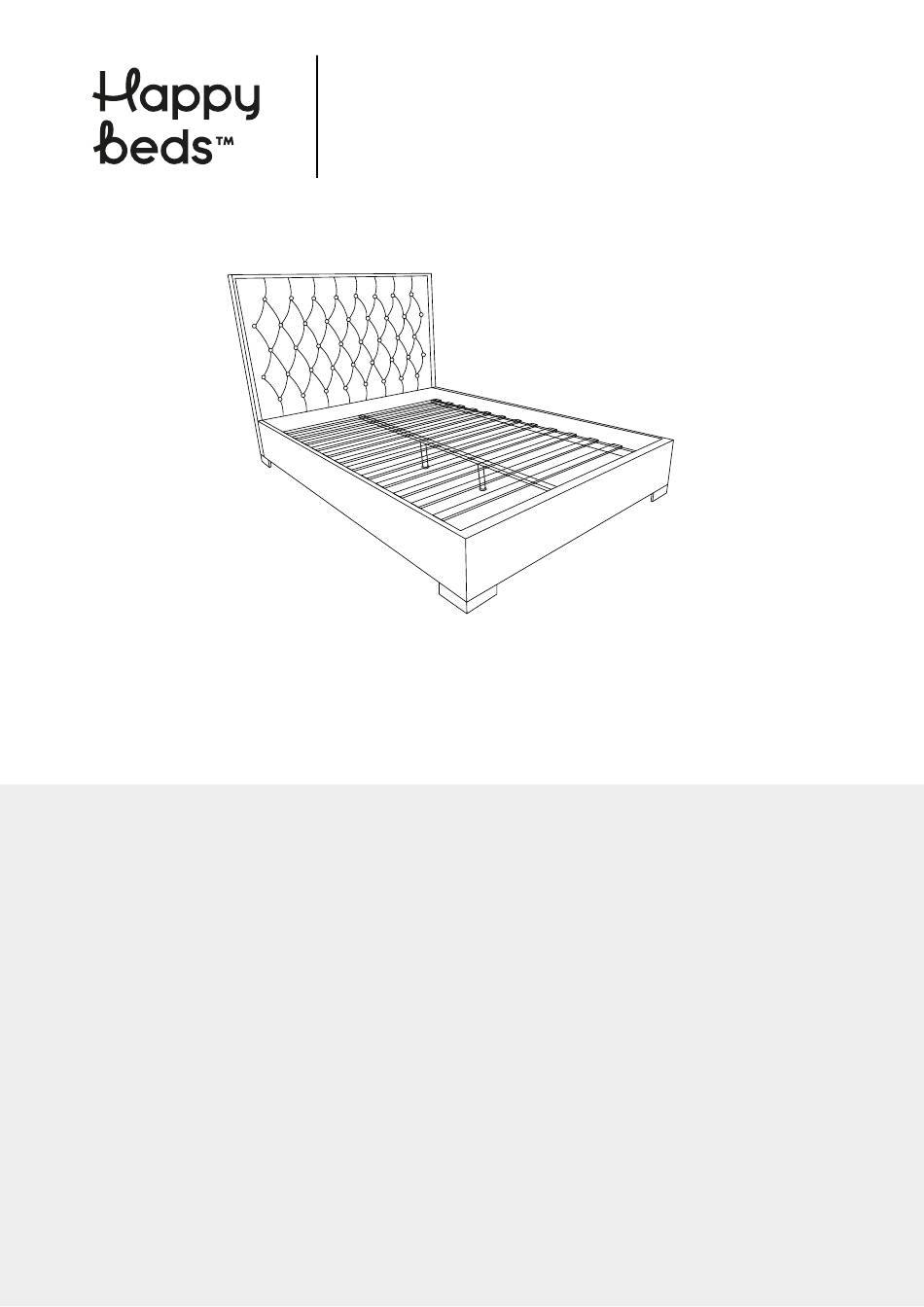

Chelsea Velvet Bed -
4ft6 Double
Assembly Instructions
.
www.happybeds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chelsea Velvet Bed 4ft6 Double and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Happy Beds Chelsea Velvet Bed 4ft6 Double

Summary of Contents for Happy Beds Chelsea Velvet Bed 4ft6 Double

  • Page 1 Chelsea Velvet Bed - 4ft6 Double Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings. Assemble the product as close to its intended final location/room as possible.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 Box 2 Box 1 Slats (x1) Headboard (x1) O. M4 Allen Key (x1) B. Side Rails (x2) Centre Support Rail (x1) Q.SCREW (x6) N. M6x16mm Bolts (x8) Support Leg (x2) Footboard (x1) G. Legs (x4) H. M8x30mm Bolts (x12) Flat Washer (x8) Nuts (x4) M5 Allen Key (x1) Spring Washer (x8)
  • Page 4 Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on Page 3. Should you identify any missing components, please contact the retailer you purchased the bed from. Step 2 (D).
  • Page 5 Step 3 Next, attach 2x Support Leg ( ) to 1x Centre Support Rail ( ) using 4x M8x40mm Bolts ( ), Allen Key ( ), 4x Nuts ( ) and Spanner ( M8x40mm(x4) M5 Allen key Spanner Nuts(x4) Step 4 Attach 2 x Side rails (B) to 1 x Headboard (A) and 1 x Footboard (D) using 8 x M8x30mm Bolt (H), 8 x Spring Washer (K), 8 x Flat Washer (J) and 1 x M5 Allen Key (L).
  • Page 6 Step 5 Attach the slat (7) to the bed. Attach the slat (F) to the side rail (B) with screw (Q) as shown. SCREW (x6) Page 6 of 6...

  • Page 7: General Care And Maintenance

    Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
