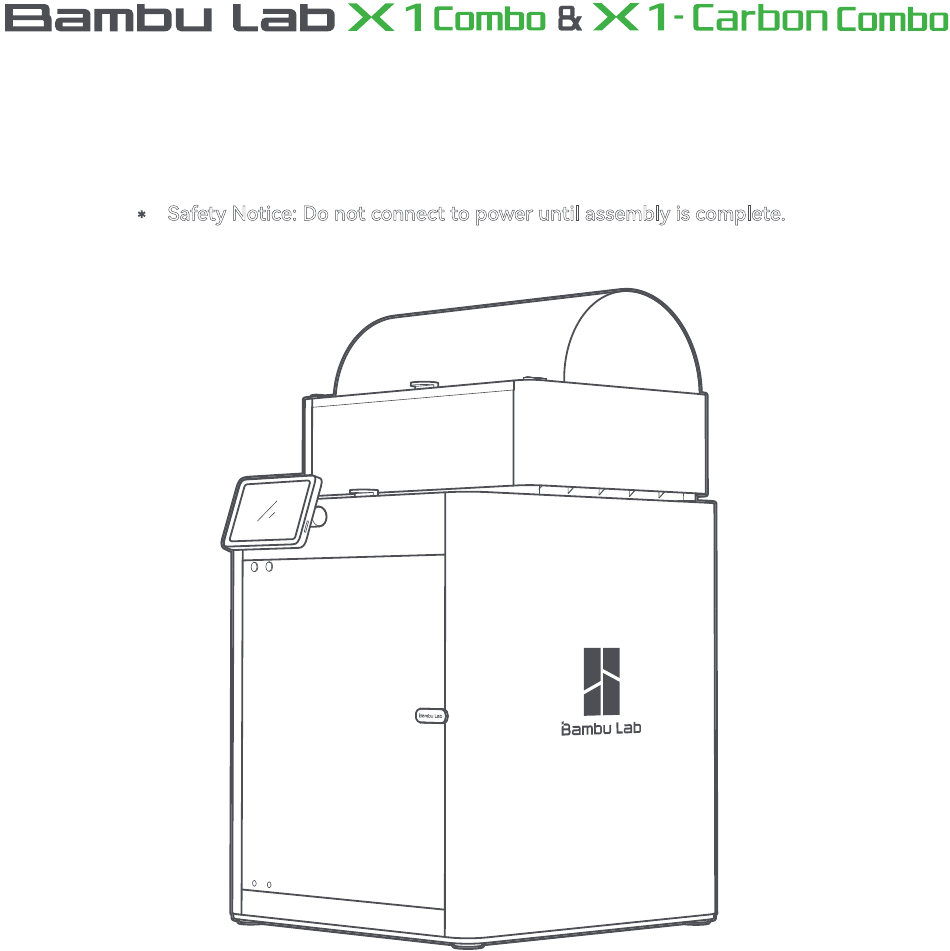

- Page 1 3D Printer Quick Start Please review the entire guide before operating the printer. Safety Notice: Do not connect to power until assembly is complete.
- Page 2 *Warning: The AMS supports spools with a width of 50-68mm. When operating the AMS, we recommend using Bambu Filament, which has been thoroughly tested to work with the AMS. Please make sure to avoid using soft materials like TPU or damp PVA, as they can get stuck in the AMS, and please avoid using cardboard spools as the spool may slip.
-
Page 3: Component Introduction
Component Introduction Air Filter Tool Head Bambu Micro Lidar Pause Touch Screen Screen Sleep/Wake Glass Cover Plate Chamber Camera (X1-Carbon Only) PTFE Tube Belt Tensioner Bambu Bus Cable 4-Pin Build Plate Auxiliary Part Excess Chute Cooling Fan (X1-Carbon Only) Power Socket... - Page 4 Buckle Bambu Bus Cable 6-Pin Interface Filament Outlet Desiccant Filament Inlet...
-
Page 5: Accessory Specification
Accessory Specification Touch Screen Spool Holder 250g Filament (x3) Spare Hot End Nozzle Wiping (x2) Power Cord Spare Filament Bambu Bus Cable-6Pin Allen Key H1.5 Unclogging Pin Cutter (x2) Allen Key H2 Tool Spare Sheet for Flexible Build Plate Bambu Bus Cable-4Pin Bambu Scraper Glue Stick for Bambu Cool Plate... - Page 6 AMS & Tool Head Unlock （Allen Key H2） Take out the accessory box. Use Allen Key H2 Take out the AMS by sliding it out through to remove the screws as pictured. the top. *We recommend using the short end of the Allen Key to unlock the screws more easily.
- Page 7 （Allen Key H2） Remove the four screws as the arrows indicate. Take out the AMS cushioning. Remove the carboard from the tool head. Romove the foam from the excess chute.
- Page 8 AMS Assembly *The cable-6pin can be plugged into either interface. 550mm PTFE Tube 370mm PTFE Tube Bambu Bus Cable-4Pin Bambu Bus Cable-6Pin...
- Page 9 Spool Holder Assembly *The spool holder is only necessary when printing with filaments that are not supported for use with the AMS. （Allen Key H2） Remove the screw as pictured with an Secure the spool holder with two screws from the accessory box.
-
Page 10: Screen Installation
Screen Installation Pull the Flexible Printed Circuit（FPC) out Insert the FPC into the port by pressing the about 50mm. terminal as pictured. Insert the screen back to the slot on the printer, then lock it by pushing it to the left. - Page 11 Hot Bed Unlock （Allen Key H2） Remove the three screws with an Allen Key H2 to unlock the hot bed. Connect the printer to power. Follow the instructions on the screen to complete the initial calibration. DO NOT remove the protective foam from beneath the hot bed until after the initial calibration is complete.
-
Page 12: First Print
First Print Apply a thin layer of glue on the build plate. Place at least one spool of Bambu Filament Press " " - "internal". Select a file to start the first print. into the AMS. Turn on the power to start the *We recommend using one of the pre-loaded files as a printer and the AMS. -
Page 13: Specification
Specification Specification Item X1-Carbon Printing Technology Fused Deposition Modeling Build Volume(W*D*H) 256*256*256 mm Chassis Steel Body Shell Aluminum & Glass Plastic & Glass Hot End All-Metal Extruder Gears Hardened Steel Steel Nozzle Hardened Steel Stainless Steel Max Hot End Temperature Tool Head Nozzle Diameter (Included) 0.4 mm... - Page 14 Dimensions 389*389*457mm Physical Dimensions Net Weight 14.13kg 13.18kg Voltage 100-240 VAC, 50/60 Hz Electrical Requirements Max Power 1000W@220V, 350W@110V Display 5-inch 1280*720 Touch Screen Connectivity Wi-Fi,Bambu Bus Storage 4GB EMMC and Micro SD Card Reader Electronics Control Interface Touch Screen, APP, PC Application Motion Controller Dual-Core Cortex M4 Application Processor...
- Page 15 Please visit Bambu Lab Wiki to learn more setup and maintetance tutorials. https://wiki.bambulab.com/en/home If you need support, please try either of the two approaches: Approach 1: Creat a support ticket on Official Website Approach 2: Create a support ticket on Bambu Handy App...
- Page 16 Enjoy! www.bambulab.com...
