FIGURE C-8
5. Replace the left and right end caps to hide the front mounting screws.
The end caps snap onto the front bezel of the tray.
6. At the back of the tray, make a final adjustment to the rail lengths to align the
back mounting points (
7. At the back of the tray, use the flathead screwdriver to install and tighten two
6-32 flat-head screws (one per side) through the back mounting points
(

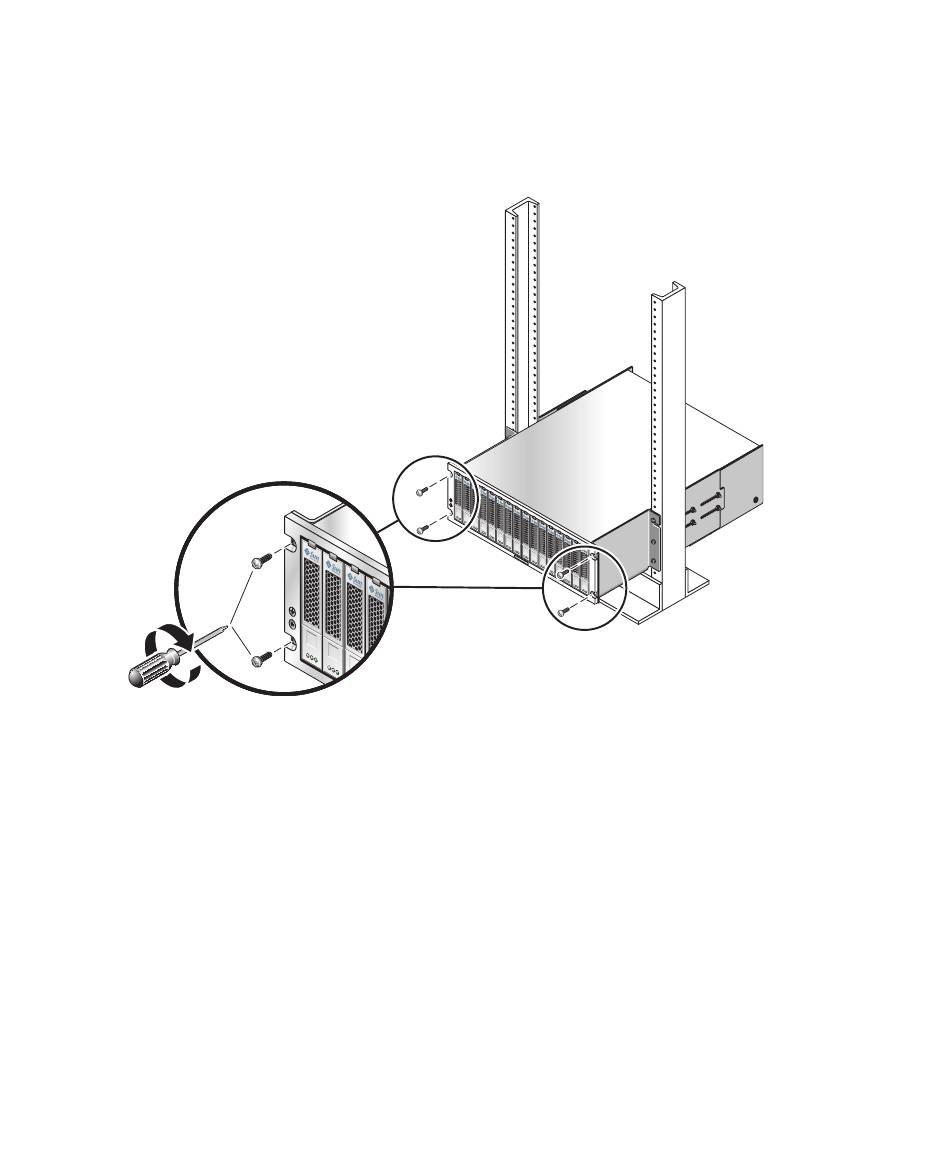

FIGURE C-9
58 Sun StorageTek 6140 Array Release Notes • November 2008
Securing the Tray to the Front of the Rack
1
2
3
4
FIGURE C-9
).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
) on the rail and array.
