DC Power Connector Cable and Source Wires

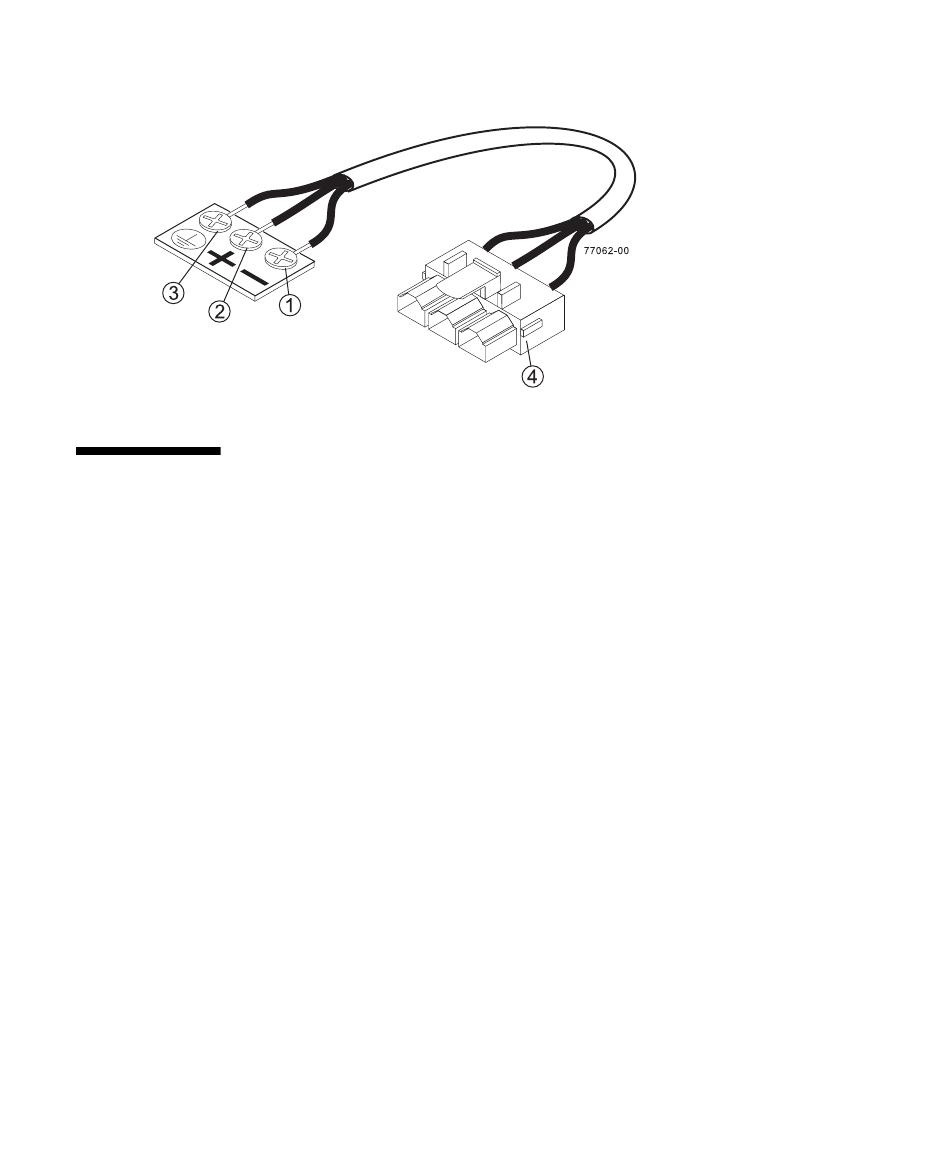

FIGURE B-2

Site Preparation for DC Power

This section updates the Sun StorageTek 6140 Array Site Preparation Guide with
information regarding site power and wiring, power requirements (–48 VDC), and
power cord routing instructions for the Sun StorageTek 6140 array:
"Site Wiring and Power" on page 41
■
"DC Power Input" on page 42
■
"DC Power Connector Cables and Source Wires" on page 43
■

Site Wiring and Power

The Sun StorageTek 6140 array uses wide-ranging, redundant power supplies that
automatically accommodate voltages to the AC power source or the optional –48-
VDC power source.
The power supplies meet standard voltage requirements for both North American
(USA and Canada) operation and worldwide (except USA and Canada) operation.
The power supplies use standard industrial wiring with line-to-neutral or line-to-
line power connections.
1. Supply (Negative), Brown
Wire, –48 VDC
2. Return (Positive), Blue
Wire
3. Ground, Green/Yellow
Wire
4. DC Power Connector
Chapter B Using DC Power 41
