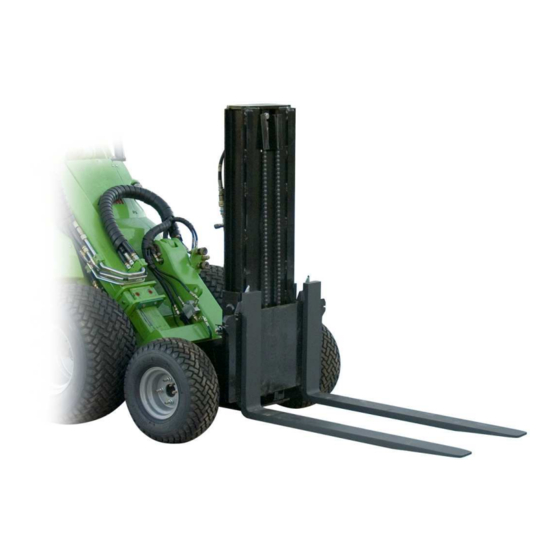

Forklift mast
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's manual for Attachment
Operator's
Operator's
Operator's
Product number:
Please read this manual carefully before using the equipment, and follow
all instructions.
Keep this manual for later reference.
manual for Attachment
manual for Attachment
manual for Attachment
Forklift Mast
400-700-series loaders:
Forklift Mast 2011 2
A32915

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A32915 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVANT A32915

Summary of Contents for AVANT A32915

  • Page 1 Operator’s manual for Attachment manual for Attachment Operator’s Operator’s manual for Attachment manual for Attachment Forklift Mast Product number: 400-700-series loaders: A32915 Please read this manual carefully before using the equipment, and follow all instructions. Keep this manual for later reference.

  • Page 2: Table Of Contents

    Forklift Mast 2011 2 CONTENTS 1. Foreword..........................3 2. Designed purpose of use ......................3 3. Safety instructions for the pallet forklift mast................3 4. Forklift mast specifications .......................4 5. Assembly of the forklift mast.....................5 ................5 5.1. Mounting the mounting kit to the loader ................6 5.2.

  • Page 3: Foreword

    The mast is equipped with rigid, foam filled tyres, which gives good all terrain transporting capabilities. Thanks to the quick attach system connecting to and from the Avant is quick and easy. Forklift mast can be mounted only on machines that are equipped with telescopic boom. The forklift mast must not be used for lifting persons and it is prohibited to use the attachment to lift any kind of access platform.

  • Page 4: Forklift Mast Specifications

    4(12) • Always keep the tyres of the forklift mast on the ground or close to the ground surface. When handling loads with the forklift mast, its tyres must be on the ground. • Never leave the driver’s seat when the forks have been elevated. Lower the forks on ground and keep the tyres of the mast on the ground.

  • Page 5: Assembly Of The Forklift Mast

    Maximum working load: 1500 kg A46771 A46772 Suitable AVANT loader*: 400-700 The forklift mast is equipped with a hose burst valve. *The forklift mast can only be used with loaders equipped with a telescopic boom 5. Assembly of the forklift mast As the forklift mast is delivered, for easier transportation the forks and the assembly kit are separated.

  • Page 6: Assembling And Mounting The Forklift Mast

    These instructions are applicable to mounting the attachment to the boom quick attach plate of AVANT loaders that have standard quick attach locking. If your machine is equipped with a hydraulic locking system, refer to the relevant manuals for additional mounting and safety instructions.
  • Page 7 7(12) Never move or raise an attachment that has not been locked. Step 1: • Lift the quick attach plate locking pin / locking pins up and turn them backwards into the slot so that they are locked in the upper position. •...

  • Page 8: Mounting The Forks

    8(12) Step 4: Mounting the supporting bracket • Shut down the loader engine. Adjust the supporting bracket to its longest position. Mount the bracket to the forklift mast and secure it with the cotter pin. • Mount the other end of the bracket to the loader. Do not use your fingers to check the alignment and watch out not to tip over the forklift mast.

  • Page 9: Taking The Forklift Mast Off From The Loader And Storage Position

    9(12) Keep the fittings as clean as possible; use the protective caps for the quick couplings on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Note that the protective caps on the loader and the attachment can be fastened to each other during operation to reduce the accumulation of dirt.

  • Page 10: Lifting And Lowering Of The Forklift Mast

    10(12) Ensure that there are no other persons at the operating area. Never go under an elevated load, or to the area between the forklift mast and the loader boom, or in directly in the front of the equipment. Also do not let others to enter the hazardous areas.

  • Page 11: Driving With The Forklift Mast

    11(12) 6.2. Driving with the forklift mast When handling heavy loads, for the best traction and manoeuvreability, it must be made sure that enough weight is applied on the loader wheels. The amount of weight applied on the loader wheels can be influenced with the loader boom.

  • Page 12: Maintenance And Service

    If there are signs of leaking, to check the component, hold up a piece of cardboard in the area where a leak is suspected. Finding any of these faults means that the hydraulic hose or component in question must be replaced. Spare parts are available from your nearest AVANT retailer or service point.

  • Page 13: Warranty Terms

    13(12) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) for attachment from the date of purchase. The warranty covers repair costs as follows: • Work costs are covered, if the repair is not performed at the factory.
  • Page 14 SFS-EN ISO 12100, SFS-EN ISO 4413 Kuvaus: Avant-kuormainten kanssa käytettävä trukkimasto Beskrivning: Truckstativ för användning med Avant-lastare. Description: Forklift mast for use with Avant loaders. Beschreibung: Stapelmast für die Verwendung mit Avant Radlarer. Mallit / Modeller / Models / Modellen: Avant 400-700 series...
