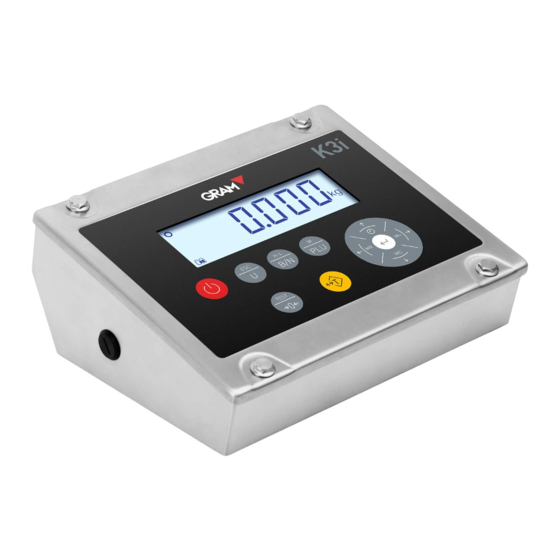

- Page 1 K3iX QUICK START GUIDE PACKAGING 1 x 220 V/12 VDC 1A mains adapter. Accompanying documentation 1 x K3iX weight indicator...
-
Page 2: Keyboard & Display
KEYBOARD & DISPLAY LCD DISPLAY Displays the weight onto the load receptor. Unit of measurement in which the weight is indicated. Stable weight reading: There is a weight on the platform that is not fluctuating. Intermittent or switched off to indicate that there is movement in the scale. - Page 3 KEYBOARD & DISPLAY On / Off. Press once to switch the indicator on. Hold the key down for 2 seconds to switch off the terminal. Esc / Menu. It enters the menu settings mode. When already into the settings menu mode, escapes to the previous menu option or back to the weighing mode.
-
Page 4: Factory Setting
SCALE SETTINGS – MENU OPTIONS For access the settings menu press the Esc / M key. ¿ validate the current setting / moves to the next digit when editing a numeric value ¿¿ validate a manually input value. ESC Returns to the menu’s previous level without making any change. ß... -
Page 5: Factory Settings
SCALE SETTINGS – MENU OPTIONS ¿ LEUEL ¿ FiL-1 Filter level … Fil-8 FILt ¯ ½ ¿ On « OFF • Additional filter for weighing livestock LIVES ½ ¯ Motion filter(ON/OFF) ½ ¿ On « OFF • Not-F ½... -
Page 6: Scale Calibration
SCALE CALIBRATION At the SCAlE menu you will find the settings needed to define and adjust the measurement scale of the instrument: Measurement unit, maximal capacity, scale interval (division), decimal point, as well as different options related to the operation of the auto-zero device. Access to these configuration options is reserved for technical personnel and is protected by a keyword to avoid accidental changes that would cause the instrument to malfunction. - Page 7 TABLE OF GEOGRAPHICAL ADJUSTMENT VALUES Elevation above sea level in metres 1300 1625 1950 2275 2600 2925 3250 Geographical latitude 1300 1625 1950 2275 2600 2925 3250 3575 in the northern or Elevation above sea level in feet southern hemisphere in degrees and 1060 2130...
- Page 8 PIN 6 MORE INFORMATION Download the full manual from the following link: ttps://gram-group.com/wp-content/uploads/2022/02/MU_K3X_V6_001_ENG.pdf Gram Precision S.L. Travesía Industrial, 11 · 08907 Hospitalet de Llobregat · Barcelona (Spain) Tel. +34 902 208 000 · +34 93 300 33 32 Fax +34 93 300 66 98 gram.es...
