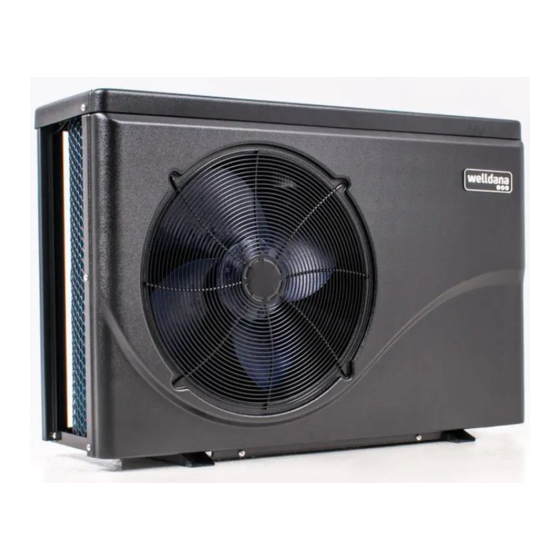

- Page 1 INSTALLATION AND USER MANUAL Thank you for choosing Aqua inverter heat pump This manual provides you necessary information for optimal use and maintenance, please read it carefully and keep it for subsequent use.
-
Page 3: Table Of Contents
Summary For users ………………………………………………………………………………. P.1-P.6 1. General information ....................- 1 - 1.1. Contents ........................- 1 - 1.2. Operating conditions and range ................- 1 - 1.3. Advantages of different modes ................- 1 - 1.4. Kind reminder ......................- 2 - 2. -
Page 4: For Users
For users 1. General information: 1.1. Contents: After unpacking, please check if you have all the following components. 1.2. Operating conditions and range: Items Range Air temp -7℃～43℃ Operating range Water temp 0℃～35℃ Temp. setting heating 18℃-35℃ ℃～ ℃ The heat pump will have ideal performance in the operation range Air 15 1.3. -
Page 5: Kind Reminder
For users 1.4. Kind reminder: This heat pump has Power-off memory function. When the power is recovered, the heat pump will restart automatically. 1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other flammable or turbid liquid. - Page 6 For users 1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and leakage of electricity, switch off the main power immediately and contact your local dealer. Don’t try to repair the heat pump by yourselves. 1.4.7. The main power switch should be out of the reach of Children. 1.4.8.
-
Page 7: Operations
For users 2. Operations 2.1. Notice before using ① The user is advised to start the water pump before the heat pump, and turn off the ② Check firstly for any water leakage of piping connection, then power on, press the heat pump before the water pump for long life circle. -
Page 8: Daily Maintenance And Winterizing
For users 2.2.1. Mode selections ① ② Press the will be light as standard when you turn on the heat pump. button to enter the Silence mode, the will be light. Press the button again to exit and enter the SMART mode. 2.2.2. -
Page 9: Technical Specification
For users 3. Technical specification Model 34-180139 34-180140 Advised pool volume (m 25-50 30-60 Working air temp (℃) -7~43 Performance Condition: Air 26°C, Water 26°C, Humidity 80% Heating capacity (kW) 11.3~2.8 13.3~3.4 Heating capacity (kW) in silence 9.0~2.8 10.4~3.4 mode C.O.P... -
Page 10: For Installers And Professionals
For installers and professionals 1. Transportation 1.1. When storing or moving the heat pump, the heat pump should be at the upright position. 1.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the heat pump will be damaged. 2. -
Page 11: Installation Instructions
For installers and professionals 2.1.2．In order to guarantee the heating efficiency, the water pipe length should be ≤10m between the pool and the heat pump. 2.2. Installation instruction 2.2.1. Location and size The heat pump should be installed in a place with good ventilation - 8 -... - Page 12 For installers and professionals BE机 Size(mm) Model 34-180139 315 590 312 340 315 590 312 340 34-180140 ※ Above data is subject to modification without notice. ① The frame must be fixed by bolts (M10) to concrete foundation or brackets. The 2.2.2.
- Page 13 Note: For your safe use in winter, it’s strongly recommended to equip heating priority function. For the detailed wiring diagram, please refer to Appendix 1. 2．Options for protecting devices and cable specification MODEL 34-180139 34-180140 Rated Current A Breaker Rated Residual...
-
Page 14: Trial After Installation
For installers and professionals 2.3. Trial after installation Please check all the wirings carefully before turning on the heat pump. ① Check installation of the whole heat pump and the pipe connections according to the 2.3.1．Inspection before use ② Check the electric wiring according to the electrical wiring diagram and earthing pipe connecting drawing;... -
Page 15: Trouble Shooting For Common Faults
For installers and professionals 2.4.2 Winterizing In winter season when you don’t swim, please cut off power supply and drain water out of the heat pump. When using the heat pump under 0℃, make sure that the water pump is always running. -
Page 16: Failure Code
For installers and professionals 4. Failure code Display Failure description High gas pressure protection Low gas pressure protection No water flow protection (not failure) 3 phase sequence protection (only for three phase) Outdoor power supply abnormity protection Excessive temp. difference between inlet and outlet water(Insufficient water flow protection) Protection of low outlet water temperature Protection of high exhaust temperature... -
Page 17: Appendix 1: Heating Priority Wiring Diagram
For installers and professionals Appendix 1: Heating priority wiring diagram (Optional) For water pump: Voltage 230V, Capacity ≤500W For water pump: Voltage 230V, Capacity ＞500W Breaker/fuse Breaker/fuse Power Cord (Customer prepare) (Customer prepare) Power Cord Earthing Earthing Power Supply Power Supply 230V~/50Hz 230V~/50Hz Water Pump... - Page 18 For installers and professionals For water pump: Voltage 400V Breaker/fuse (Customer prepare) Power Cord Power Supply 400V~/50Hz Earthing Water Pump Water Pump Breaker/fuse Contactor (Customer prepare) coil voltage: 400V Power Supply 400V~/50Hz Earthing Parallel connection with filtration clock A: Water pump timer B: Water pump wiring of Heat Pump Note: The installer should connect A parallel with B (as above picture).
- Page 19 For installers and professionals Note: - 16 -...
- Page 20 - 17 -...
