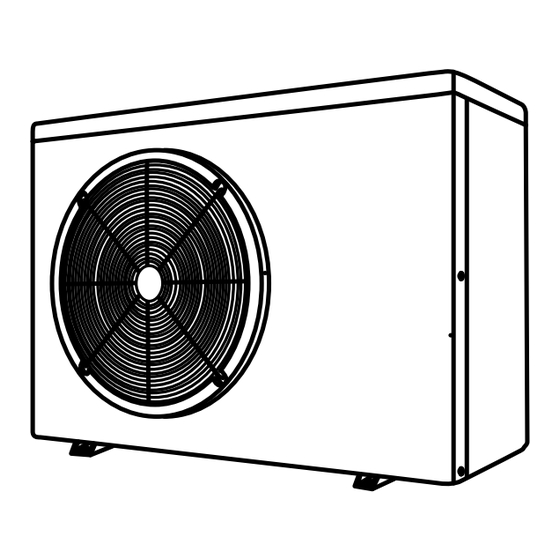

- Page 1 INSTALLATION AND USER MANUAL DK-SE-DE-EN Thank you for choosing Inverter heat pump. This manual provides you necessary information for optimal use and maintenance, please read it carefully and keep it for subsequent use.
-
Page 2: Table Of Contents
Summary For users ………………………………………………………………………………. P.1-P.7 1. General information: ..........................- 3 - 1.1. Contents: ..........................- 3 - 1.2. Operating conditions and range: ..................- 3 - 1.3. Advantages of different modes: .................... - 3 - 1.4. Kind reminder: ......................... - 4 - 2. -
Page 3: For Users
For users Warning： g. Please read the following tips before installation, use and maintenance. h. Installation, removal and maintenance must be carried out by Professional personional in accordance with the instructions. Gas leakage test must be done before and after installation. 1. - Page 4 For users Installation must be stopped if any gas leakage, and the unit must be returned to professional maintenance center. 3. Transportation & Storage Sealing is not allowed during transportation Transporting goods at a constant speed is needed to avoid sudden acceleration or sudden braking, so as to reduce the collision of goods.
-
Page 5: General Information
For users 1. General information: 1.1. Contents: After unpacking, please check if you have all the following components. 1.2. Operating conditions and range: ITEMS RANGE -7℃～43℃ Operating range Air temp 18℃～40℃ Temp. setting heating The heat pump will have ideal performance in the operation range Air 15℃～25℃ 1.3. -
Page 6: Kind Reminder
For users 1.4. Kind reminder: This heat pump has Power-off memory function. When the power is recovered, the heat pump will restart automatically. 1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other flammable or turbid liquid. - Page 7 For users 1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and leakage of electricity, switch off the main power immediately and contact your local dealer. Don’t try to repair the heat pump by yourselves. 1.4.7. The main power switch should be out of the reach of Children. 1.4.8.
-
Page 8: Operations
For users 2. Operations 2.1. Notice before using ① For longer service life, please ensure water pump on before heat pump on, and water pump off after heat pump off. ② Ensure no water leakage on piping system, then unlock screen and press to power on heat pump. - Page 9 For users ① Screen lock: a. If no operation in 30 seconds, screen will be locked. b. When HP is off, screen will be dark and “0%” will be displayed. c. Press for 3 seconds to lock screen and it will be dark ②...
-
Page 10: Daily Maintenance And Winterizing
For users 3.Smart/Silence mode selection: ① Smart mode as default will be activated when heat pump is on, and screen shows ② Press to enter Silence mode, and screen shows (Suggestion: select Smart mode for initial heating.) 4.Defrosting a. Auto Defrosting: When heat pump is defrosting, will be flashing. -
Page 11: Technical Specification
For users 3. Technical specification Model 34-180160 34-180161 34-180162 34-180163 34-180164 34-180165 34-180166 Advised pool volume 20~40 25~45 30~55 35~65 40~75 65~120 90~160 Working air temp (℃) -7~43 Performance Condition: Air 26°C, Water 26°C, Humidity 80% Heating capacity (kW) 10.3 12.8... -
Page 12: For Installers And Professionals
For installers and professionals 1. Transportation 1.1. When storing or moving the heat pump, the heat pump should be at the upright position. 1.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the heat pump will be damaged. 2. -
Page 13: Installation Instruction
For installers and professionals 2.2. Installation instruction 2.2.1. Location and size The heat pump should be installed in a place with good ventilation * MINIMUM DISTANCE Filter Water switch Water processor - 11 -... - Page 14 For installers and professionals UNIT=MM 34-180160 34-180161 34-180162 34-180163 34-180164 34-180165 1092 34-180166 1161 ※ Above data is subject to modification without notice. 2.2.2. Heat pump installation. ① The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid;...
- Page 15 For your safe use in winter, it’s strongly recommended to equip heating priority function. For the detailed wiring diagram, please refer to Appendix 1. 2．Options for protecting devices and cable specification MODEL 34-180160 34-180161 34-180162 34-180163 34-180164 34-180165 34-180166 Rated Current 10.5 12.0 14.5 16.5...
-
Page 16: Trial After Installation
For installers and professionals 2.3. Trial after installation Please check all the wirings carefully before turning on the heat pump. 2.3.1．Inspection before use ① Check installation of the whole heat pump and the pipe connections according to the pipe connecting drawing; Check the electric wiring according to the electrical wiring diagram and earthing ②... -
Page 17: Trouble Shooting For Common Faults
For installers and professionals 2.4.2 Winterizing In winter season when you don’t swim, please cut off power supply and drain water out of the heat pump. When using the heat pump under 2℃, make sure there is always water flow. Important: Unscrew the water union of inlet pipe to let the water flow out. -
Page 18: Failure Code
For installers and professionals 4. Failure code DISPLAY NOT FAILURE DESCRIPTION No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder DISPLAY FAILURE DESCRIPTION High pressure protection... - Page 19 For installers and professionals Appendix 1: Heating priority wiring diagram (Optional) For water pump: Voltage 230V, Capacity ≤500W For water pump: Voltage 230V, Capacity ＞500W Breaker/fuse Breaker/fuse (Customer prepare) (Customer prepare) Power Cord Power Cord Earthing Earthing Power Supply Power Supply 230V~/50Hz 230V~/50Hz Water Pump...
- Page 20 For installers and professionals For water pump: Voltage 400V Breaker/fuse (Customer prepare) Power Cord Power Supply 400V~/50Hz Earthing Water Pump Water Pump Breaker/fuse Contactor (Customer prepare) coil voltage: 400V Power Supply 400V~/50Hz Earthing Parallel connection with filtration clock A: Water pump timer B: Water pump wiring of Heat Pump Note: The installer should connect A parallel with B (as above picture).
-
Page 21: Wifi Setting
For installers and professionals 5. Wifi setting 7) APP Download Android mobile please download from iphone please download from 8) Account registration c) Registration by Cell phone number/Email - 19 -... - Page 22 For installers and professionals d) Cell phone number registration 9) Create family Please set family name and choose the room of device - 20 -...
- Page 23 For installers and professionals 10) APP Binding Please make sure your cell phone has connected the Wifi e) Wifi connection: Press for 3 seconds after screen unlock, will be flashing to enter Wifi binding program. Click "Add device", follow indication to finish binding. display on the screen once Wifi connection success.
- Page 24 For installers and professionals 11) Operation For heat pump with Heating function only. More share devices Indicate the status of Heating Heating capacity percentage Select ℃/℉ The current swimming pool water temperature The setting temperature Timer Select Smart/ Silence Mode On/Off 12) Share devices to your family members After binding, if your family members also want to control the device.
- Page 25 For installers and professionals Then your family members can log in as below: - 23 -...
- Page 26 For installers and professionals Notice: 1. The weather forecast is just for reference. 2. APP is subject to updating without notice. - 24 -...
