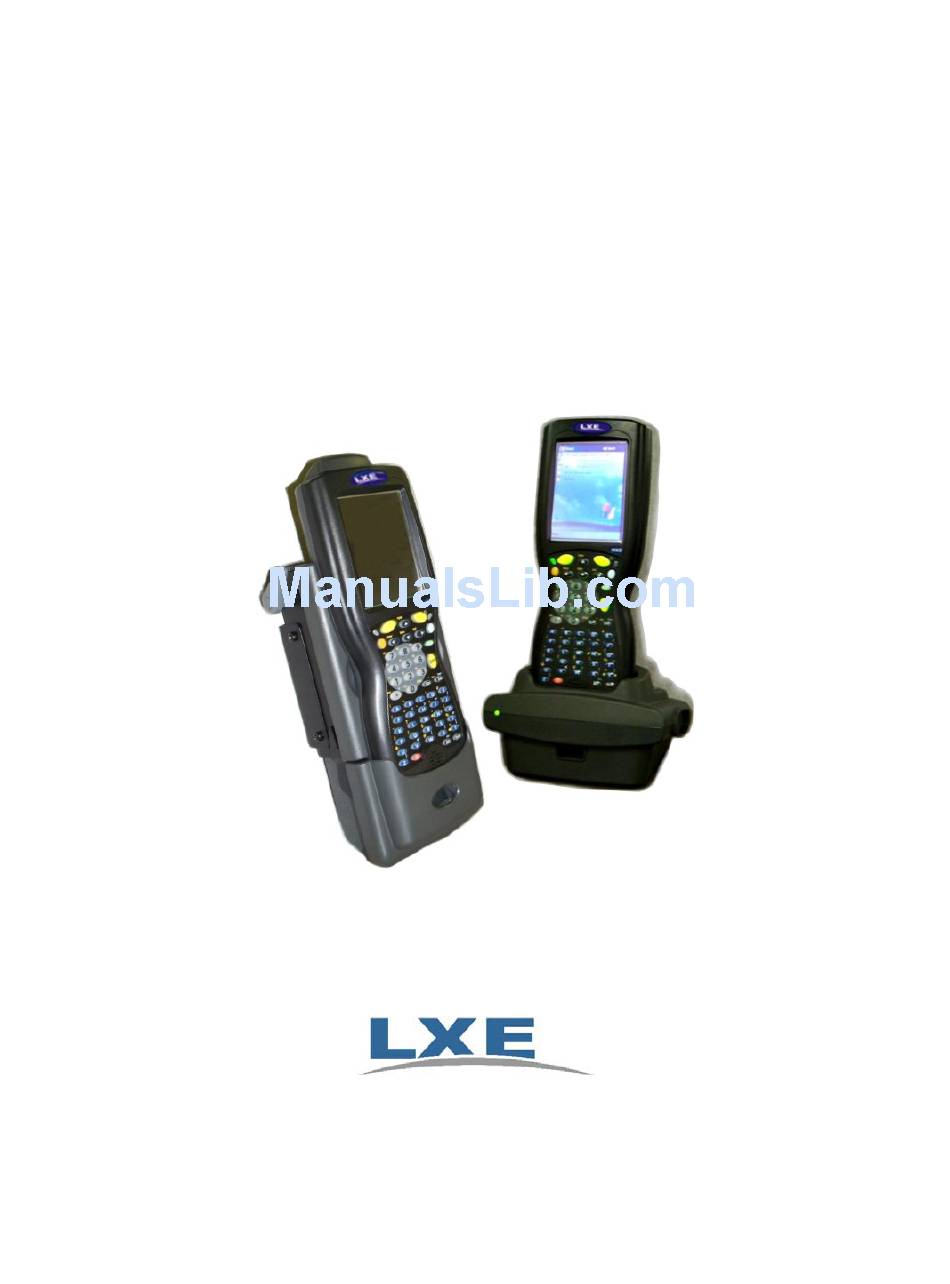

- Page 1 MX5 Cradle Reference Guide Copyright © November 2006 by LXE Inc. All Rights Reserved E-EQ-MX5DKRG-F...
-
Page 2: Revision Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information contained herein. Further, LXE Incorporated, reserves the right to revise this document and to make changes to it from time to time without any obligation to notify any person or organization of such revision or changes. -
Page 3: Table Of Contents
Step 3: Connect Power Supply to Vehicle Cradle ...18 Cradle Power Connector Port ...19 RS-232 Connector on Vehicle Cradles...20 Technical Specifications – Vehicle Cradle...20 Tethered Scanners and the Vehicle Cradle ... 21 Maintenance ... 22 Desktop Cradles...22 Vehicle Cradles...22 E-EQ-MX5DKRG-F Table of Contents MX5 Cradle Reference Guide... - Page 4 Figure 20 Cradle Power Connector Port ...19 Figure 21 Power Connector Pinout...19 Figure 22 Cradle RS-232 Connector and Pinout ...20 Figure 23 US Fuse Replacement...23 Figure 24 World Wide Fuse Replacement...24 MX5 Cradle Reference Guide OTICES AND AFETY NFORMATION Table of Contents...
-
Page 5: Mx5 Cradles
The desktop cradles can charge an extra main battery at the same time. The MX5 can be either on or in suspend mode while in the cradles. COM port and power cables are available from LXE®. -
Page 6: Identify Your Device
Identify Your Device At the front bottom of the MX5 is a label indicating the operating system resident on the mobile device. This document is one in a series covering the MX5 family of computers: Label – Windows CE .NET •... -
Page 7: Quick Start
Quick Start Quick Start Review “Identify your Device” then remove cables from the base of the MX5 before inserting the mobile device in a cradle’s docking bay. Desktop Cradle 1. Either install the Rubber Feet on the desktop cradle OR bolt the desktop cradle to a flat surface. -
Page 8: Desktop Cradle
The docking connector on the Enhanced Ethernet Desktop cradle accepts the MX5 running CE. NET only. Any MX5 main battery can be charged in the Battery Charging Slot. The MX5 running CE. NET can be placed in any docking cradle. -
Page 9: Mounting The Desktop Cradle
There are two methods for mounting the desktop cradle – either free-standing or securely fastened to a suitable flat protected surface. LXE recommends a horizontal surface out of the way of accidental knocks, bumps or other shocks to the MX5 and the cradles. -
Page 10: Attach The Power Connector To The Cradle
The MX5 is inserted into the charging pocket with the keypad facing forward. Press down until the spring latch connects with the base of the MX5, holding it securely in the cradle. Remove the MX5 from the cradle by pulling it straight up and out of the charging pocket. MX5 Cradle Reference Guide... -
Page 11: Battery Charging In A Desktop Powered Cradle
The charging LED indicates the charge condition for batteries in the cradle only. When a spare battery is placed in the Battery Charging Slot and there is no MX5 in the cradle, a few seconds will pass before the charging indicator starts to blink. -
Page 12: Vehicle Mount Cradle
This cradle is specifically designed for vehicle mount applications. The cradle restrains the MX5. The MX5 is inserted into the cradle by placing the base of the unit in the charging/communication pocket and then firmly pressing the unit backwards until the latches click into the slots in the back of the MX5. -
Page 13: Figure 8 Vehicle Mount Cradle - Back
Vehicle Mount Cradle E-EQ-MX5DKRG-F Figure 8 Vehicle Mount Cradle – Back MX5 Release Levers Mounting Plate RS-232 COM port Power Connector Port MX5 Cradle Reference Guide... -
Page 14: Vehicle Cradle Back Plate
Vehicle Mount Cradle Vehicle Cradle Back Plate Measurements are NOT to scale Figure 9 Mounting Plate Dimensions MX5 Cradle Reference Guide E-EQ-MX5DKRG-F... -
Page 15: Step 1 : Attach Cradle To Vehicle Mounted Device
Prerequisite: The vehicle must have a bracket mounting device pre-installed (not supplied by LXE) ready to accept the MX5 cradle. 1. There must be at least 2” clearance at the back of the vehicle cradle for the cables. Position the bracket to allow access to the ports on the back of the Vehicle Mount Cradle. -
Page 16: Step 2 : Connect Power Supply To Vehicle
Step 2 : Connect Power Supply to Vehicle Mounting hardware and tools are not supplied by LXE. The adapter should be mounted in an area in the vehicle where it: • Does not obstruct the vehicle operator's vision or safe vehicle operation. -
Page 17: Connecting 24V-72V Power Supply To Vehicle
Properly sized "crimp" type electrical terminals are an accepted method of termination. Wiring color codes for LXE supplied DC input power cabling: Figure 14 Vehicle Connection Wiring Color Codes 6. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot intervals, taking care not to overtighten and pinch conductors or penetrate outer cable jacket. -
Page 18: Vehicle 12V Bare Wire Adapter
This will prevent the connector from sliding out of it’s jack. Figure 15 Vehicle 12V Bare Wire Adapter Kit (Cigarette Lighter Adapter Not Mounting hardware and tools are not supplied by LXE. MX5 Cradle Reference Guide Shown) -
Page 19: Connecting 12V Power Adapter To Vehicle
Power LED until an audible click is heard. 8. The Power LED on the DC to DC Adapter illuminates when it is receiving power from the vehicle battery. E-EQ-MX5DKRG-F MX5 Cradle Reference Guide... -
Page 20: Cigarette Lighter Adapters
1. Power On LED illuminates when the cigarette lighter adapter is seated properly in the cigarette lighter receptacle. 2. Connect to Vehicle’s cockpit power supply (cigarette lighter). 3. Connect to MX5 Cradle Power port. MX5 Cradle Reference Guide Figure 17 US Vehicle Power Adapter... -
Page 21: World Wide Car And Truck Power Adapter
World Wide Car and Truck Power Adapter Part Number: MX5381PDAUTO12VWW 1. Connect to MX5 Cradle Power port. 2. Connect to Vehicle’s cockpit power supply (cigarette lighter). If using a Euro DIN4165 on- board power supply, remove the connector’s red cap first. -
Page 22: Step 3: Connect Power Supply To Vehicle Cradle
Figure 19 Connect Power Adapter Cable to the Vehicle Cradle 1. Connect the powered Adapter to the MX5 cradle by holding the MX5 power connector and squeezing the side latches to open them. This will allow the power connector to be pushed into the vehicle cradle power port securely. -
Page 23: Cradle Power Connector Port
The Power connector is located on the back of the vehicle cradle and on the bottom of the desktop cradle. The vehicle cradle is always powered from an approved cigarette plug accessory for vehicles. When powered, the cradle transfers external power to the MX5, which in turn, recharges the main battery. A powered cradle allows RS-232 communication. E-EQ-MX5DKRG-F... -
Page 24: Rs-232 Connector On Vehicle Cradles
Tethered scanners must be connected to powered vehicle cradles. The RS-232 connector is located on the back of the cradle. When the MX5 is properly docked and secured in the cradle by the Latches, serial communication is maintained through the RS-232 port. -
Page 25: Tethered Scanners And The Vehicle Cradle
The vehicle cradle must be powered by an alternate AC or DC power source to enable tethered scanner use. The tethered scanner must be connected to the DB9 port on the vehicle cradle and the MX5 must be configured as follows: Pocket PC CE. -
Page 26: Maintenance
Check the vehicle bracket fasteners and re-tighten if necessary. If the vehicle bracket and cradle connections become broken, loose or cracked, it must be taken out of service and replaced. Contact LXE Customer Service (see “Getting Help”). Regularly inspect the vehicle adapter for loose or missing parts. When not using the vehicle charger adapter, disconnect it from the cigarette lighter (or 12V) receptacle. -
Page 27: Car And Truck Adapter Fuse Replacement
The cigarette lighter adapter uses a 250V, 12A fuse that is user accessible and user replaceable. Should it need replacement, replace with same size, rating and type of fuse. Take the MX5 out of the vehicle cradle and disconnect the cigarette lighter adapter from the vehicle cradle. -
Page 28: World Wide Fuse Replacement
The cigarette lighter adapter uses a 250V, 10A fuse that is user accessible and user replaceable. Should it need replacement, replace with same size, rating and type of fuse. Take the MX5 out of the vehicle cradle and disconnect the cigarette lighter adapter from the vehicle cradle. -
Page 29: Getting Help
ServicePass website only. You can get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE.” This information is also available on the LXE website. -
Page 30: Accessories
Accessories Note: Items with a Green letter R in the first column are ROHS-compliant. Please contact your LXE representative when ordering ROHS-compliant items as the part number may have changed. Items without the letter R may have received ROHS-compliance after this guide was published. -
Page 31: Appendixa Regulatory Notices And Safety Information
Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about proper disposal, contact LXE through your local sales representative, or visit www lxe com. - Page 32 Regulatory Notices and Safety Information A/C Power Supply Safety Statement – MX5 Output Rated 12 VDC, 1.5 A. Optional A/C Power Supply: Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as stated at the top of this page.
-
Page 33: Vehicle Power Supply Connection Safety Statement
Danish – DK; English – US; Finnish – FI; French- - FR; German – DE; Greek – GR; Italian – IT; Norwegian – NO; Portuguese – PT; Spanish – ES; Swedish – SE; Turkish – TR. Updated 10/01/2001 E-EQ-MX5DKRG-F MX5 Cradle Reference Guide... -
Page 34: Revision History
Added power supply installation instruction. Updated Accessories list. Revision D, December 2004 Desktop Cradle – Added Enhanced Ethernet Desktop cradle. Notices – Added “Warning: Standard MX5 devices, MX5 cradles and MX5 multi-chargers are not approved for Hazardous Location use.” Revision E, September 2005 Entire Manual –...
