Installation Instruction Sheet

Introduction

The base plate, and the gasket underneath the base plate, on the MX7 may have to be upgraded

before the MX7 is docked in a cradle. In rare cases in which the MX7 will never be docked in an

MX7 cradle, the MX7 does not require a base plate upgrade.

• LXE MX7 with or without a handle, hand strap or protective boot.

• LXE MX7 Cradle, Vehicle mount and Desk mount.

• LXE MX7 Rubber Boot, upgraded, fits with the upgraded base plate (Part #161315 located

inside the rubber boot. Black boot – #161532. Yellow boot - #161533)

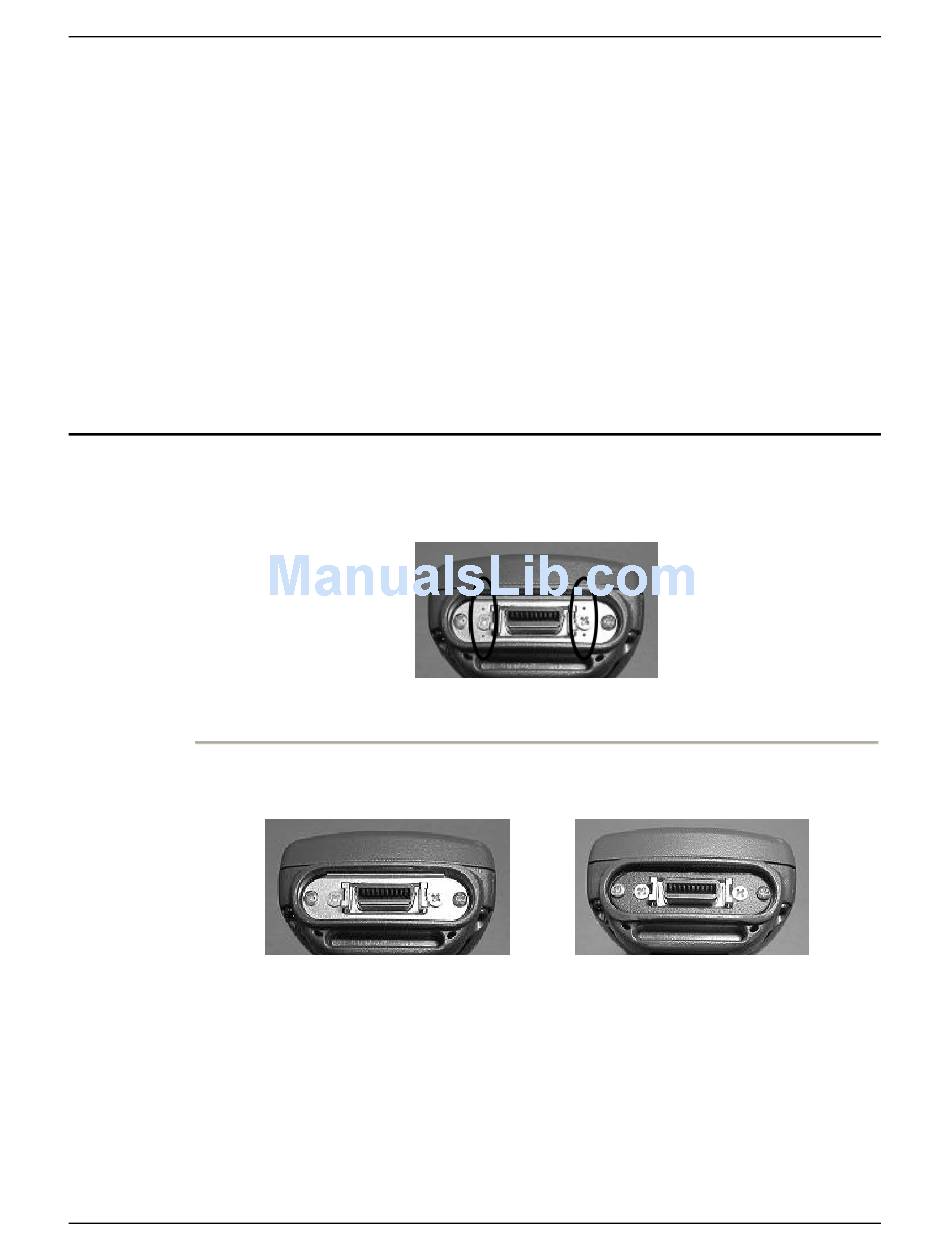

If your MX7 has a stainless steel base plate with a pinhole above and below the screws next to the

input/output port, similar to the picture shown below:

The MX7 can be docked in a cradle without requiring the base plate upgrade.

If your MX7 has a base plate that looks like either of these two pictures (and without the

pinholes):

The base plate must be upgraded with the contents of this kit before the MX7 is placed in a cradle.

See "Upgrade the Base Plate" on the following page for instruction.

MX7 Base Plate Kit Part Number – MX7A586RPLCENDPLATE

E-INS-MX7PLATEKIT-A

MX7 Base Plate Replacement Kit

1 of 2
