Page 17: Chapter 1 Introduction
The LXE MX8 is a rugged, portable, hand-held Microsoft® Windows® CE 5.0 equipped mobile computer capable of wireless data communications. The mobile device can receive and transmit information using an 802.11 radio. The MX8 can store data for later transmission through an RS- 232 or USB port.
Page 18: Features
LXE AppLock Wavelink® Avalanche® Enabler The MX8 has one mini SD card interface for storage of User data. Use only LXE-qualified SD Cards (see Accessories). The MX8 does not have a Bluetooth managed LED. The MX8 does not have InfraRed capability.
Page 19: Important Battery Information
The backup battery receives power from the main battery. • When the MX8 is connected to AC power and the main battery is being hotswapped, do not disconnect AC power from the MX8 until a main battery is secured in the battery well.
Page 20: Document Conventions
Keyword that indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. DANGER Keyword that indicates a imminent hazardous situation which, if not avoided, will result in death or serious injury. MX8 Reference Guide Overview E-EQ-MX8RG-C...
Page 21: Components

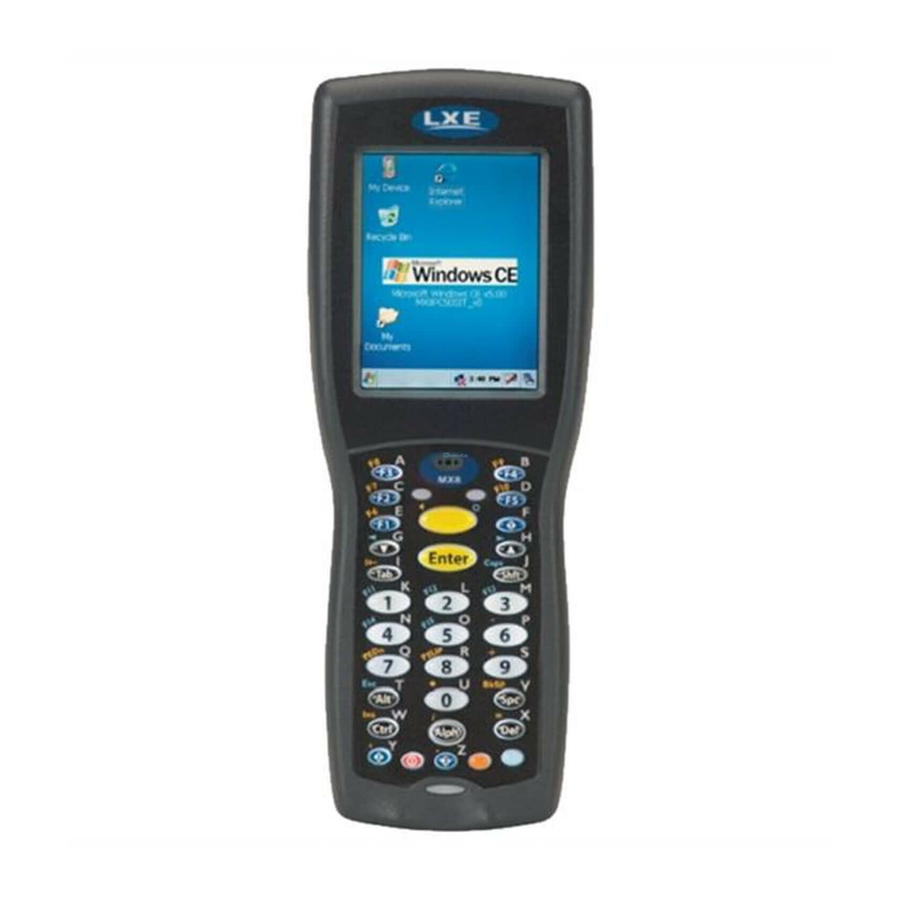

Components Components Front E-EQ-MX8RG-C Figure 1-1 Front of MX8 with Triple-Tap Keypad Imager/Scanner Aperture Speaker System Status LED Scan Button Orange Key (Sticky Key) Blue Key (Sticky Key) Scan Status LED Cable Port On / Off Button Alpha Mode LED...
Page 22: Back
Back Note: The touch screen stylus is tethered to the handstrap or the trigger handle. MX8 Reference Guide Figure 1-2 Back Imager/Scanner Aperture Trigger Handle Attach Points Handstrap Retainer Bracket Attach Points Main Battery Battery Fastener Cable Ports (I/O Port)
Page 23: The Keypads
Components The Keypads The keypad is installed and configured by LXE to your specifications. Triple-Tap See Appendix A – Key Maps for instruction on the specific keypresses to access all keypad functions. E-EQ-MX8RG-C Figure 1-3 The 32-key Keypad Alpha-Mode MX8 Reference Guide...
Page 24: Scanner / Imager Aperture
Scanner / Imager Aperture CAUTION: Never stare directly into the beam aperture. Read “Laser Warnings and Labels” in Identify the type of integrated imager or laser scanner installed in the MX8 by looking at the type of plastic lens covering the Beam aperture.
Page 25: Handstrap
Handstrap Note: Either the trigger handle is attached to the MX8 or the handstrap is attached, not both. LXE recommends that, in the absence of a trigger handle, the handstrap be used at all times. The stylus is tethered to the handstrap or the trigger handle. LXE pre-installs the handstrap when the MX8 is purchased without a trigger handle.
Page 26: I/O Port And Cables
I/O Port and Cables Note: There is no InfraRed port on the MX8. Tethered scanners are not supported on the MX8. The pinout for the I/O port is located in Appendix B – Technical Specifications. Cable: Multipurpose RS-232 and Power...
Page 27: Mx8 Ac Adapter
MX8 AC Adapter Note: The MX8 AC Power Adapters (MX8A301CRDLPSAC and MX8A302CRDLPSACWW) are only intended for use with the MX8 multi-purpose cables and the MX8 Desktop Cradle. Do not connect the adapter cables to any other type of device. Note: Tethered scanners connected to the MX8 I/O port are not supported by LXE.
Page 28: Quick Start
Note: When your mobile device is pre-configured, the client, keypad and scan aperture configurations are assembled by LXE to your specifications. The desktop will display a Summit Client Utility icon. This section’s instructions are based on the assumption that your new device is pre-configured and requires only accessory installation (e.g.
Page 29: Troubleshooting
Chapter 6 - AppLock. Activation Key (Hotkey) If the mobile device uses LXE’s AppLock to allow the user to switch between two applications, the default Activation key is Ctrl+Spc. The key sequence switches the focus between one application and another. Data entry affects the application running in the foreground only. Note that the system administrator may have assigned a different key sequence to use when switching applications.
Page 30: Hardware Setup
The MX8 can be purchased with a customer-installable pistol grip handle. The handle enables the user of the MX8 to hold the unit while pointing and activating the scanner with the trigger on the handle. Pressing the trigger activates the scanner and functions the same as the Scan key on the keypad.
Page 31: Installing The Handstrap
An elastic hand strap is available for the MX8. Once installed, the handstrap provides a means for the user to secure the computer to their hand. It is adjustable to fit practically any size hand and is easily moved to allow installation or removal of the battery pack.
Page 32: Inserting A Fully Charged Battery
Li-Ion batteries (like all batteries) gradually lose their capacity over time (in a linear fashion) and never just stop working. This is important to remember – the MX8 is always ‘on’ even when in the Suspend state and draws power from the batteries at all times. Tap the Panel | Power tab to check the battery status and power reading.
Page 33: Connecting An External Power Supply (Optional)
MX8 I/O port until it clicks. The click means the connector is seated firmly. The System LED above the Scan key illuminates when the MX8 is charging the main battery pack using external power through the power cable. The backup battery is always being trickle charged by the main battery pack.
Page 34: Connecting The Multipurpose Usb / Power Cable
Squeeze the clips on the connector cable to open the catches in the connector assembly. Firmly press Connector A into the connector at the base of the MX8. Release the clips in the connector cable. Test the connection for stability before...
Page 35: Connecting The Multipurpose Rs-232 / Power Cable
Align the RS-232 serial cable end carefully to an appropriate serial port on a desktop/laptop computer for ActiveSync communication. Press the ends together and hand tighten the screws on either side of the serial cable until the MX8 is securely connected to the serial device.
Page 36: Connecting The Audio Cable And A Headset
The headset consists of an earpiece, a microphone and an attached cable. The headset attaches to the audio cable which attaches to the MX8. Use the control panel option “Mixer” to set up mono headphone. The Summit Client supports mono only.
Page 37: Voice Case
3. Do not put the belt on yet. 4. Attach the audio adapter/cable to the base of the MX8. Do not connect the headset to the cable yet.
Page 38: Applying The Protective Film To The Display
7. Slide the audio cable upward under the cable retaining clips on the left side, leaving a small amount of slack between the cable retaining clip and the MX8. Do not pull it tight. 8. The MX8 in the voice case is ready for use.
Page 39: Tapping The Power Key
Refer to the section titled “Power Modes” later in this guide for information relating to the power states of the MX8. The Power key is located at the bottom of the keypad. When a battery is inserted in the MX8 for the first time, press the Power key to turn the device On.
Page 40: Tapping The Touchscreen With A Stylus
A “right mouse click” function must be programmed by the customer to accept a Tap and Hold function. An application can choose to interpret this function as a right mouse click. LXE does not support non-LXE application programming. Keypad Shortcuts Use keyboard shortcuts instead of the stylus: •...
Page 41: Software Setup
Set Time Zone (Optional) Note: The first time it is used, or the device returns from a Clear Hive, the MX8 resets the Time Zone to the factory default values (GMT-05:00 Eastern Time). To set the Time Zone, tap the Select the physical time zone.
Page 42: Set The Mx8 Power Schemes Timers
| Settings | Control Panel | Power | Schemes tab. Change the parameter values and tap OK to save the changes. Battery Power Scheme Use this option when the MX8 will be running on battery power only. Switch state to User Idle: Switch state to System Idle:...
Page 43: Set The Audio Speaker Volume
The speaker is located on the front of the device above the MX8 logo. The audio volume can be adjusted to a comfortable level for the listener. The volume is increased or decreased one step each time the volume key sequence is pressed.
Page 44: Wireless Client And Network Setup
The MX8 uses the Summit Client Utility to configure the network card. When the MX8 boots up for the first time and all programs are loaded, the Wireless Information window may appear. The client is attempting to connect to the local network.
Page 45: Installing User Certificates And Private Keys
Access: Prerequisites: • The MX8 has the correct Date and Time. See Chapter 3, section titled “Date/Time.” • A User Certificate file is available • A Private Key file is available First, using ActiveSync, copy the User Certificate file and the Private Key file to the mobile device’s persistent file location.
Page 46: Private Key
Set the Field to Private Key. Make sure the private key is “Present.” If it is not present, install the private key file. See Chapter 5 “Wireless Network Configuration”. MX8 Reference Guide Installing User Certificates and Private Keys Figure 1-28 View Certificate Details...
Page 47: Bluetooth
These options can still be checked or unchecked whether Bluetooth connection is enabled or disabled. As Bluetooth devices pair with the MX8, the name of the device and an icon representing the type of device is displayed in the Devices window. The icon state changes as the paired Bluetooth devices connect and disconnect from the MX8.
Page 48: Report When Connection Lost
Report when connection lost A dialog box appears on the MX8 display notifying the user the connection between one (or all) of the paired Bluetooth devices has stopped. This option is enabled by default. Click the OK button or the X button to remove the dialog box from the screen.
Page 49: Subsequent Use
10. Whenever the MX8 returns from Suspend Mode, all previously paired, live, Bluetooth devices in the vicinity are paired, one at a time, with the MX8. If the devices cannot connect to the MX8 before the re-connect timeout time period expires (default is approximately 20 seconds for each paired device) there is no indication of the continuing disconnect state if Report Failure to Reconnect is disabled.
Page 50: Bluetooth Devices
Note: When an active paired device, not the MX8, enters Suspend Mode, is turned Off or leaves the MX8 Bluetooth scan range, the Bluetooth connection between the paired device and the MX8 is lost. There may be audible or visual signals as paired devices disconnect from the MX8.
Page 51: Bluetooth Barcode Reader Setup
Introduction LXE supports several different types of barcode readers. This section describes the interaction and setup for a mobile Bluetooth laser scanner or laser imager connected to the MX8 using Bluetooth functions. • The MX8 must have the Bluetooth hardware and software installed. An MX8 operating system upgrade may be required.
Page 52: Mx8 With Label
1. Scan the Bluetooth address barcode label, attached to the MX8, with the LXE Bluetooth mobile scanner. 2. If this is the first time the Bluetooth scanner has scanned the MX8 Bluetooth label, the devices are paired. See section titled “Bluetooth Beep and LED Indications”. If the devices do not pair successfully, go to the next step.
Page 53: Bluetooth Beep And Led Indications
Contact LXE Support for assistance. Bluetooth Printer Setup The Bluetooth managed device should be as close as possible, in direct line of sight, with the MX8 during the pairing process. 1. Open the LXEZ Pairing Panel (Start | Settings | Control Panel | Bluetooth).
Page 54: Entering Data
The keypad is used to manually input data that is not collected otherwise. Almost any function that a full sized computer keyboard can provide is duplicated on the MX8 keypads but it may take a few more keystrokes to accomplish a keyed task. Please refer to “Appendix A – Key Maps” for instruction on the specific key presses to access all keypad functions.
Page 55: Using The Stylus
Using the Stylus Note: This section is directed to the MX8 daily user. The assumption is that the mobile device has been configured and the touch panel calibrated by the System Administrator prior to releasing the MX8 for daily use. The touchscreen should be calibrated before initial use.
Page 56: Using The Scanner
The Scan Status LED (oval shaped LED below keypad) turns red when the laser beam is on. Following a barcode scan and read the Scan Status LED turns green for two seconds and the MX8 beeps or vibrates, indicating a successful scan. When the scan light is OFF and there is no successful decode then the Scan Status LED turns off and a different beep sequence is heard.
Page 57: Voice Data
LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE”. This information is also available on the LXE website.
Page 58 MX8 Charge/Comm Interface Cable, RS-232 Serial ActiveSync, D9 Female with power connector MX8 RS-232 Serial Adapter cable, 6in, for use with printers that provide their own source of power. MX8 Headset coiled adapter cable, includes quick disconnect headset connector.
Page 59 (large and small) Li-Ion Spare Battery for LXE Bluetooth Ring Scanner Module LXE Bluetooth Ring Scanner 8-bay battery charger with US power cord LXE Bluetooth Ring Scanner single-bay charger with US wall plug PowerScan 7000BT Scanner RS-232 with pointer PowerScan 7000BT Base Station, RS232, without universal power supply.
Page 60 Universal Desktop Power Supply 90-264VAC, 9VDC, 2A, EPS 9-60VDC Forklift Power Supply (For Use with Forklift Cradles) Power Cable: Connects DC Power Supply to Forklift Cradle Forklift Rugged Scanner Holder with RAM mount (all metal with cloth padding) MX8 Reference Guide Getting Help 8800A051POWERCORD 8800A377CHGRADPTRCUP 8800A378CHGR1SLOT...
Page 61: Chapter 2 Physical Description And Layout
The MX8 hardware configuration is shown in the following figure. Central Processing Unit The LXE MX8 CPU is a 520MHz Intel Xscale PXA27X CPU. The operating system is Microsoft Windows CE 5.0. The OS image is stored on an internal flash memory and is loaded into DRAM for execution.
Page 62: System Memory
The UUID required by CE 5.0 is stored in the boot flash. Internal Mini SD Memory Card The MX8 has one mini SD card interface for storage for User data. The Mini SD slot is accessible from the battery compartment and ships with an LXE-qualified 128MB Mini SD card.
Page 63: Power Supply
A new main battery pack can be fully charged in 5 hours when it is in an MX8 connected to AC power and 5 hours when it is in the MX8 multi charger.
Page 64: Com Port
USB Client Port The MX8 has one USB Client port for ActiveSync applications. An accessory USB cable, “Cable, Multipurpose USB and Power” is available to connect the MX8 to a USB Type A plug on a PC for ActiveSync functions.
Page 65: Audio Support
The speaker supplies audible verification signals normally used by the Window’s CE operating system. The speaker is located on the front of the MX8, above the MX8 logo. The mobile device emits a Sound Pressure Level (loudness) of at least 102 dB measured as follows: •...
Page 66: Power Key
MX8. The power key is located next to the <Diamond 2> key on the 32-key keypad. When a main battery pack is inserted in the MX8 for the first time, the Power key must be pressed. Reboot Sequences When the Windows CE desktop is displayed or an application begins, the power up (or reboot) sequence is complete.
Page 67: Reset To Default Settings
LXE recommends that this process be used only as an emergency procedure and the Warm Boot Two different resets are provided on the MX8. User registry settings can be reset to factory defaults using ClearHive.exe or all settings, which includes registry and the persist keys in Launch.reg, can be reset using Coldboot.exe.
Page 68: Mini Sd Card Insertion / Removal
• Anti-static protection is required when installing/removing cards. (Not supplied by LXE) • If you anticipate keeping a card out of the MX8 for a long period of time place it in a static- free storage container. Store in an area that is protected from dirt, moisture, and electrostatic contact.
Page 69: Power Modes
• the display backlight is on until the Backlight timer expires, then it dims. The MX8 After a new MX8 has been received, a charged main battery inserted, and the Power key tapped, the MX8 is always active until both batteries are drained completely of power.
Page 70: Suspend Mode
Line of Sight. The wireless client retains network connectivity while Bluetooth is active. The user will not be able to select PIN authentication or encryption on connections from the MX8. However, the MX8 supports authentication requests from pairing devices. If a pairing device requests authentication or encryption, the MX8 displays a prompt for the PIN or passcode.
Page 71: Keypads
Keypads Keypads 32-Key Triple-Tap Keypad The keypad is installed and configured by LXE to your specifications. • When using a sequence of keys that require an alpha key, first press the Alph key. Use the Shft sticky key or the Caps key sequence (Blue+Tab) for upper case alphabetic characters.
Page 72: Figure 2-6 The Alpha-Mode Keypad
32-Key Alpha-Mode Keypad The keypad is installed and configured by LXE to your specifications. • When using a sequence of keys that require a lowercase alpha key, first press the Alph key. Use the Shft sticky key for upper case alphabetic characters.
Page 73: Mappable Diamond Keys
These keys can be mapped by the user to generate any key code defined by Windows CE with the exception of Shift, Alt, Ctrl, Left/Right Shift, Alt, Ctrl. E-EQ-MX8RG-C Figure 2-7 Mappable Diamond Keys | Settings | Control Panel | Mappable Keys tab. MX8 Reference Guide...
Page 74: Led Indicators
When the LED is . . Blinking Red Steady Red Blinking Green No Color Scan Status LED The Scan Status LED is located below the MX8 keypad. When the Scan Status LED is . . . Steady Green Steady Red Amber No Color Alpha Mode LED The Alpha Mode LED is located next to the <F5>...
Page 75: Standard Keys
– when CAPS is On alpha characters are capitalized. For example, when CAPS is On and the Shft key and the G key are pressed, a lower case g is displayed. MX8 Reference Guide...
Page 76: Mode Key Functions
To enter a string of numbers in a text field, make sure the <Alph> key is toggled off. MX8 Reference Guide Function The Orange and Blue keys are sticky keys that, when tapped, activate the second functions of the keypad.
Page 77: Touchscreen
Use a clean, damp, lint-free cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled. Lint/particulates can be removed with clean, filtered canned air. Static screen protectors for the MX8 are available from LXE. E-EQ-MX8RG-C Figure 2-8 Touchscreen...
Page 78: Checking Battery Status
The more you use the scanner or the wireless transmitter, the shorter the time required between battery recharges. A suspended MX8 maintains data and time for a minimum of 2 days using a main battery that has a reached the Low Warning point and a fully charged backup battery. The MX8 retains data during a main battery hot swap for at least 5 minutes.
Page 79: Battery Hotswapping
Battery tab) connect the AC adapter to the MX8 before replacing the main battery pack. When the main battery power level is low, the MX8 will signal the user with the low battery warning indicator (the Status LED remains a steady red) that continues until the main battery is replaced, the battery completely depletes, or external power is applied to the MX8 using an AC Adapter.
Page 80: Handling Batteries Safely
Battery Maintenance Publication The LXE publication “Getting the Most from Your Batteries” is available on the LXE Manuals CD and is a single-source guide to battery management. The publication contains information about battery recharging, conditioning, and other pertinent issues.
Page 81: Mx8 Multi-Charger (Optional)
The multi-charger AC adapter and cable is only compatible with the MX8 multi-charger. The main battery pack can be charged in either 1) a powered MX8 Multi-Charger or 2) by a powered AC Adapter connected by multipurpose cables to the mobile device.
Page 82: Mx8 Cradles (Optional)
Wireless host/client communications can occur whether the cradle is receiving external power or not as wireless functions draw power from the main battery in the MX8. The cradles are designed to secure an MX8 with or without a protective boot, a handstrap and/or a trigger handle.
Page 83: Introduction
Chapter 3 System Configuration Introduction There are several different aspects to the setup and configuration of the MX8. Many of the setup and configuration settings are dependent upon the optional features such as hardware and software installed on the mobile device. The examples found in this chapter are to be used as examples only, because the configuration of your specific MX8 may vary.
Page 84: Installed Software
Some standard Windows options require an external modem connection. Modems are not available from LXE nor supported by LXE. When you order an MX8 you receive the software files required by the separate programs needed for operation and wireless client communication. The files are loaded by LXE and stored in folders in the mobile device.
Page 85: Software Applications
The MX8 has a unique 128-bit ID code as required by the CE 5.0 specification. This ID number is generated by the boot loader. This ID code is available in the control panel, and via a Win32 standard API.
Page 86: Optional Software
The MX8 has the Avalanche Enabler installation files loaded, but not installed, on the mobile device when it is shipped from LXE. The installation files are located in the System folder on CE devices. The installation application must be run manually the first time Avalanche is used. After the installation application is manually run, the Enabler begins normal performance.
Page 87: Desktop
The MX8 Desktop appearance is similar to that of a laptop/desktop PC running Windows 2000 or XP. At a minimum, it has the My Device, Internet Explorer, and the Recycle Bin icons that can be tapped with the stylus to access the contents .
Page 88: My Device Folders
Application Data My Documents Network Program Files System (Storage) Storage Card Temp Windows MX8 Reference Guide Description Data saved by running applications Storage for downloaded files / applications Mounted network drive Applications Internal SD Flash Card External Storage card Location for temporary files...
Page 89: Start Menu Program Options
Music management program Opens an ASCII notepad Radio management program. WZC icon in toolbar Displays MX8 file structure on a remote desktop monitor. RF client management program. See Chapter 5. Handwriting recognition program using an integrated dictionary Option.
Page 90: Communication
After a relationship (partnership) has been established with the MX8 and a desktop computer, ActiveSync can synchronize using the radio link, serial port, or USB port on the MX8. Refer to “ActiveSync / Get Connected Process” later in this chapter for more information and instruction.
Page 91: Lxeconnect
2. If needed, power up the MX8. Connect the Power/USB Y-cable to the base of the MX8. 3. Connect the MX8 to the PC using the USB cable. The USB-A end of the cable connects to a USB port on a desktop or laptop PC. The other end connects to the MX8 power/USB Y- cable secured to the base of the device.
Page 92: Using Lxeconnect
Access: Equipment Required: MX8 USB ActiveSync Cable. Desktop/laptop computer. Remote Display is used with ActiveSync to display the contents of the MX8 file structure on a desktop/laptop computer screen. Once connected, the desktop keyboard and mouse can be used to manipulate files, data or settings on the MX8.
Page 93: Summit Client
Start Menu Program Options 4. Files on the desktop computer can be dragged to a folder in the MX8 window on the desktop monitor and dropped to add them to the MX8. 5. ActiveSync converts the file to run on a CE device automatically during the transfer.
Page 94: Wireless Zero Config Utility And The Summit Client
3. A message appears that a Power Cycle is required to make settings activate properly. Tap 4. Tap the Power button to place the MX8 in Suspend, then tap the Power button again to wake the MX8 from Suspend mode.
Page 95: Media Player
There are a few changes in the CE version of Windows Explorer as it relates to the general desktop PC Windows Explorer options. Tap the “?” button to access Windows Explorer Help. E-EQ-MX8RG-C | Programs | Media Player | Programs | Microsoft WordPad | Programs | Transcriber | Programs | Windows Explorer MX8 Reference Guide...
Page 96: Taskbar
Show Clock Advanced Expand Control Panel There are a few changes in the CE version of Taskbar as it relates to the general desktop PC Windows Taskbar options. MX8 Reference Guide | Settings | Taskbar … Enabled Disabled Enabled Disabled...
Page 97: Figure 3-3 Advanced Tab
The Result of “Expand Control Panel” checkbox enabled Clear Contents of Document Folder Tap the Clear button to remove the contents of the “Recently Opened” Document folder. E-EQ-MX8RG-C Figure 3-3 Advanced Tab One Result of “Expand Control Panel” checkbox disabled MX8 Reference Guide...
Page 98: Settings | Control Panel Options
Software, hardware, versions and network IP. No user intervention allowed. Customize the way the keyboard, audio, display or mouse functions. LXE AppLock Administration utility. See Chapter 4 for details. View voltage and status of the main and backup batteries. Discover and manage Bluetooth devices.
Page 99 E-EQ-MX8RG-C Function Set MX8 access password properties for sign on and/or screen saver. Control the connection between the MX8 and a local desktop or laptop computer. Set Power scheme properties. Review device status and properties.. Set appearance of numbers, currency, time and date based on country region and language settings.
Page 100: About
User application version information can be shown in the Version window. Version window information is retrieved from the registry. Modify the Registry using the Registry Editor (see section titled “Utilities”). LXE recommends caution when editing the Registry and also recommends making a backup copy of the registry before changes are made.
Page 101: About Lxe
User application version information can be shown in the Version window. Version window information is retrieved from the registry. Modify the Registry using the Registry Editor (see section titled “Utilities”). LXE recommends caution when editing the Registry and also recommends making a backup copy of the registry before changes are made.
Page 102: Figure 3-6 System - Accessibility
AppLock configuration by the Administrator are available to the end-user. See Chapter 4 AppLock for information and instruction. LXE devices with the AppLock feature are shipped to start up in Administration mode with no default password, and when the device is started for the first time, the user has full access to the...
Page 103: Figure 3-8 System - Battery
The Battery tab shows the status and the percentage of power left in the main battery. It also shows the status of the backup battery. The listed values cannot be changed by the user. LXE recommends Discharging and Recharging the backup battery twice a year. E-EQ-MX8RG-C | Settings | Control Panel | Battery Figure 3-8 System –...
Page 104: Figure 3-9 Lxez Pairing Control Panel
• The default Bluetooth setting is On. • The MX8 cannot be discovered by other Bluetooth devices when the Computer is discoverable option is disabled (unchecked) on the Settings panel. • Other Bluetooth devices cannot be discovered if they have been set up to be Non- Discoverable or Invisible.
Page 105: Discover
Tap Stop at any time to end the Discover and Query for Unique Identifier functions. Devices not paired are not shown after a Suspend/Resume function. E-EQ-MX8RG-C Figure 3-10 Control Panel - Bluetooth Figure 3-11 Discover Bluetooth Devices MX8 Reference Guide...
Page 106: Figure 3-12 Bluetooth Devices Panel
An icon with a red background indicates the device Bluetooth connection is inactive. An icon with a white background indicates the device is connected to the MX8 and the device Bluetooth connection is active. Doubletap a device in the list to open the device properties menu. The targeted device does not need to be active.
Page 107: Bluetooth Device Properties
Tap Disconnect to stop the connection between the MX8 and a paired Bluetooth device. Tap Delete to remove an unpaired device from the Bluetooth device list. Tap OK. The deleted device name and identifier is gone from the MX8 Bluetooth Devices panel when the control panel reopens.
Page 108: Settings
Enabled Disable this option to inhibit MX8 connection with all Bluetooth devices. Disabled Enable this option to ensure other devices can discover the MX8.
Page 109: Figure 3-16 Bluetooth About Panel
(such as the paired device entering Suspend mode, going out of range or being turned off). When disabled, after being enabled, the MX8 stops searching after 30 minutes. This option draws power from the Main Battery. Empty...
Page 110: Easy Pairing And Auto-Reconnect
Discover button. It can auto-reconnect to devices previously known but which have gone out of and then returned within range. Pairing supports SPP devices only. Up to two Bluetooth devices can be connected to the MX8 at a time; LXE supports one scanner and one printer (see Accessories).
Page 111: Certificates
Access: Manage digital certificates used for secure communication. Lists the Stored certificates trusted by the MX8 user. These values may change based on the type of radio security resident in the client, access point or the host system. Tap the Import button to import a digital certificate file.
Page 112: Com1
If these values are changed, the default values are restored after a cold boot or reflashing. Note: COM1 does not support 5V switchable power on Pin 9 for tethered scanners. See Also: Chapter 4 - Scanner MX8 Reference Guide | Settings | Control Panel | COM1 9600 None Figure 3-18 COM1...
Page 113: Date/Time
Adjust the settings and tap the OK box or the Apply button to save the changes. The changes take effect immediately. Double-tapping the time displayed in the Taskbar causes the Date/Time Properties screen to appear. E-EQ-MX8RG-C | Settings | Control Panel | Date/Time Icon GMT-05:00 Enabled Figure 3-19 Date/Time Properties MX8 Reference Guide...
Page 114: Dialing
Dialing Access: Set dialup properties for internal modems (not supplied/supported by LXE). Factory Default Settings Location Area Code Tone Dialing Country/Region Disable Call Waiting Tap the Edit button to make changes to Dialing properties. Tap the “?” and follow the instructions in Help.
Page 115: Display
Tap the Delete button to delete schemes. Tap the Apply button to apply the selected scheme to the MX8. Tap the OK box to exit, or “X” to escape without making any changes. Saved changes take effect immediately.
Page 116: Input Panel
Tap the “OK” button to save any changes and exit, or tap the “X” button to exit without saving any changes. Tap the “?” button for Help. Note: Check with your LXE representative for language packs as they become available. MX8 Reference Guide | Settings | Control Panel | Input Panel...
Page 117: Internet Options
Allow SSL 2.0 security Allow SSL 3.0 security Warn when switching E-EQ-MX8RG-C | Settings | Control Panel | Internet Options Figure 3-23 Internet Options http://www.lxe.com/ http://www.google.com 512 Kb Disabled Blank Disabled Disabled Enabled Enabled Enabled Enabled Enabled MX8 Reference Guide...
Page 118 Third party cookies Session cookies Advanced Stylesheets Theming Support Multimedia Security Popups Block popups Display notification Use same window MX8 Reference Guide Settings | Control Panel Options Accept Prompt Always allow Enable Enable All options enabled All options enabled Disabled Enabled...
Page 119: Keyboard
Keyboard Properties panel. Only one font at a time can be selected. The fonts affect the screen display. These values do not affect virtual (onscreen keyboard) key taps. Keymaps and Fonts Please contact your LXE representative about the availability of these fonts for your MX8: Descriptive name Simplified Chinese Traditional Chinese...
Page 120: Mappable Keys
Assign key sequence settings by selecting keys from the drop down boxes. Tap the OK box to save the changes. Tap the “X” box to ignore changes. Tap the “?” box for Help. The changes take effect immediately. MX8 Reference Guide | Settings | Control Panel | Mappable Keys Icon Field Exit...
Page 121: Mixer
Tap OK to save the settings or tap the “X” button to ignore changes. Tap the “?” box for Help. E-EQ-MX8RG-C | Settings | Control Panel | Mixer Icon -6dB 12dB None Disabled 22.5dB Figure 3-26 Mixer Settings Enable the Mic radio button and the Input Boost checkbox. Enable the None radio button. MX8 Reference Guide...
Page 122: Mouse
Set the double-click sensitivity for stylus taps on the touchscreen. Tap OK to save the settings or tap the “X” button to ignore changes. Tap the “?” box for Help. MX8 Reference Guide | Settings | Control Panel | Mouse...
Page 123: Mx8 Options
A dialog panel is displayed. Selecting Yes warmboots the unit – selecting No exits this control panel. Any change take effect after a warmboot. E-EQ-MX8RG-C | Settings | Control Panel | MX8 Options Icon Disabled Figure 3-28 MX8 Options - Communication...
Page 124: Network And Dialup Connections
Set network driver properties and network access properties. Select a connection to use, or create a new connection on the MX8. Tap OK to save the settings or tap the “X” button to ignore changes. Tap the “?” box for Help.
Page 125: Owner
Enter the information and tap the OK box to save the changes. The changes take effect immediately. E-EQ-MX8RG-C | Settings | Control Panel | Owner Icon Blank Disabled Blank Disabled Blank Blank Blank Figure 3-30 Owner Properties MX8 Reference Guide...
Page 126: Password
Password Access: Set MX8 user access/power up password properties. Password and password settings are saved during a warm boot and a cold boot. The screensaver password affects the Remote Desktop screensaver only. Factory Default Settings Password Enter at Power On...
Page 127: Pc Connection
Unchecking the “Enable direct connections …..” disables ActiveSync. Change Connection …. Selecting Change Connection displays a list of configured ActiveSync connections. Please refer to the “Backup MX8 Files” section later in this chapter for parameter setting recommendations. E-EQ-MX8RG-C | Settings | Control Panel | PC Connection Enabled ‘USB Client’...
Page 128: Power
Adjust the settings and tap the OK box to save the changes. Changes are saved across tabs. Tap the “X” box to discard any changes. Tap the “?” for Help. The changes take effect immediately. MX8 Reference Guide | Settings | Control Panel | Power...
Page 129: Regional Settings
The change takes effect immediately. Files stored in the “My Documents” folder are not removed using this option. Note: Do not remove LXE-installed programs using this option. E-EQ-MX8RG-C | Settings | Control Panel | Regional Settings English (United States) 123,456,789.00 / -123,456,789.00 neg...
Page 130: Scanner
MX8 integrated scanner/imager only. Barcode manipulation parameters apply to barcodes scanned by the integrated scanner/imager engine only. Scanner configuration can be changed using the Scanner Control Panels or via the LXE API functions. While the changed configuration is being read, the Scanner LED is solid amber. The scanner is not operational during the configuration update.
Page 131: Stylus
Press and hold the stylus on the center of the target as it moves around the screen. Press Enter to keep the new calibration settings or Esc to cancel. E-EQ-MX8RG-C | Settings | Control Panel | Stylus Figure 3-35 Stylus - Double-Tap Figure 3-36 Stylus - Calibrate MX8 Reference Guide...
Page 132: System
128 MB may only report 99 MB memory, since 29 MB is used up by the Windows CE operating system. This is actual DRAM memory, and does not include internal flash used for storage. MX8 Reference Guide | Settings | Control Panel | System Icon 1/3 storage, 2/3 program memory...
Page 133: Memory Tab
Move the slider to allocate more memory for programs or storage. If there isn’t enough space for a file, increase the amount of storage memory. If the MX8 is running slowly, try increasing the amount of program memory. Adjust the settings and tap the OK box to save the changes. The changes take effect immediately.
Page 134: Sd Flash Cards, Cab Files And Programs
Access Files on Flash Cards The SD flash card used for permanent storage of the OS, LXE drivers and utilities is built into the CPU board. It is also used for registry content back up. Tap the My Device icon on the Desktop then tap the System icon.
Page 135: Activesync / Get Connected Process
(in the information types you select) identical on both your PC and your mobile device. If an information type is selected that does not exist on the MX8, the data appears to transfer, but it is ignored by the MX8 and not loaded.
Page 136: Initial Install
The default is USB. LXE does not recommend using serial ActiveSync at 115 Kb/s. This will set up the MX8 to use COM 1. Tap OK and ensure the check box for "Enable direct connections to the desktop computer" is checked.
Page 137: Connect -- Initial Install Process
ActiveSync / Get Connected Process Connect -- Initial Install Process Connect the correct** cable to the PC (the host) and the MX8 (the client). Tap the | Communication | Connect icon on the MX8. The MX8 connection is made using...
Page 138: Backup Mx8 Files
Setup”. Serial Port Transfer • A PC with an available serial port and an MX8 with a serial cable. The desktop or laptop PC must be running Windows 95, 98, NT, 2000 or XP. • “Allow serial cable or infrared connection to this COM port” is checked.
Page 139: Connect
You can copy files to or from the MX8 using drag-and-drop. You will not be allowed to delete files or copy files out of the \Windows directory on the MX8. (Technically, the only files you cannot delete or copy are ones marked as system files in the original build of the Windows OS image.
Page 140: Cold Boot And Loss Of Host Re-Connection
An ActiveSync partnership for a unique client can be established to two hosts. If the MX8 is cold booted, the random number is deleted – and the partnership with the last one of the two hosts is also deleted. The host retains the random numbers and unique names of all devices having a partnership with it.
Page 141 "CLIENT", followed by "SERVER". After this point, the data stream becomes straight (binary) PPP. Drop down list is blank in the ActiveSync dialog box The radio link is broken. Make sure that the radio has a valid IP address. E-EQ-MX8RG-C MX8 Reference Guide...
Page 142: Utilities
Utilities These utilities are pre-loaded by LXE. In previous versions the following files were placed in the MX8 file structure as shown – they are now available using the MX8 Options tab in the Control Panel. Note: AppLock Administrator Control panel Launch option does not inter-relate with similarly- named options contained in other LXE Control Panels or in LAUNCH.EXE.
Page 143 Order or Delay values if necessary for a particular startup sequence. [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\COPYFOLDERS] "FileName"="COPYFOLDERS" "FileCheck"="" “Order”=dword:0F CAB files for options not purchased are not loaded e.g. JAVA or RFID. If a CAB file is missing, please contact your LXE Representative. E-EQ-MX8RG-C MX8 Reference Guide...
Page 144: Clearhive.exe
For more detail, see LAUNCH.EXE, earlier in this chapter. Synchronize with a local time server • Use ActiveSync to copy GrabTime.ini from the My Device | Windows folder on the MX8 to the host PC. • Edit GrabTime.ini (on the host PC) to add the local time server’s domain name to the beginning of the list of servers.
Page 145: Regeditor.exe
(Launch.REG). The registry contains information about how the mobile device runs. LXE recommends caution damage the mobile device operating system. LXE recommends making a backup copy of the registry before viewing or carefully making changes to the registry. RegDump.EXE Double-tapping the RegDump.EXE file causes the contents of the Registry to be copied to an ASCII text file (Reg.txt) in the My Documents folder.
Page 146: Wavelink Avalanche Enabler Configuration
Briefly . . . The Wavelink Avalanche Enabler installation file is loaded on the mobile device by LXE; however, the device is not configured to launch the installation file automatically. The installation application must be run manually the first time Avalanche is used.
Page 147: Update Monitoring Overview
The Enabler running on LXE Windows CE devices will attempt to access COM1, COM2, and COM3. “Agent not found” will be reported if the Mobile Device Server is not located or a serial port is not present or available (COM port settings can be verified using the LXE scanner applet in the Control Panel).
Page 148: Enabler Configuration
COM connections. Any updates available will be applied to the mobile device immediately upon a successful connection. Abort Stop transmission. MX8 Reference Guide Wavelink Avalanche Enabler Configuration The Enabler user interface application is launched by clicking: either the Avalanche icon on the desktop or Taskbar selecting Avalanche from the Programs menu.
Page 149: Avalanche Update Using File | Settings
Access: Start | Avalanche | File | Settings Use these menu options to setup the Avalanche Enabler on the mobile device. LXE recommends changing and then saving the changes (reboot) before connecting to the network. Alternatively, the Mobile Device Server can be disabled until needed (refer to the Wavelink Avalanche Mobility Center User’s Guide for details –...
Page 150: Connection Tab
This option allows the user to configure Enabler settings using a special barcode that is created by the Avalanche Mobility Center Console. Not currently supported by LXE. Set up the Windows display at startup, on connect and during normal mode. The settings can be adjusted by the user.
Page 151: Execution Tab
Note the dimmed options on this panel. This menu option is designed to manage downloaded applications for automatic execution upon startup. Unavailable in this release. LXE recommends using AppLock. See Chapter 6 – AppLock. Figure 3-42 Avalanche Enabler Execution Options (Dimmed)
Page 152: Server Contact Tab
Server when the device is connected to an external power source. Contact when cradled (a docking event) is not supported on the MX8. Periodic Update - Allows the administrator to configure the Enabler to contact the Mobile Device Server and query for updates at a regular interval beginning at a specific time.
Page 153: Startup/Shutdown Tab
Wavelink Avalanche Enabler Configuration Startup/Shutdown Tab LXE recommends using AppLock for this function. AppLock is resident on each mobile device with a Windows OS. AppLock configuration instructions are located in Chapter 6 AppLock. Figure 3-44 Avalanche Enabler Startup / Shutdown Options...
Page 154: Scan Config Tab
Half screen, Hidden or As is. Default is As is. MX8 Reference Guide Wavelink Avalanche Enabler Configuration Note: Scan Config functionality is a standard option of the Wavelink Avalanche System but is not currently supported by LXE on Windows CE devices. Figure 3-45 Avalanche Enabler Scan Config Option E-EQ-MX8RG-C...
Page 155: Shortcuts Tab
Wavelink Avalanche Enabler Configuration Shortcuts Tab LXE recommends using AppLock for this function. AppLock is resident on each LXE mobile device with a Windows OS. Figure 3-47 Avalanche Enabler Application Shortcuts Configure shortcuts to other applications on the mobile device. Shortcuts are viewed and activated in the Programs panel.
Page 156: Figure 3-49 Avalanche Network Profile Displayed
Icon on taskbar Use Avalanche Network Profile Avalanche Icon MX8 Reference Guide Wavelink Avalanche Enabler Configuration Lists all network adapters currently installed on the mobile device. Indicates if the Enabler is to attempt to configure the primary adapter (active only if there are multiple network adapters).
Page 157: Figure 3-50 Manual Settings Properties Panels
Network For device-specific descriptions of these Enabler parameters, refer to Chapter 5 “Wireless Network Configuration”. LXE does not recommend enabling Manage Wireless Settings. When you download a profile that is configured to manage network and wireless settings, the Enabler will not apply the manage network and wireless settings to the adapter unless the global Manage wireless settings and Manage network settings options are enabled on the Adapters panel (see Figure titled Avalanche Enabler Adapters Options –...
Page 158: Status Tab
If the intention is to stop using Avalanche to manage the device configuration, please see Enabler Uninstall Process earlier in this section. MX8 Reference Guide Wavelink Avalanche Enabler Configuration Figure 3-51 Status Display...
Page 159: Express Scan
To use eXpress Scan to configure an LXE device: Start eXpress Scan on the LXE device by double tapping the eXpress Scan icon on the desktop. Enter the barcode password used when the barcode was created, if any.
Page 160: Figure 3-54 Scan Barcode 1
X in the upper right corner. The password can be re-entered and Barcode 1 scanned again. Once the first barcode is scanned, the remaining barcodes may be scanned in any order. MX8 Reference Guide Figure 3-54 Scan Barcode 1 Figure 3-55 Scan Remaining Barcodes...
Page 161: Api Calls
It is intended as an addition to the standard Microsoft Windows CE API documentation. Details of many of the calls in the LXE guide may be found in Microsoft’s documentation. The APIs documented in the programming guide are included in LXEAPI.ZIP, which is in the standard Windows CE image on the mobile device.
Page 162: Reflash The Mobile Device
Files to be loaded on the Flash card are: OSImage.NB0, BLImage.NB0, MX8Update.exe The MX8 starts the operating system upon every warm boot or cold boot. Always perform MX8 updates when there is a fully charged main battery and backup battery and/or a dependable external power source connected to the MX8.
Page 163: Procedure
Tap Exit to exit without updating. When the flash update is complete, remove the SD card (if desired), replace the rubber barrier and replace the main battery. The unit automatically performs a cold boot. E-EQ-MX8RG-C Figure 3-58 MX8 Image Update MX8 Reference Guide...
Page 164: Command Line Interface
• In case of update error, the application will not reboot the system, instead, it will show the error message on screen and wait for user’s confirmation to proceed. • Always perform MX8 updates when there is a fully charged main battery and backup battery and/or a dependable external power source connected to the MX8.
Page 165: Introduction
• Hand Held Products 5300 2D Imager The integrated scan engine activates when the Scan button on the front of the MX8 is depressed or when the trigger on an installed trigger handle is depressed. Please refer to the Integrated Scanner Programming Guide for instruction on configuring specific scanner/imager parameters by using the MX8 to scan engine-specific setup barcodes in the guide.
Page 166: Barcode Processing Overview
Otherwise, key is ignored (not output). The data is ready to be read by applications. See Barcode Processing Examples at the end of the Barcode Tab section. See Valid VK Codes for CE. MX8 Reference Guide Barcode Processing Overview E-EQ-MX8RG-C...
Page 167: Factory Default Settings
If “Send Key Messages …” is checked any data scan is converted to keystrokes and sent to the active window. When this box is not checked, the application will need to use the set of LXE Scanner APIs to retrieve the data from the scanner driver. Note that this latter method is significantly faster than using “Wedge”.
Page 168: Main Tab
MX8 on the same data. The default setting is Enabled. Integrated imager may use illumination LEDs when scanning a barcode.
Page 169: Com1 Tab
If these values are changed, the default values are restored after a cold boot or reflashing. Note: COM1 does not support 5V switchable power on Pin 9 for tethered scanners. E-EQ-MX8RG-C | Settings | Control Panel | Scanner | COM1 tab 9600 None Figure 4-3 Scanner Control / COM1 MX8 Reference Guide...
Page 170: Barcode Tab
(based on configurable Barcode Data) add a prefix or suffix to a barcode before transmission. Ctrl Char Define the operations the LXE Wedge performs on control characters (values Mapping less than 0x20) embedded in barcodes.
Page 171: Continuous Scan Mode
Switching to and from continuous and normal trigger modes is in effect immediately upon pressing the OK button in this control panel, a warm boot is not required or necessary. E-EQ-MX8RG-C | Settings | Control Panel | Scanner | Barcode tab Disabled 1 second MX8 Reference Guide...
Page 172: Enable Code Id
IDs, to be processed before the Code ID. • The external scanner operation cannot be controlled by the MX8 scanner driver; therefore, a ‘good’ beep may be sounded from the external scanner even if a barcode from an external scanner is rejected because of the configuration specified.
Page 173: Barcode – Symbology Settings
Barcode Data) add a prefix or suffix to a barcode. The Symbology drop-down box contains all symbologies supported on the MX8. An asterisk appears in front of symbologies that have already been configured or have been modified from the default value.
Page 174 Max field is rejected. The default for this field is All (9999). If the value entered is greater than the maximum value allowed for that symbology, the maximum valid length will be used instead. MX8 Reference Guide Barcode Tab E-EQ-MX8RG-C...
Page 175: Strip Leading/Trailing Control
Strips the Code ID based on the type code id specified in the Enable Code ID field in the Barcode tab. By default, Code ID stripping is enabled for all symbologies (meaning code IDs will be stripped, unless specifically configured otherwise). E-EQ-MX8RG-C Figure 4-6 Symbology / Strip Leading / Trailing MX8 Reference Guide...
Page 176: Barcode Data Match List
• If the stripping configuration results in a 0 length barcode, a ‘good’ beep will still emit, since barcode data was read from the scanner. MX8 Reference Guide Figure 4-7 Symbology / Barcode Data Match List Barcode Tab...
Page 177: Match List Rules
Code ID has already been stripped. If Strip Code ID is disabled, then the barcode data to match must include the Code ID. If Strip Code ID is enabled, the data should not include the Code ID since it has already been stripped. E-EQ-MX8RG-C MX8 Reference Guide...
Page 178: Add Prefix/Suffix Control
Non-ASCII equivalent keys in Key Message mode are unavailable in this option. Non- ASCII equivalent keys include the function keys (e.g. <F1>), arrow keys, Page up, Page down, Home, and End. MX8 Reference Guide Figure 4-8 Symbology / Prefix and Suffix Control Barcode Tab...
Page 179: Barcode – Ctrl Char Mapping
Barcode – Ctrl Char Mapping See Also: Barcode Processing Overview earlier in this chapter. The Ctrl Char Mapping button activates a dialog to define the operations the LXE Wedge performs on control characters (values less than 0x20) embedded in barcodes. Control characters can be replaced with user-defined text which can include hat encoded or hex encoded values.
Page 180: Translate All
Delete This button is grayed unless an entry in the list box is highlighted. When an entry (or entries) is highlighted, and Delete is selected, the highlighted material is deleted from the list box. MX8 Reference Guide Barcode Tab E-EQ-MX8RG-C...
Page 181: Barcode – Custom Identifiers
Code ID to the Custom IDs list. identifier (the actual Code ID). Both Name and ID Code must be specified in order to add a custom Code ID to the Custom IDs list. MX8 Reference Guide...
Page 182: Control Code Replacement Examples
Hex-encoded The hex-encoded text is translated text to the equivalent hex value. Escaped hex- The hex-encoding to pass thru to encoded text the application. MX8 Reference Guide Example Example Translated Control configuration data Character ESCape ‘Ignore (drop)’...
Page 183: Barcode Processing Examples
‘ddd’ ‘zzz’ Resulting Data bbb1234567890xxx bbb11234567890xxx < rejected > (too short) ccc]E04567890yyy ccc]E0234567890yyy ccc]E0yyy < rejected > (too long) ddd7890zzz dddzzz ddd45zzz < rejected > (disabled) < rejected > (disabled) aaa4567890www aaa1234567890www < rejected > (too short) MX8 Reference Guide...
Page 184: Length Based Barcode Stripping
Create four custom IDs, using 1 for EAN128 barcode and 0 for Code128 barcode. • c1 = Code = ‘]C1’ • c2 = Code = ‘]C1’ • c3 = Code = ‘]C0’ (24 character barcode is CODE128) • c4 = Code = ‘]C1’ MX8 Reference Guide AIM Custom IDs Barcode Tab E-EQ-MX8RG-C...
Page 185 Click the Barcode Data button. Click the Add button. Add the data for the match codes. Refer to the previous section BarcodeData Match List for instruction. Scan a barcode and examine the result. E-EQ-MX8RG-C AIM Custom Setup for C1 Barcode Match Data for C1 MX8 Reference Guide...
Page 186: Vibration Tab
Enable short, medium or long duration for each selection (good scan and bad scan). Adjust the settings and tap the OK box to save the changes. The changes take effect immediately. MX8 Reference Guide | Settings | Control Panel | Scanner | Vibration tab...
Page 187: C Hapter 5 W Ireless N Etwork C Onfiguration
Chapter 5 Wireless Network Configuration Introduction The MX8 mobile device has a wireless client that can be configured for no encryption, WEP encryption or WPA security, no authentication and all authentications listed below. The Summit client device is either an 802.11g radio, capable of both 802.11b and 802.11g data rates or an 802.11a radio, capable of 802.11a, 802.11b and 802.11g data rates.
Page 188: Summit Client Configuration
Note: Terminology used on your screen displays may be different than those shown in the figures in this chapter. Contact your LXE representative for Summit driver updates as they become available. Start the Summit Client configuration by tapping the Summit Client Utility icon on the desktop.
Page 189: Summit Tray Icon
-60 dBm but not stronger than -40 dBm. The signal strength for the currently associated/authenticated Access Point is stronger than -40 dBm. E-EQ-MX8RG-C provides access to the SCU and is a visual indicator of link status. MX8 Reference Guide...
Page 190: Figure 5-2 Scu – Main Tab
Administrator mode. The profile must already exist. LXE recommends performing a Suspend/Resume function when changing profiles. Profiles can be created or edited after the Admin login password has been entered and accepted.
Page 191: Admin Login
• Create, edit, rename and delete profiles on the Profile tab. • Edit global parameters on the Global tabs. • Enable/disable the Summit tray icon in the taskbar. E-EQ-MX8RG-C Figure 5-3 Main Tab – Enter Admin Password MX8 Reference Guide...
Page 192: Profile Tab
If the name is not unique, an error message is displayed and the new profile is not created. Rename Assigns a new, unique name. If the new name is not unique, an error message is displayed and the profile is not renamed. MX8 Reference Guide Default Blank Blank Fast...
Page 193: Figure 5-5 Scu – Scan
Important – The settings for Auth Type, EAP Type and Encryption depend on the security type chosen. Please refer to Wireless Security later in this Summit Client Utility section to determine the proper settings for the security type implemented on the wireless LAN. E-EQ-MX8RG-C Figure 5-5 SCU – Scan MX8 Reference Guide...
Page 194: Profile Parameters
Power Save Fast Tx Power Maximum Bit Rate Auto MX8 Reference Guide Summit Client Configuration Explanation A string of 1 to 32 alphanumeric characters, establishes the name of the Profile. Options are Default or ThirdPartyConfig. A string of up to 32 alphanumeric characters. Establishes the Service Set Identifier (SSID) of the WLAN to which the client connects.
Page 195 It is important this parameter correspond to the AP to which the device is to connect. For example, if this parameter is set to G rates only, the LXE device may only connect to APs set for G rates and not those set for B and G rates.
Page 196 Parameter Default EAP Type None Encryption None MX8 Reference Guide Summit Client Configuration Explanation Extensible Authentication Protocol (EAP) type used for 802.1x authentication to the Access Point. Options are: None, LEAP, EAP-FAST, PEAP-MSCHAP, PEAP-GTC, or EAP-TLS. Note: EAP Type chosen determines whether the Credentials button is active and also determines the available entries in the Credentials pop-up window.
Page 197: Figure 5-6 Scu – Status Tab
Note: After completing radio configuration, it is good practice to review this screen to verify the radio has associated (no encryption, WEP) or authenticated (LEAP, any WPA), as indicated above. E-EQ-MX8RG-C Figure 5-6 SCU – Status Tab MX8 Reference Guide...
Page 198: Diags Tab
Release/Renew Start Ping Diagnostics Site Survey MX8 Reference Guide Figure 5-7 SCU – Diags Tab Function Tap this button to apply, or reapply, the current config profile and attempt to associate or authenticate to the wireless LAN. Activity is logged in the Diagnostic Output text box on the lower part of the panel.
Page 199: Global Tab
A: Main Only -65 dBm BG: 10 dBm A: 5 dBm BG: 10 sec. A: 5 sec. Full Off (Not supported) 2346 2347 32 bytes 5000 1000 8 seconds SUMMIT (or blank) System BG: Off A: Optimized MX8 Reference Guide...
Page 200: Custom Parameter Option
Custom Parameter Option LXE does not support the parameter Custom option. The parameter value is displayed as “Custom” when the operating system registry has been edited to set the Summit parameter to a value that is not available from the parameter’s drop down list. Selecting Custom from the drop down list has no effect.
Page 201 Antenna Configuration A Main and BG Main A Main and A Aux BG Main and BG Aux Please contact your LXE representative if you have questions about the antenna(s) installed on your MX8. Default Function -65 dBm...
Page 202 A valid directory path, of up to 64 characters, where WPA Certificate Authority and User Certificates are stored on the mobile device. LXE suggests ensuring the Windows folder path currently exists before assigning the path in this parameter. See sections titled Root Certificates and User Certificates later in this chapter for instructions on obtaining CA and User Certificates.
Page 203 No error message or prompting for corrected credentials is displayed. If the authentication credentials are not stored in the active profile and the authentication times out, the user is again prompted to enter the credentials. Options are: An integer from 3 to 60. MX8 Reference Guide...
Page 204: Summit Wireless Security
The SCU will display a reminder if the Commit button is not clicked before an attempt is made to close or browse away from the Config tab. The reminder feature may not be present in all versions. Contact your LXE representative for version upgrades. Sign-On vs. Stored Credentials...
Page 205: Figure 5-9 Sign-On Screen
Reconnect button on the Diags tag is tapped or the profile is modified and the Commit button is tapped. E-EQ-MX8RG-C Figure 5-9 Sign-On Screen MX8 Reference Guide...
Page 206: Windows Certificate Store Vs. Certs Path
2. Copy the certificate to the specified Windows folder on the mobile device. The default location for Certs Path is \System. A different location may be specified by using the Certs MX8 Reference Guide Summit Client Configuration Figure 5-10 Choose Certificate...
Page 207: No Security
Set Encryption to None. Tap the Commit button to save the new profile configuration. Perform a Suspend/Resume function to connect using the new profile configuration. Note: LXE recommends performing a Suspend/Resume function each time the Commit button is tapped. E-EQ-MX8RG-C MX8 Reference Guide...
Page 208: Wep Keys
9, A-F). Enter the key(s) and tap OK. ASCII Key Format Valid keys are 5 (for 40 bit encryption) or 13 (for 128 bit encryption) alphanumeric characters. Enter the key(s) and tap OK. MX8 Reference Guide Summit Client Configuration Figure 5-12 Summit WEP Keys E-EQ-MX8RG-C...
Page 209: Leap W/O Wpa Authentication
Tap the Commit button to save the new profile configuration. Perform a warm boot to connect using the new profile configuration. See Also: WPA/LEAP Authentication later in this section to configure the client for WPA LEAP. E-EQ-MX8RG-C Figure 5-14 LEAP Credentials Dialog MX8 Reference Guide...
Page 210: Eap-Fast Authentication
RADIUS server. The RADIUS server must have auto provisioning enabled to send the PAC provisioning credentials to the client device. Please refer to the LXE Security Primer for more information on the RADIUS server configuration.
Page 211: Peap/Mschap Authentication
Figure 5-17 Configure a Summit Profile for PEAP/MSCHAP Enter the SSID of the Access Point assigned to this profile. Set Auth Type to Open. Set EAP Type to PEAP-MSCHAP. Set Encryption to WPA TKIP. E-EQ-MX8RG-C Figure 5-16 Summit EAP-FAST Credentials MX8 Reference Guide...
Page 212: Figure 5-18 Peap/Mschap Credentials
The device should be authenticating the server certificate and using PEAP/MSCHAP for the user authentication. See Also: Sign-On vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. MX8 Reference Guide Figure 5-18 PEAP/MSCHAP Credentials Summit Client Configuration E-EQ-MX8RG-C...
Page 213: Wpa/Leap Authentication
See Also: LEAP w/o WPA earlier in this section to configure the client for LEAP without WPA. See Also: Sign-on vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. E-EQ-MX8RG-C Figure 5-20 LEAP Credentials MX8 Reference Guide...
Page 214: Wpa Psk Authentication
8-63 byte ASCII value. Tap OK Tap the Commit button to save the new profile configuration. Perform a warm boot (or Suspend/Resume) to connect using the new profile configuration. MX8 Reference Guide Figure 5-22 Summit PSK Entry Dialog Summit Client Configuration...
Page 215: Peap/Gtc Authentication
Select the desired certificate and tap Select. You are returned to the Credentials screen. If using the Certs Path option: • Leave the Use MS store box unchecked. • Enter the certificate filename in the CA Cert textbox. Tap OK then tap Commit. E-EQ-MX8RG-C Figure 5-24 PEAP/GTC Credentials MX8 Reference Guide...
Page 216: Eap-Tls Authentication
No entries are necessary for Sign-On Credentials as the user will be prompted for the User name and Password when connecting to the network. If the username and password are left blank during setup, see Sign-On vs. Stored Credentials earlier in this chapter. MX8 Reference Guide Summit Client Configuration E-EQ-MX8RG-C...
Page 217: Figure 5-26 Eap-Tls Credentials Dialog
The device should be authenticating the server certificate and using EAP-TLS for the user authentication. See Also: Sign-On vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. E-EQ-MX8RG-C Figure 5-26 EAP-TLS Credentials Dialog MX8 Reference Guide...
Page 218: Wireless Zero Config Utility And The Summit Client
2. A message appears that a Power Cycle is required to make settings activate properly. 3. Tap OK. 4. Tap the Power button to place the MX8 in Suspend, then tap the Power button to wake the MX8 from Suspend mode.
Page 219: Root Certificates
Certificates Certificates Please refer to the LXE Security Primer to prepare the Authentication Server and Access Point for communication. It is important that all dates are correct on CE computers when using any type of certificate. Certificates are date sensitive and if the date is not correct authentication will fail.
Page 220: Figure 5-29 Download Ca Certificate Screen
Tap the Save button and save the certificate to the desktop PC. Keep track of the name and location of the certificate as the certificate file name and file location is required in later steps. MX8 Reference Guide Figure 5-29 Download CA Certificate Screen...
Page 221: Installing A Root Ca Certificate On The Mobile Device
Copy the certificate file from the desktop PC to the mobile device. Import the certificate by navigating to Start | Control Panel | Certificates. Tap the Import button. Make sure From a File is selected and tap OK. E-EQ-MX8RG-C Figure 5-31 Certificate Stores Figure 5-32 Import Certificate From a File MX8 Reference Guide...
Page 222: Figure 5-33 Browsing To Certificate Location
Using the Explorer buttons, browse to the location where you copied the certificate, select the certificate desired and tap OK. Tap OK to import the certificate. Once the certificate is installed, return to the proper authentication section, described later in this chapter. MX8 Reference Guide Figure 5-33 Browsing to Certificate Location Certificates E-EQ-MX8RG-C...
Page 223: User Certificates
This process saves a user certificate and a separate private key file. Windows CE devices such as the MX8 require the private key to be saved as a separate file rather than including the private key in the user certificate.
Page 224: Figure 5-36 Request A Certificate Type
Tap on the advanced certificate request link. Tap on the Create and submit a request to this CA link. MX8 Reference Guide Figure 5-36 Request a Certificate Type Figure 5-37 Advanced Certificate Request Screen Certificates E-EQ-MX8RG-C...
Page 225: Figure 5-38 Advanced Certificate Details
MX8USER.PVK. The certificate file created later in this process must be given the same name, for example, MX8USER.CER. DO NOT check “Enable strong private key protection”. Make any other desired changes and tap the Submit button. E-EQ-MX8RG-C Figure 5-38 Advanced Certificate Details MX8 Reference Guide...
Page 226: Figure 5-39 Script Warnings
Tap None if you do not wish to use a password, or • Enter and confirm your desired password then tap OK. Tap the Download certificate link. MX8 Reference Guide Figure 5-39 Script Warnings Figure 5-40 Script Warnings Figure 5-41 User Certificate Issued...
Page 227: Figure 5-42 Download Certificate Security Warning
Be sure to use the same name for the certificate file as was used for the private key file. For example, if the private key was saved as MX8USER.PVK then the certificate file created must be given the same name, for example, MX8USER.CER. E-EQ-MX8RG-C Figure 5-42 Download Certificate Security Warning MX8 Reference Guide...
Page 228: Installing A User Certificate On The Mx8 (Wpa-Tls Only)
Installing a User Certificate on the MX8 (WPA-TLS Only) Copy the certificate and private key files to the mobile device. Import the certificate by navigating to Start | Control Panel | Certificates. Select My Certificates from the pull down list.
Page 229: Figure 5-45 Browsing To Certificate Location
• If the private key is present, the process is complete. • If the private key is not present, import the private key. To import the private key, tap OK to return to the Certificates screen. E-EQ-MX8RG-C Figure 5-45 Browsing to Certificate Location MX8 Reference Guide...
Page 230: Figure 5-46 Browsing To Private Key Location
• Make sure the certificate and private key file have the same name, for example MX8USER.CER for the certificate and MX8USER.PVK for the private key file. If the file names are not the same, rename the private key file and import it again. MX8 Reference Guide Figure 5-46 Browsing to Private Key Location Certificates...
Page 231: Chapter 6 Applock
LXE Control Panels. Note: LXE has made the assumption, in this chapter, that the first user to power up a new mobile device is the system administrator. LXE’s AppLock is designed to be run on LXE certified Windows CE based devices only. LXE loads the AppLock program as part of the LXE customer installation process.
Page 232: Setup A New Device
• The touch panel must be enabled. Refer to the (Start | Settings | Control Panel | Handheld | Misc | ) Touch Panel Disabled setting. • An MX8 default input method (Input Panel, Transcriber, or custom input method) is assigned. LXE CE devices with the AppLock feature are shipped to boot in Administration mode with no default password, thus when the device is first booted, the user has full access to the device and no password prompt is displayed.
Page 233: Figure 6-1 Applock Panels
Setup a New Device Application Panel Application – Launch Panel Application – Security Panel Options Panel Status Panel Figure 6-1 AppLock Panels E-EQ-MX8RG-C MX8 Reference Guide...
Page 234: Administration Mode
If this type of application is being locked, the administrator should close all other applications before switching to end user mode to minimize the screen flicker. Windows accelerator keys such as Alt-F4 are disabled. MX8 Reference Guide Administration Mode Shift+Ctrl+A none...
Page 235: Passwords
To summarize, if an error occurs that prevents AppLock from switching to user mode, the password will not timeout and AppLock will wait until the correct password is entered. AppLock Password Troubleshooting Can’t locate the password that has been set by the administrator? Enter this LXE back door key sequence: Ctrl+L Ctrl+X Ctrl+E...
Page 236: End-User Switching Technique
Misc | Touch Panel Disabled setting. A checkmark indicates applications currently active or available for Launching by the user. When Keyboard is selected, the MX8 default input method (Input Panel, Transcriber, or custom input method) is activated. Using a Stylus Tap When the mobile device enters end-user mode, a Switchpad icon (it looks like three tiny windows one above the other) is displayed in the taskbar.
Page 237: Multi-Application Configuration
Default is blank. Enter the command line parameters for the application in the Arguments text box. Default is 1. Enter the Order in which the application is to be loaded or presented to the end-user. Applications are launched in lowest to highest number order. MX8 Reference Guide...
Page 238 See following section titled Launch Button. Note: AppLock Administrator Control panel file Launch option does not inter-relate with similarly-named options contained in other LXE Control Panels. Default is Ctrl+Spc. Select the Global Key key sequence the end-user is to press when switching between applications. The Global Key default key sequence must be defined by the AppLock Administrator.
Page 239: Launch Button
(by lowest Order number) and no delay (0 seconds) for all other applications. Note: Launch order is determined by the Order specified in the Application tab. The Order value does not have to be sequential. E-EQ-MX8RG-C Figure 6-4 Application Launch Options MX8 Reference Guide...
Page 240: Auto Re-Launch
When Auto At Boot and Manual (Launch) are both disabled for a specific application, the application is 1) not placed on the list of approved applications for end-user manual launch and 2) never launched, and 3) not displayed on the Switchpad. MX8 Reference Guide Multi-Application Configuration E-EQ-MX8RG-C...
Page 241: Match
This means that IEXPLORER.EXE should be specified in the Application text box and the internet application should be entered in the command line. In this case, do not check the Internet checkbox. E-EQ-MX8RG-C MX8 Reference Guide...
Page 242: Security Panel
After the user closes the dialog box, the Security Panel is displayed and the password can then be entered and confirmed again. If the passwords match, the password is encrypted and saved. See Also: Passwords and Troubleshooting Multi-Application AppLock MX8 Reference Guide Multi-Application Configuration Figure 6-5 Security Panel E-EQ-MX8RG-C...
Page 243: Options Panel
Default value is 20000 milliseconds (20 seconds). Restart timeout -- the time to wait for an application to restart itself before timing out. Default value is 20000 milliseconds (20 seconds). E-EQ-MX8RG-C Figure 6-6 Options Panel – Multi-Application MX8 Reference Guide...
Page 244: Status Panel
Process Processing status shows the flow control of AppLock components and is mainly intended for LXE Customer Service when helping users troubleshoot problems with their AppLock program. Extended Extended status provides more detailed information than that logged by Process Logging.
Page 245: Troubleshooting Applock
When the Administrator is selecting a hotkey sequence to use when switching user modes, they are not allowed to enter key combinations that are reserved by installed software applications. LXE has validated RFTerm key combinations ONLY. When RFTerm is installed on the mobile device and an RFTerm restricted key sequence is...
Page 246: Error Messages
Address of keyboard hook procedure OK Alt pressed MX8 Reference Guide Explanation and/or corrective action The hotkey is read but not required by AppLock. A hotkey is required. If there is a failure reading the hotkey, the internal factory default is used.
Page 247 Decryption process ok. Unable to decrypt password. Unable to decrypt password. Decryption process ok. Unable to encrypt password. Level LOG_ERROR LOG_ERROR LOG_ERROR LOG_PROCESSING LOG_ERROR LOG_EX LOG_ERROR LOG_ERROR LOG_ERROR LOG_EX LOG_EX LOG_EX LOG_ERROR LOG_EX LOG_ERROR LOG_EX LOG_ERROR LOG_ERROR LOG_EX LOG_ERROR MX8 Reference Guide...
Page 248 Enter AppLockEnumWindows Enter DecryptPwd Enter EncryptPwd Enter FullScreenMode Enter GetAppInfo Enter password dialog MX8 Reference Guide Explanation and/or corrective action Unable to encrypt password. Encrypt password process successful. Unable to encrypt password. Unable to encrypt password. Encrypt password process successful.
Page 249 Exiting the function that handles the mode switch into admin mode. Exiting the user mode switch function. Level LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING LOG_PROCESSING MX8 Reference Guide...
Page 250 Hotkey press message received In app hook:WM_SIZE In app hook:WM_WINDOWPOSCHANG Initializing keyboard hook procedure MX8 Reference Guide Explanation and/or corrective action The AppName value does not exist in the registry so user mode cannot be entered. Exiting password verification. Exiting password verification.
Page 251 The AppLock system communicates with the keyboard hook via a user defined message. Both AppLock.exe and Kbdhook.dll register the message at initialization. Level LOG_ERROR LOG_EX LOG_EX LOG_PROCESSING LOG_ERROR LOG_ERROR LOG_EX LOG_ERROR LOG_EX LOG_EX LOG_ERROR LOG_ERROR LOG_ERROR LOG_ERROR LOG_PROCESSING LOG_PROCESSING MX8 Reference Guide...
Page 252 Switching to admin-registry read failure Switching to TaskbarScreenMode MX8 Reference Guide Explanation and/or corrective action The registry has to be read when entering user mode is the AppName is missing. This user mode entry is attempted at boot and after a hotkey switch when the administrator has closed the application being locked or has changed the application name or command line.
Page 253 When the administrator leaves user mode, the device is fully operational; therefore, AppLock must stop monitoring the locked application. This message denotes that AppLock has readjusted the window size. Level LOG_PROCESSING LOG_PROCESSING LOG_ERROR LOG_EX LOG_ERROR LOG_EX LOG_EX LOG_EX LOG_ERROR LOG_ERROR LOG_ERROR LOG_ERROR LOG_EX LOG_EX LOG_EX MX8 Reference Guide...
Page 254: Applock Registry Settings
AppLock Registry Settings This system application runs at startup via the launch feature of LXE Windows CE devices. When the launch feature is installed on the mobile device, the following registry settings are created. The launch feature registry settings are embedded in the mobile device OS image: HKEY_LOCAL_MACHINE\\Software\\LXE\\Persist\\Filename=AppLock.exe...
Page 255: Appendix A Key Map
When using a sequence of keys that do not include the Alph key but does include a sticky key, press the sticky key first then the rest of the key sequence. Refer to Reboot Sequences earlier in this guide for warmboot and coldboot key sequences. To Get This MX8 Key / Function Power / Suspend...
Page 256 To Get This MX8 Key / Function Toggle Shift Mode Toggle Alpha Mode Alt Mode Control Mode Scan Mode Space Enter CapsLock (Toggle) Back Space BackTab Up Arrow Down Arrow Right Arrow Left Arrow Insert Delete Home Page Up Page Down MX8 Reference Guide Press These Triple-Tap Keys and Then …...
Page 257 32-Key Triple-Tap Keypad To Get This MX8 Key / Function E-EQ-MX8RG-C Press These Triple-Tap Keys and Then … Blue Orange Shft Press This Key Alpha 7777 9999 MX8 Reference Guide...
Page 258 To Get This MX8 Key / Function 0 (zero) . (period) < > * (asterisk) : (colon) MX8 Reference Guide Press These Triple-Tap Keys and Then … Blue Orange Shft 32-Key Triple-Tap Keypad Press This Key Alpha 7777 9999 Diamond 2...
Page 259 32-Key Triple-Tap Keypad To Get This MX8 Key / Function ; (semicolon) . (period) ` (accent) _ (underscore) , (comma) ‘ (single quote) “ (double quote) ~ (tilde) “ & E-EQ-MX8RG-C Press These Triple-Tap Keys and Then … Blue Orange...
Page 260: Key Alpha-Mode Keypad
When using a sequence of keys that do not include the Alph key but does include a sticky key, press the sticky key first then the rest of the key sequence. Refer to Reboot Sequences earlier in this guide for warmboot and coldboot key sequences. To Get This MX8 Key / Function Power / Suspend...
Page 261 32-Key Alpha-Mode Keypad To Get This MX8 Key / Function Back Space BackTab Up Arrow Down Arrow Right Arrow Left Arrow Insert Delete Home Page Up Page Down E-EQ-MX8RG-C Press These Alpha-Mode Keys and Then … Blue Orange Shft Press This Key...
Page 262 To Get This MX8 Key / Function MX8 Reference Guide Press These Alpha-Mode Keys and Then … Blue Orange Shft 32-Key Alpha-Mode Keypad Press This Key Alpha Diamond 1 Down Arrow Up Arrow Shft 0 (zero) Diamond 2 Diamond 3...
Page 263 32-Key Alpha-Mode Keypad To Get This MX8 Key / Function . (period) < > * (asterisk) : (colon) ; (semicolon) E-EQ-MX8RG-C Press These Alpha-Mode Keys and Then … Blue Orange Shft Press This Key Alpha 0 (zero) Diamond 2 Diamond 3...
Page 264 To Get This MX8 Key / Function ` (accent) _ (underscore) , (comma) “ (double quote) ‘ (single quote) ~ (tilde) “ & MX8 Reference Guide Press These Alpha-Mode Keys and Then … Blue Orange Shft 32-Key Alpha-Mode Keypad Press This Key...
Page 265: Creating Custom Key Maps
IMPORTANT – The keycomp utility included with the MX8 SDK is not the same as the one included with the MX3X SDK. This one only generates maps for the MX8.
Page 266: Keymap Source Format
ALGOR=MX8 MAPDESC MAPNAME MAPCNT MX8 Reference Guide Name of this map. This is what appears in the popup menu in the keyboard control panel. ID code of this map, for use with the internal Win32 APIs (which require a numeric value).
Page 267: Special Section
Defines the algorithm for converting row/column to internal scan code. Current values are: MX3X MX8 [ MX8 is scancode = ((column << 3) + row) ] (MX8 only) no modifiers, 32-key map (MX8 only) orange modifier, 32-key map (MX8 only) blue modifier, 32-key map...
Page 268: Keycomp Error Messages
The section header line must have square brackets before and after the section name Header line missing open bracket The section header line must have square brackets before and after the section name MX8 Reference Guide MAP_VOLUME special keymap for volume adjustment...
Page 269 The value name parsed is invalid for the GENERAL section. The recognized names are: MAPNAME, MAPCNT, MAPCOLS, MAPROWS, or ALGOR Invalid value %s in MAP section The value name parsed is not expected in the SPECIAL section. The only recognized names are: MAP and COLxxx. E-EQ-MX8RG-C MAP_2NDSHIFT, MAP_VOLUM, MAP_VOLUME, MAP_CONTR, MX8 Reference Guide...
Page 270 No Scan Key 1 definition was found. The keyboard driver requires this key to be defined somewhere in one of the keymaps. This message comes from the post-parse validation, so no line # is specified. MX8 Reference Guide Creating Custom Key Maps E-EQ-MX8RG-C...
Page 271: Sample Input File
A value (defined as value=data) is only valid within a section (defined as [section]). A value line was found when a section header line was expected. Sample Input File ;;---------------------------------------------------- ;; keymap file for MX8 keyboard ;;---------------------------------------------------- ;;---------------------------------------------------- ;; general parms give the size of arrays ;;...
Page 272 ;;---------------------------------------------------- ;; the name of this key doesn't matter ;; the important part is the MAP value ;; codes are defined in docs ;; this is the map for unmodified keys on the MX8 ;; 32-key keypad ;;---------------------------------------------------- [Map] MAP=MAP_NORMAL32 ;;;;;;;;;;;;;;;;;;;;;;;;;;;...
Page 273 COL5ROW4=open COL5ROW5=open COL5ROW6=open COL5ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL6ROW0='2' COL6ROW1='5' COL6ROW2='8' COL6ROW3='0' COL6ROW4=KY_PROG3 COL6ROW5=open COL6ROW6=open COL6ROW7=ACTION+KY_ALPHA ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL7ROW0=open COL7ROW1=open COL7ROW2=open COL7ROW3=open COL7ROW4=open COL7ROW5=open COL7ROW6=open COL7ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL8ROW0='3' COL8ROW1='6' COL8ROW2='9' COL8ROW3=VK_SPACE COL8ROW4=KY_ORANGE COL8ROW5=open COL8ROW6=open COL8ROW7=VK_DELETE ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL9ROW0=open COL9ROW1=open COL9ROW2=open COL9ROW3=open E-EQ-MX8RG-C MX8 Reference Guide...
Page 274 ;; the name of this key doesn't matter ;; the important part is the MAP value ;; codes are defined in docs ;; this is the map for keys modified with ORANGE ;; on the MX8 32-key keypad ;;---------------------------------------------------- [Map] MAP=MAP_ORANGE32 ;;;;;;;;;;;;;;;;;;;;;;;;;;;...
Page 275 ;; the name of this key doesn't matter ;; the important part is the MAP value ;; codes are defined in docs ;; this is the map for keys on the MX8 32-key keypad ;; modified with BLUE ;;---------------------------------------------------- [Map] MAP=MAP_BLUE32 ;;;;;;;;;;;;;;;;;;;;;;;;;;;...
Page 276 COL3ROW3=open COL3ROW4=open COL3ROW5=open COL3ROW6=open COL3ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL4ROW0=VK_SLASH COL4ROW1=open COL4ROW2=open COL4ROW3=VK_ESCAPE COL4ROW4=SHIFT+'9' COL4ROW5=open COL4ROW6=open COL4ROW7=SHIFT+'6' ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL5ROW0=open COL5ROW1=open COL5ROW2=open COL5ROW3=open COL5ROW4=open COL5ROW5=open COL5ROW6=open COL5ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL6ROW0=open COL6ROW1=open COL6ROW2=open COL6ROW3=open COL6ROW4=SHIFT+'0' COL6ROW5=open COL6ROW6=open COL6ROW7=SHIFT+VK_APOSTROPHE MX8 Reference Guide Creating Custom Key Maps E-EQ-MX8RG-C...
Page 277 ;; the name of this key doesn't matter ;; the important part is the MAP value ;; codes are defined in docs ;; this is the map for keys on the MX8 32-key keypad ;; modified with SHIFT ;;---------------------------------------------------- [Map] MAP=MAP_SHIFT32 ;;;;;;;;;;;;;;;;;;;;;;;;;;;...
Page 278 COL5ROW3=open COL5ROW4=open COL5ROW5=open COL5ROW6=open COL5ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL6ROW0=SHIFT+'2' COL6ROW1=SHIFT+'5' COL6ROW2=SHIFT+'8' COL6ROW3=SHIFT+'0' COL6ROW4=KY_PROG3S COL6ROW5=open COL6ROW6=open COL6ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL7ROW0=open COL7ROW1=open COL7ROW2=open COL7ROW3=open COL7ROW4=open COL7ROW5=open COL7ROW6=open COL7ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL8ROW0=SHIFT+'3' COL8ROW1=SHIFT+'6' COL8ROW2=SHIFT+'9' COL8ROW3=VK_SPACE COL8ROW4=open COL8ROW5=open COL8ROW6=open COL8ROW7=open MX8 Reference Guide Creating Custom Key Maps E-EQ-MX8RG-C...
Page 279 COL0ROW4=open COL0ROW5=open COL0ROW6=open COL0ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL1ROW0=open COL1ROW1=open COL1ROW2=open COL1ROW3=open COL1ROW4=open COL1ROW5=open COL1ROW6=open COL1ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL2ROW0=VK_F24 COL2ROW1=open COL2ROW2=open COL2ROW3=open COL2ROW4=open COL2ROW5=open COL2ROW6=open COL2ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL3ROW0=open COL3ROW1=open COL3ROW2=open COL3ROW3=open COL3ROW4=open COL3ROW5=open COL3ROW6=open COL3ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL4ROW0=open COL4ROW1=open COL4ROW2=open COL4ROW3=open E-EQ-MX8RG-C MX8 Reference Guide...
Page 280: Output File
COL7ROW4=open COL7ROW5=open COL7ROW6=open COL7ROW7=open Output File [HKEY_CURRENT_USER\Keyboard Layout\Keymaps\Default] "HKL"="00000409" "Head"=hex: 05,0A,08,50,00,00,FF,13,03,0A,FF,FF,40,48,50,58 ;; Normal32 "Map4"=hex:\ 72,71,70,28,09,00,00,00,00,00,8C,F3,0D,00,00,00,\ 73,74,E9,26,10,00,00,00,00,00,00,00,00,00,00,00,\ 31,34,37,12,ED,00,00,11,00,00,00,00,00,00,00,00,\ 32,35,38,30,EF,00,00,F1,00,00,00,00,00,00,00,00,\ 33,36,39,20,F2,00,00,2E,00,00,00,00,00,00,00,00 "Flag4"=hex:\ 00,00,00,00,00,00,00,00,00,00,A0,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,A0,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00 ;; Orange32 "Map5"=hex:\ 77,76,75,22,09,00,00,00,00,00,00,00,00,00,00,00,\ 78,79,38,21,00,00,00,00,00,00,00,00,00,00,00,00,\ DC,33,BD,DC,BB,00,00,2D,00,00,00,00,00,00,00,00,\ DB,32,BF,BA,31,00,00,DE,00,00,00,00,00,00,00,00,\ MX8 Reference Guide Creating Custom Key Maps E-EQ-MX8RG-C...
Page 281 00,00,00,00,30,00,00,DE,00,00,00,00,00,00,00,00,\ 00,00,00,BD,00,00,00,BB,00,00,00,00,00,00,00,00 "Flag6"=hex:\ 00,00,00,00,00,00,00,00,00,00,B7,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,10,00,00,10,00,00,00,00,00,00,00,00,\ 00,00,00,00,10,00,00,10,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,10,00,00,00,00,00,00,00,00 ;; Shift32 "Map7"=hex:\ 81,80,7F,24,00,00,00,00,00,00,00,00,00,00,00,00,\ 82,83,EA,23,00,00,00,00,00,00,00,00,00,00,00,00,\ 31,34,37,00,EE,00,00,00,00,00,00,00,00,00,00,00,\ 32,35,38,30,F0,00,00,00,00,00,00,00,00,00,00,00,\ 33,36,39,20,00,00,00,00,00,00,00,00,00,00,00,00 "Flag7"=hex:\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 10,10,10,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 10,10,10,10,00,00,00,00,00,00,00,00,00,00,00,00,\ 10,10,10,00,00,00,00,00,00,00,00,00,00,00,00,00 ;; ShiftOrange "Map12"=hex:\ 86,85,84,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 87,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00 "Flag12"=hex:\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00 E-EQ-MX8RG-C MX8 Reference Guide...
Page 282 Creating Custom Key Maps MX8 Reference Guide E-EQ-MX8RG-C...
Page 283: Physical Specifications
7.2 cm 2.45” 6.2 cm 1.72” 4.36 cm 1.52” 3.86 cm Integrated SE955 In-Unit Chargeable or Externally Chargeable Automatically charges from main battery during normal operation. Requires AC power for re-charging. Minimal life expectancy is 2 years. MX8 Reference Guide...
Page 284: Display Specifications
11 to 13 DC_GND UART_DTR UART_DSR USBC_D- HS_MIC 18 to 20 DC_IN MX8 Reference Guide Appendix B Technical Specifications Comments Supports diversity. Dynamic control for power management. Specification LCD – Active Transmissive Color / LED Backlight 320 (Vertical) x 240 (Horizontal) pixels 1/4 VGA portrait 2.8 in (7.12 cm)
Page 285: Environmental Specifications
0 Amps min, 3 Amps max 32 F to 100° F / -0° C to 40° C The LXE-approved AC Power Adapter is only intended for use in a 25°C (77°F) maximum ambient temperature environment. -40° F to 180° F / -40° C to 80° C (fahrenheit degrees (temperature) = ((centigrade temperature)*9/5)+32) Operates in a relative humidity of 5 –...
Page 286: Radio Specifications
2.4 to 2.4897 GHz 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 50 mW max. 1-11 FCC, 1-13 ETSI see MX8 Environmental Specs see MX8 Environmental Specs TCP/IP, Ethernet, ODI 16-bit Compact Flash Type I with 50-pin connector 2.4 - 2.4897 GHz IEEE 802.11b / 802.11g DSSS OFDM...
Page 287: List Of Valid Vk Codes For Ce
VK_NUMPAD5 VK_NUMPAD6 VK_NUMPAD7 VK_NUMPAD8 VK_NUMPAD9 VK_OEM_CLEAR VK_OFF VK_PA1 VK_PAUSE VK_PERIOD VK_PLAY VK_PRINT VK_PRIOR VK_RBRACKET VK_RBUTTON VK_RCONTROL VK_RETURN VK_RIGHT VK_RMENU VK_RSHIFT VK_RWIN VK_SCROLL VK_SELECT VK_SEMICOLON VK_SEPARATOR VK_SHIFT VK_SLASH VK_SLEEP VK_SNAPSHOT VK_SPACE VK_SUBTRACT VK_TAB VK_UP VK_VOLUME_DOWN VK_VOLUME_MUTE VK_VOLUME_UP VK_ZOOM MX8 Reference Guide...
Page 288: Ascii Control Codes
Form Feed Carriage Return Shift Out Shift In Data Link Escape Device Control 1, normally XON Device Control 2 MX8 Reference Guide Appendix B Technical Specifications Ctrl-Shift-` VK_CONTROL (0x11) down VK_A (0x41) down WM_CHAR (0x1) VK_A (0x41) up VK_CONTROL (0x11) up...
Page 289 VK_CONTROL (0x11)down VK_PACKET (0xe7) down WM_CHAR 0x1b VK_PACKET up VK_CONTROL up VK_CONTROL (0x11)down VK_PACKET (0xe7) down WM_CHAR 0x1c VK_PACKET up VK_CONTROL up VK_CONTROL (0x11)down VK_PACKET (0xe7) down WM_CHAR 0x1d down WM_CHAR (0x1d) up VK_PACKET up VK_CONTROL up MX8 Reference Guide...
Page 290: Revision History
• Chapter 2 -- Physical Description and Layout -- Updated Reboot Sequences. • Chapter 3 – System Configuration -- Updated Avalanche Enabler screens. Updated Reflash the Mobile Device. Added LXE Connect. Added eXpress Scan. Added MX8 Options Control Panel (IPV6). Revised Control Panel Options to add WiFi.
Page 291: Index
Backup Data Files...122 Backup software ...69 Barcode Enable or Disable ...154 Barcode – Symbology Settings...157 Barcode Data Match list ...160 Barcode processing overview ...150 Barcode Tab...154 Batteries...268 battery trickle charging ...16 Battery Backup, details...63 charge before using ...16 MX8 Reference Guide...
Page 292 Change the volume setting...27 Character Recognition Touchscreen ...79 Charger battery ...65 Charging Battery Time Required ...47 MX8 Reference Guide Check battery status...62 Clean display and aperture...61 Clear Contents of Document Folder ...81 Clear Internet cache ...101 Clear registry settings ...145 ClearHive...50, 51 Client and Network Setup...28...
Page 293 Good scan Bad scan...152 GrabTime utility ...128 Handle Installation...14 Handling Batteries ...64 Handstrap...9 Handstrap, Install...15 Hardware Configuration ...45 Help ...41 HHP 5300 2D imager ...49 HKEY_LOCAL_MACHINE ...84, 85 Hotkey AppLock ...226 Hotswapping allowed for Main Battery ...63 hotswapping not allowed MX8 Reference Guide...
Page 294 ...38 Input Panel properties...100 Install ActiveSync on Desktop or Laptop...120 Integrated barcode scanner port...49 Internal modems not supported by LXE ...98 Internal SD flash card and port...52 Internet connectivity ...101 Internet Explorer...78 AppLock ...225 Radio card and ISP required ...78 Internet popup blocker...101...
Page 295 Release/Renew button ...182 Remote Display ...76 Remove a program...113 Reset all MX8 configuration to factory defaults...51 the MX8 registry to factory defaults ...51 Reset to Factory Default, How to ...51 ResetAll ...50, 51 Review System and mobile device data and revision levels...116 RFTerm ...28, 70...
Page 296 Avalanche ...139 Show Clock ...80 Shutdown time limits...63 Soft Keyboard...100 Software and Files ...68 Applications ...69 Load ...68 supported by the MX8...68 Sounds and Volume default values...117 speaker...49 Speaker location ...27 Special functions...59 SSID ...178 Standard keys functions...59 Start Menu Shutdown ...71...
Page 297 ...45 Uninstall a program ...113 Update monitoring...131 USB Client and Power port ...48 User access power up password...110 User Certificate on the MX8...212 User Certificates Generating...207 User certificates and private keys ...29 User-specific application version information...84, 85 Utilities Coldboot...128...
Page 298 Index MX8 Reference Guide E-EQ-MX8RG-C...

LXE MX8 Reference Manual

Chapter 1 Introduction

Overview

Components

Quick Start

Hardware Setup

Tapping the Power Key

Tapping the Touchscreen with a Stylus

Software Setup

Wireless Client and Network Setup

Terminal Emulation Setup

Installing User Certificates and Private Keys

Bluetooth

Entering Data

Getting Help

Chapter 2 Physical Description and Layout

Hardware Configuration

Power Key

Reboot Sequences

Saving Changes to the Registry

Bluetooth Pairing

Keypads

Touchscreen

MX8 Multi-Charger (Optional)

MX8 Cradles (Optional)

Chapter 3 Systemconfiguration

Windows CE 5.0

Installed Software

Desktop

Start Menu Program Options

Settings | Control Panel Options

SD Flash Cards, CAB Files and Programs

Activesync / Get Connected Process

Utilities

Wavelink Avalanche Enabler Configuration

Express Scan

API Calls

Clearing Registry Settings

Reflash the Mobile Device

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for LXE MX8

Summary of Contents for LXE MX8
