LXE MX6 PPC Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

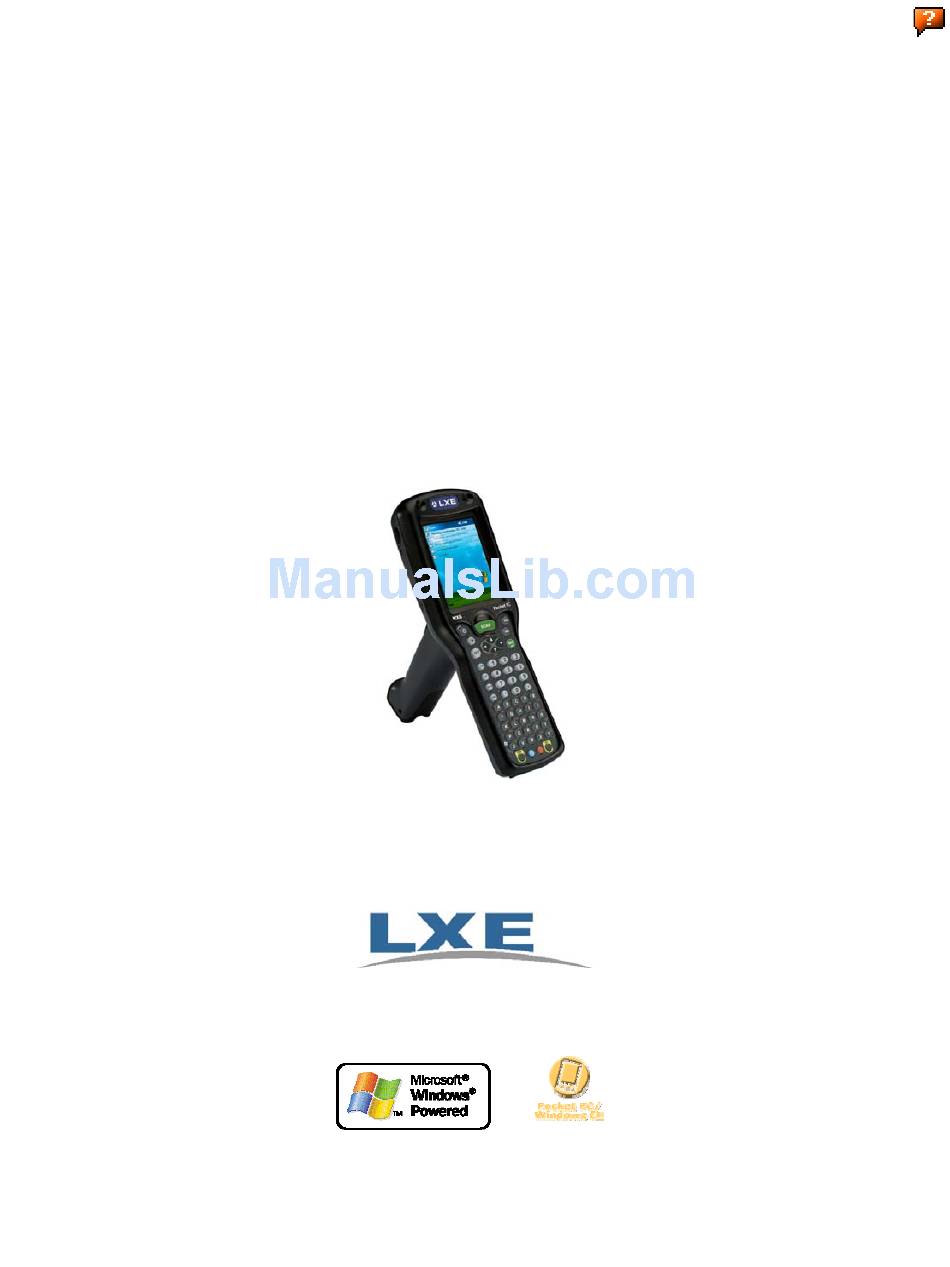

MX6 PPC Reference Guide
(For Microsoft
Windows Pocket PC
2002 Equipped MX6's)
®
®
IMPORTANT NOTICE
LXE's MX6 running Windows Pocket PC 2002 is obsolete.
This electronic manual has been made available as a courtesy to LXE's
customers. Please contact your LXE customer support representative for
assistance and mobile device replacement.
Copyright © 2005 by LXE Inc.
All Rights Reserved
E-EQ-MX6PCRG-C-ARC

Advertisement

Table of Contents
loading

Related Manuals for LXE MX6 PPC

Summary of Contents for LXE MX6 PPC

  • Page 1 ® IMPORTANT NOTICE LXE’s MX6 running Windows Pocket PC 2002 is obsolete. This electronic manual has been made available as a courtesy to LXE's customers. Please contact your LXE customer support representative for assistance and mobile device replacement. Copyright © 2005 by LXE Inc.

  • Page 2: Revision Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information contained herein. Further, LXE Incorporated, reserves the right to revise this document and to make changes to it from time to time without any obligation to notify any person or organization of such revision or changes.

  • Page 3: Table Of Contents

    Accessing Files in Flash Memory................23 My Documents Folder......................... 23 The IPSM Folder..........................23 Connect the Audio Jack (Optional) ............... 24 Set The Audio Speaker Volume ................24 Adjust the Handstrap....................25 Enter Data ........................ 26 Keypad Entry ............................26 E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 4 Troubleshooting – Cold Boot/Hard Reset................... 35 Upgrading the Mobile Device OS....................... 36 Power Modes......................37 On Mode ............................. 37 The Display ............................37 The MX6 PPC ..........................37 New Unit............................37 Both Batteries Dead ........................38 Main Battery Hot-swapped ......................38 Suspend Mode............................. 38 Off Mode.............................
  • Page 5 IPConfig ............................56 Ping..............................57 Route ..............................57 RASMan ............................58 Reboot .............................. 58 RegBackup ............................58 RegRestore ............................58 ScanWedge ............................58 Suspend ............................58 SysInfo.............................. 59 Games..............................59 Calculator ............................59 ActiveSync ............................59 E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 6 Wireless Status Icon in Toolbar......................80 Meetinghouse AEGIS Client ......................81 Main Screen ........................... 81 Protocol Configuration ........................82 User tab ............................82 System tab ........................... 82 Server tab............................. 82 Port Configuration ......................... 83 Configure............................. 83 MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...
  • Page 7 56-Key Full Alpha Numeric Keypad............... 98 PPENDIX ECHNICAL PECIFICATIONS Physical Specifications ..................103 Display Specifications ..................104 Environmental Specifications................104 MX6 PPC ............................104 AC Wall Adapter..........................104 C MX6 M PPENDIX ULTICHARGER Introduction ......................105 Using the Multicharger ..................106 Inserting/Removing a Battery Pack ....................
  • Page 8 Illustrations Figure 1-1 Start Screen - Pocket PC 2002 ......................1 Figure 1-2 Start Screen - Windows Mobile ......................1 Figure 1-3 Front of 56-key MX6 PPC .........................3 Figure 1-4 Back of MX6 PPC..........................4 Figure 1-5 With Trigger Handle Installed......................5 Figure 1-6 RS-232/USB Communications and Charging Port ................5 Figure 1-7 Imager Decode Zone ..........................7...

  • Page 9: Chapter 1 Introduction

    The MX6 PPC is powered by a 2000 mAh Lithium-Ion main battery pack and an internal backup battery. An MX6 PPC with a 35-key keypad is slightly different from the MX6 PPC with a 56-key keypad creating differences in keymapping. Portions of this guide will be split between the the 35-key device and the 56-key device.

  • Page 10: Important Battery Information

    4-bay battery charger. • When a new battery is installed in the MX6 PPC for the first time (or when the backup battery is completely depleted), the Time and Date must be re-set.

  • Page 11: Components

    Components Components 1. Scan LED 2. Decode LED 3. Touchscreen Display 4. Power key 5. Scan key 6. Cursor keys 7. Backlight Toggle key on the 56-key keypad. Figure 1-3 Front of 56-key MX6 PPC E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 12: Figure 1-4 Back Of Mx6 Ppc

    Components 1. Image Aperture 2. Speaker 3. Handstrap Connector 4. Stylus (No Trigger Handle) 5. Microphone 6. Battery Well 7. Battery Figure 1-4 Back of MX6 PPC MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 13: Figure 1-5 With Trigger Handle Installed

    2. Rubber Nose Bumpers 3. Scan Trigger 4. Rubber Bumper 5. Headphone Jack 6. Secure Digital Access Door 7. IrDA Port 8. Stylus and Tether (storage inside base of handle) Figure 1-6 RS-232/USB Communications and Charging Port E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 14: When To Use This Guide

    Use this reference guide as you would any other source book -- reading portions to learn about the MX6 PPC, and then referring to it when you need more information about a particular subject. This guide takes you through all aspects of installation and configuration.

  • Page 15: Document Conventions

    Keyword that indicates a imminent hazardous situation which, if not avoided, will result in death or serious injury. Imager Decode Zone Engine Imager Decode Zone 2.5 in. to 12.5 in. Standard Range (SR) 6.3 cm to 32 cm Figure 1-7 Imager Decode Zone E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 16: Using The Stylus

    The stylus is located on the back of an MX6 PPC without a handle, and in the back of the handle of an MX6 PPC with a handle. A tether is connected to the stylus in the handle.

  • Page 17: System Tray Icons

    Main batteries are low. waiting acknowledgment. One or more e-mail messages are Main batteries very low. waiting acknowledgment. Main batteries are full. Soft Input Panel. Tap to show the Panel. Figure 1-10 System Tray Icons E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 18: Soft Input Panel

    Soft Input Panel The Soft Input Panel (SIP) is always available by tapping the SIP icon in the system tray when the MX6 PPC is powered On. It is always available with one exception – when the Today screen is displayed.

  • Page 19: General Windows Keyboard Shortcuts

    Underlined letter in a command Carry out the corresponding command. name on an open menu Cancel the current task. Holding this key sequence down longer than needed to display the Start menu will cause a Hard Reset. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 20: Getting Help

    Getting Help Getting Help LXE user guides are now available on CD and they can also be viewed/downloaded from the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE”.
  • Page 21 Replacement US Power Cord 9000A066CBLPWRAC MX6 Software Development Kit (HHP Branded for PC 2002 units) MA6A501PPCSDK MX6 Software Development Kit (LXE Branded) MX6A502PPCSDK Power Cable / Cord not included Power Cable / Cord included Note: 8410A326SCNRALRDA9 can only be used in conjunction with the MX6 Vehicle Cradle due to base station power consumption.
  • Page 22 Getting Help MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 23: Chapter 2 Getting Started

    In Brief The sequence of events for a new MX6 PPC is: 1. Insert a fully charged battery. (Always put a fully charged battery in the MX6 PPC at the beginning of the shift or work day.) 2. Turn the MX6 PPC on by pressing the Power key.

  • Page 24: Insert Fully Charged Battery

    The Power key is located in the top left corner of the keypad. Press the Power key to turn the MX6 PPC on, place it into Suspend or to wake it from Suspend modes. You can also use the Scan key (or trigger if installed) to wake the MX6 PPC from Suspend.

  • Page 25: Connect External Power Supply (Optional)

    Connect External Power Supply (Optional) The MX6 PPC DC power jack is located at the base of the MX6 PPC. The main battery recharges when the MX6 PPC is connected to an external power source and the “Main Batteries are Charging”...

  • Page 26: Align The Touchscreen

    (+) as the target moves around the screen. When alignment is complete, press the Enter key (or tap the OK icon) to save the new alignment settings. You can also press the Esc key sequence to cancel or quit. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 27: Set The Date And Time

    Or you can type a new year value in the field. • Select OK and select Yes to save your changes or select No to exit without saving your changes and exit Clock. • Select Cancel to return to Clock Properties. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 28: Setting Display Backlight Action

    (if “Turn on backlight when a button is pressed or the screen is tapped” is checked). If the MX6 PPC is in Suspend, pressing the keypad backlight key has no effect – the MX6 PPC remains in the Suspend state.

  • Page 29: Dim Backlight If Device Is Not Used For

    If the backlight is not allowed to go off, the backlight remains on. Backlight Intensity You can set a different level for the intensity of the display backlight when the MX6 PPC is running on battery power and a different level to use when the MX6 PPC is running on external power.

  • Page 30: Set The Power Off Timer

    Set the Power Off Timer Note: Refer to the section titled "Power Modes" later in this guide for information relating to the power states of the MX6 PPC. Tap the Start | Settings | System | Power icon. On battery power: Turn off device if not used for Change the parameter value and tap OK to save the change.

  • Page 31: Accessing Files In Flash Memory

    CAB files stored in the AutoInstall folder within the IPSM folder are automatically unpacked following a hard reset. Restore default registry settings by deleting the RegBackup file in the IPSM folder and then perform a hard reset. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 32: Connect The Audio Jack (Optional)

    Connect the Audio Jack (Optional) The MX6 PPC audio jack is located on the side of the unit next to the scan aperture and the SDA door (Secure Digital Access). The internal speaker is disabled when the audio jack is connected.

  • Page 33: Adjust The Handstrap

    The MX6 PPC has an integrated elastic handstrap that provides a comfortable, secure grip on the unit. It is attached to the MX6 PPC with a clip on the bottom panel. The handstrap should be disconnected from the bottom clip when the main battery is to be removed or replaced. The handstrap can be removed from the MX6 PPC if desired.

  • Page 34: Enter Data

    RS-232 or the IR port are used to input/output data, and the keypad provides manual entry. MX6 PPC's with a touch screen and Microsoft Pocket PC software can use a stylus to input data, the COM ports and/or the keypad. A virtual keyboard is available in applications that expect keyed input.

  • Page 35: The Integrated Imager

    Figure 2-7 Scan and Decode LEDs To use the imager, aim the top of the MX6 PPC at a barcode and press the Scan key or press the trigger on the handle. The imager scans as long as the key or the trigger is held down before the 10 second timeout occurs.

  • Page 36: Unsuccessful Scan

    Any of these factors may result in having to re-scan the label from a different distance or angle. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 37: Chapter 3 Physical Description And Layout

    The MX6 PPC hardware configuration is shown in the following figure. Figure 3-1 System Hardware Central Processing Unit The LXE MX6 PPC CPU is a Intel Xscale PXA255 Processor running at 400 MHz. The operating system is Microsoft Pocket PC 2002 resident in flash memory. E-EQ-MX6PCRG-C-ARC...

  • Page 38: Core Logic

    TCP/IP and PPP network protocols. The Flash is configured as the primary boot device. The computer has one Secure Digital card (SD) slot. The MX6 PPC supports and auto detects up to 256MB of memory. SD cards are neither installed nor supported by LXE.

  • Page 39: Secure Digital Cards

    Anti-static protection is required when installing/removing cards. (Not supplied by LXE) • If you anticipate keeping a card out of the MX6 PPC for a long period of time place it in a static-free storage container. Store in an area that is protected from dirt, moisture, and electrostatic contact.

  • Page 40: Com Ports

    The COM 3 / 6 port is always the IR port on the left side of the MX6 PPC. It is accessed as COM3 for Raw Infrared communication and as COM 6 for Infrared communication using IrDA protocol.

  • Page 41: Rs-232 Serial Port

    Serial connection is made through an RS-232 Port designated as COM port 1. The connector is a custom, industrial 17-pin male connector. When seated in powered docking cradles, the MX6 PPC receives power through this connection and the main battery is charged. If the docking cradle is connected to a desktop / laptop computer, this connector also transmits data.

  • Page 42: Integrated Imaging Port

    A tethered scanner connected to the MX6 PPC is not supported by LXE. Look on the label on the back of the MX6 PPC. The type of installed scan engine should be clearly labeled and may be one of the following: •...

  • Page 43: Reset Or Reboot

    IPSM folder are lost and need to be reinstalled. LXE recommends that you always attempt a Soft Reset before initiating a Hard Reset. Once you initiate a hard reset, all applications are forcibly closed and working RAM and files are cleared. It is a good idea to store important data in Flash memory for this reason.

  • Page 44: Upgrading The Mobile Device Os

    • Any programs that were not saved to the IPSM folder need to be reinstalled. 6. Soft reset the mobile device afterwards. 7. Verify the changes. 8. Tap Start | HHP Utils | RegBackup to permanently save the settings. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 45: Power Modes

    Off. The MX6 PPC New Unit After a new MX6 PPC has been received, a charged main battery inserted, and the Power key tapped, the MX6 PPC is always On until both batteries are drained completely of power. E-EQ-MX6PCRG-C-ARC...

  • Page 46: Both Batteries Dead

    The Suspend mode is entered when the unit is inactive for a predetermined period of time or the user taps the Power key. The MX6 PPC does not enter Suspend when it is connected to AC power or when it is connected via ActiveSync unless it has been configured to do so. When connected to ActiveSync, the unit will enter Suspend if the Power key is tapped.

  • Page 47: The Keypads

    56-key 5250 Keypad Figure 3-7 The 35-key and 56-key Keypads See also: Appendix A Key Maps. Keys shown on the 35-key keypad that are inactive: Contrast Up Contrast Down Volume Up Volume Down Send and End E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 48: Special Keys

    MX6 PPC from sleep mode. Power Key The Power key puts the MX6 PPC into and wakes the MX6 PPC from Suspend mode. Shift (SFT) The Shift key toggles the keypad from upper case alphabet mode to lower case alphabet mode and back.

  • Page 49: Arrow Keys

    Note: Use <CTRL>+<F1> key sequence to get function key F7, <CTRL>+<F5> key sequence to get function key F11. These “second key” functions bypass the standard windows messaging sequence described above for F7 and F11. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 50: Touch Screen

    Touch Screen Touch Screen The MX6 PPC Touch Screen Display is a color LCD unit capable of supporting VGA graphics modes. Display size is 320 x 240 pixels in portrait orientation. The display covering is designed to resist stains. The touch screen allows signature capture and touch input. A pen stylus is included.

  • Page 51: Speaker

    Speaker The speaker is located on the back of the MX6 PPC. The speaker has a loudness of at least 87 dB (1500 Hz) at 10 cm measured from the back of the unit. The Speaker volume is adjustable via the keypad or the Settings or by an application through the use of an API call.

  • Page 52: Battery

    When the main battery has lost most of its charge, an icon of an “empty” or “half-empty” battery appears. The MX6 PPC maintains the date and time for a minimum of two days using a main battery that has reached the Low Warning point and a fully charged backup battery. The MX6 PPC retains data, during a main battery hot swap, for at least 5 minutes.

  • Page 53: Main Battery Pack

    Battery Hot-Swapping When the main battery power level is low, the MX6 PPC will signal the user with a warning dialog box on the display, a specific toolbar icon and a warning tone. The low battery warning notice and tones continue until the main battery is replaced, the battery completely depletes, or the MX6 PPC is placed in a powered docking cradle.

  • Page 54: Backup Battery

    The backup battery is a 450 mAh Lithium (Li) battery that is factory installed in the unit. The need for recharging of the backup battery is automatically detected and controlled by the MX6 PPC. The energy needed to charge the backup battery comes from the main battery.

  • Page 55: Charging The Main Battery Pack

    The Status LED flashes orange during the analyze phase, illuminates solid green when the analyze cycle has completed. When the cycle is complete, the Indicator LEDs display the current battery capacity of the battery in the charge/analyze slot. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 56: Charging A Battery Using The Desktop Docking Cradle

    MX6 PPC in the charging/communication slot . The MX6 PPC unit does not have to be in the main charging well because each charger operates independently of the other. The spare battery will charge in four hours.

  • Page 57: Indicators And Leds

    Serial data is being sent at high data rates. Note: IrDA transmission from a handheld MX6 PPC to or from a docked MX6 PPC does not require a powered cradle. See Also: Chapter 4 – System Configuration, Sections titled “ActiveSync”, “Infrared Receive”...
  • Page 58 Docking Cradles MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 59: Chapter 4 System Configuration

    Note: When a new battery is installed in the MX6 PPC for the first time (and when both batteries have been completely depleted), steps in Chapter 2 “Getting Started” will need to be performed. You can maintain an optimum charge level in the backup battery by connecting an external power source to the MX6 PPC every day.

  • Page 60: Software Load

    Software Load Note: Before setting WPA on an MX6 PPC using the Pocket PC 2002 operating system, an OS upgrade to Windows Mobile 2003 is required. The software loaded on the MX6 PPC computer consists of Windows for Pocket PC 2002, hardware-specific OEM Adaptation Layer, device drivers, MS Pocket Internet Explorer browser and utilities.

  • Page 61: The Start Menu

    For general use instruction, please refer to commercially available Pocket PC user's guides or the on-line Help application installed with the MX6 PPC operating system. The Start menu appearance is similar to that of a hand held Palm organizer. The default bootup screen is Today.

  • Page 62: Inbox

    There are few changes in the Pocket PC version of Inbox as it relates to the general desktop Windows PC Microsoft Outlook Inbox options. Tap Start | Help to access Inbox Help. ActiveSync® can be used to transfer messages between the MX6 PPC inbox and a desktop PC inbox.

  • Page 63: Programs Options

    Imaging Port for the Image Demo, IQImage Demo and Scan Demo. Image Demo Scan an image. IQImage Demo Review an image. Scan Demo Scan an image or barcode. Signature Capture Establish signature patterns for handwriting data entry using the stylus. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 64: Hhp Utils

    Renew the IP address button Pressing this button renews the MAC address, IP address, Subnet Mask and Gateway data. Display full configuration button Pressing this button displays the Windows IP configuration for the 802.11 card and adapter. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 65: Ping

    Enter the following data and then tap Execute to add to the routing table: Destination, Netmask, Gateway, Metric and Interface. Delete Enter a destination and tap Execute to delete routes with a given destination. Clear Use this command to clear the routing table of all gateway entries. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 66: Rasman

    Start | Programs | HHP Utils | ScanWedge Note: If you are NOT using LXE’s RFTerm application to manage barcode scanning, select Start | Programs | HHP Utils | ScanWedge before scanning a barcode. Tap this icon before scanning a barcode. When the barcode reader program is active, an icon resembling a barcode is located in the Toolbar.

  • Page 67: Sysinfo

    Access: Start | Programs | HHP Utils | SysInfo Tapping this icon displays a text file containing the current settings for the MX6 PPC, e.g. hardware/software version numbers, etc. Tap File | Save to File to create a separate file copy of the SysInfo listing.
  • Page 68 System Configuration If the MX6 PPC is already in a docking cradle connected to a PC, remove and reinsert the MX6 PPC into the cradle. If the MX6 PPC is connected to a PC by RS-232/USB cable, disconnect the cable from the MX6 PPC and reconnect.

  • Page 69: Tools

    System Configuration Synchronizing from the MX6 PPC You must have set up ActiveSync on your desktop computer and completed the first synchronization process before you initiate synchronization from your device. To initiate synchronization from your device, tap Start, then ActiveSync to begin the process.

  • Page 70: File Explorer

    Start | Programs | Pocket Excel There are few changes in the version of Pocket Excel as it relates to the general desktop PC Windows Microsoft Excel application. Tap Start | Help for context-sensitive help. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 71: Pocket Word

    Microsoft Word templates (.DOT files) are converted to Pocket Word templates (.PWT). Tap Start | Help for context-sensitive help. When ActiveSync transfers .PWD files to the desktop from the MX6 PPC, the file is converted to .DOC files by ActiveSync.

  • Page 72: Settings Options

    Input Method Keyboard Keys Small keys Word Completion Suggest Add Space after Voice Recording 8,000 Hz Capitalize Scroll Use this option to select Character Recognition or the keypad (including the virtual keyboard) when entering data. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 73: Menus

    Once a password is assigned, and the timer set in “Prompt if device unused for …” expires, when the MX6 PPC wakes from Suspend the user will need to enter the password before using the MX6 PPC. If you forget the password, it cannot be restored without performing a cold boot on the unit (which erases all memory).

  • Page 74: Sounds And Notifications

    Set the timer for displaying the Today screen when the device is idle. The default is 4 hours. Tap the OK button when finished. Changes take effect immediately. Themes may or may not be loaded on your device. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 75: System Tab

    MX6 PPC owner name. Device ID The default device name used to identify the MX6 PPC to other computers is “Pocket_PC”. The description is blank. You can make changes and tap the OK button. The changes take effect immediately.

  • Page 76: Clock

    The default CPU speed is 400 MHz. You can select the desired CPU speed by selecting either Low Speed (200 MHz) or High Speed (400 MHz). The CPU speed is immediately changed. Note: Help is not available for this option. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 77: 802.11B Wlan Settings

    Start | Settings | System tab | WLAN Settings Prerequisites for a new system setup: • Network SSID number of the Access Point for the MX6 PPC • WEP or LEAP Authentication Protocol Keys (LEAP requires Meetinghouse Software described later in this chapter.)
  • Page 78 Click this button to open the Ping Utility for WLAN. Shows the network name and the MAC address of the access point the radio BSS ID card is associated with in the AP mode. This value cannot be changed by the user. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 79: Ping Utility

    Click this button to view the contents of the routing table in ASCII format. Ping Statistics field: Shows the pinging IP address and the pinging results. Clear Click this button to clear IP Address input and the ping statistics field. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 80: Config Tab

    Figure 4-5 WLAN Settings – Config Screen The Config tab provides a list of all access points and peer stations in range of the MX6 PPC radio. This configuration tool is used to create and edit SSID profiles for access points that the user wants their station to associate with.

  • Page 81: Active Ssids

    If adding an SSID with WEP Key Off, the Settings window does not display and the SSID is added directly to the Preferred Profile table when the Add button is clicked. Note: See the following section titled “Creating and Modifying Profiles” for instruction. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 82: Advanced Tab

    Long Tx Preamble Sync field consists of 128 bits. Short Tx Preamble Sync field consists of 56 bits. Auto Tx Preamble Automatically changes between long and short preamble mode transmission based on the access point configuration. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 83: Authentication Algorithm

    This menu option displays the Version Number and time of build for the Network Driver, Configuration Utility, and NIC Firmware. The information on this screen cannot be changed by the user. Figure 4-7 WLAN Settings – About Screen E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 84: Creating And Modifying Profiles

    Start | Settings | System tab | WLAN Settings | Config tab Prerequisites: • Network SSID number of the Access Point for the MX6 PPC • WEP or LEAP Authentication Protocol Keys (LEAP requires Meetinghouse software described later in this chapter.) Check with your network administrator for the security WEP Key and the Key ID you need to use.

  • Page 85: Create A New Profile

    TX Rate Choose 1Mb, 2 Mb, Auto 1/2 Mb, 5.5 Mb, 11 Mb, or Fully Auto from the menu. The transmit rate is Fully Automatic by default. Chan Channel. Scroll to select a channel for communication. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 86: Wep

    Choose from the available options: Key 1 (Default) Key 2 Key 3 Key 4 Click OK to make the changes, close this screen and save the changes. Click Cancel to ignore all changes made on this screen. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 87: Deleting A Profile

    (highlight) a profile and click the Delete button and the following screen displays: Figure 4-9 Delete a Profile From the pop-up window select the option of your choice and click Yes to confirm or No to cancel. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 88: Wireless Status Icon In Toolbar

    If the Status Icon changes to a crossed lock , it warns you that you may have entered a wrong key (WEP Key mismatch) for the WEP-On AP or a station. Note: You can also go to Start | Programs | WLAN Settings. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 89: Meetinghouse Aegis Client

    Brings up the Protocol Configuration Dialog, which contains the identity and protocol values which apply to all the adapters used by the authentication engine. Install Protocol Bind the 802.1X protocol to any port (adapter) currently active. Exit Exit the Client and terminates the authentication engine. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 90: Protocol Configuration

    Certificate issuer must be Select the CA which signed the server certificate, or "Any Trusted CA". Allow intermediate certificates Allow unspecified certificates to be in the server certificate chain between the server certificate and the specified “Certificate issuer”. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 91: Port Configuration

    Authentication status is indicated by the color of the tray and port icons. Yellow Authentication has started. Green Success. Orange Associated but no response to radio packets. Failure. Blue No radio activity. Gray Port is disabled. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 92: Logging

    License ID" presented in the text of the Register dialog is entered into this field. License Key A case sensitive field obtained by registering the client. When both fields contain proper values, selecting "OK" completes the licensing process. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 93: Memory

    Use this screen to determine the status of Radio Modes or select a mode and tap the Apply button on the screen. Tap OK when changes have been made or to close the window with no changes made. Context sensitive Help is not available for this option. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 94: Regional Settings

    User installed device drivers, when removed, require a cold boot to completely remove the program. You can also adjust memory allocated for programs by tapping the “Adjust memory allocation” link at the bottom of the screen. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 95: Screen

    You can also press the Esc key sequence to cancel or quit. Select “Enable ClearType” to smooth the edges of screen fonts displayed. Select “Adjust input options … “ link to improve speed and accuracy when using the stylus. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 96: Connections Tab

    PPC will automatically receive all incoming InfraRed transmissions. InfraRed Receive must be enabled on the receiving device, if sending IR from the MX6 PPC to another device. To send a file using IR, first locate the file you want to send. Tap and hold the file, then tap Beam Item on the pop-up menu.

  • Page 97: Connections

    Start | Settings | Connections tab | Dialing Locations tab Factory Default Settings Location Work Local Settings Area Code Country code Dialing Patterns Local calls Long distance 9,1FG International 9,011,EFG Tap OK to close this menu option. Any changes made are in effect immediately. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 98: Network Adapters

    Blank Default Gateway Blank Name Servers Blank Alt DNS Blank WINS Blank Alt WINS Blank Tap OK to close this menu option. Any changes made are in effect the next time the adapter is used. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 99: Find

    Help Access: Start | Help There are few changes in the Pocket PC version of the Windows Help program as it relates to the general desktop PC Windows Help program. Tap OK to close Help. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 100 System Configuration MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 101: Appendixa Key Maps

    Enter CapsLock (Toggle) double-tap the Sft Back Space Bksp BackTab Break Pause Up Arrow Up Arrow Down Arrow Down Arrow Right Arrow Right Arrow Left Arrow Left Arrow Insert Delete Home Page Up Up Arrow E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 102 Page Down Down Arrow 2,2,2 3,3,3 4,4,4 5,5,5 6,6,6 7,7,7 7,7,7,7 Pressing F6, F7 or F11 produces Windows messages. See Chapter 3 “Physical Description and Layout “ section titled “Function Keys” for explanation and instruction. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...
  • Page 103 To Get This Key / Function Press This Key Caps Blue Ctrl Alpha Lock 8,8,8 9,9,9 9,9,9,9 2,2,2 3,3,3 4,4,4 5,5,5 6,6,6 7,7,7 7,7,7,7 8,8,8 9,9,9 9,9,9,9 Either press SFT or activate CapsLock when capital letters are needed. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 104 Use Soft Keypad Use Soft Keypad Use Soft Keypad _ (underscore) , (comma) Use Soft Keypad ‘ (apostrophe) Use Soft Keypad ~ (tilde) Use Soft Keypad Use Soft Keypad “ Use Soft Keypad 2 or Blue+F6 MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 105: Inactive Keys On The 35-Key Keypad

    To Get This Key / Function Press This Key Caps Blue Ctrl Alpha Lock & Use Soft Keypad Use Soft Keypad Inactive Keys on the 35-key Keypad Contrast Up Contrast Down Volume Up Volume Down Send and End E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 106: 56-Key Full Alpha Numeric Keypad

    Bksp BackTab Break Pause Print Screen Scroll Lock Up Arrow Up Arrow Down Arrow Down Arrow Right Arrow Right Arrow Left Arrow Left Arrow Insert Delete Home Page Up Up Arrow Page Down Down Arrow MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...
  • Page 107 Appendix A Key Maps Press These Keys and Then … To Get This Key / Function Press This Key Caps Blue Ctrl Shift Lock E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 108 Appendix A Key Maps Press These Keys and Then … To Get This Key / Function Press This Key Caps Blue Ctrl Shift Lock Press Sft, then Red, then “y” MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...
  • Page 109 Use Soft Keypad > Use Soft Keypad Use Soft Keypad Use Soft Keypad Use Soft Keypad Use Soft Keypad , (comma) . (DOT) : (colon) ; (semicolon) . (period) . (DOT) Caps Lock must be On. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...
  • Page 110 ~ (tilde) Use Soft Keypad Use Soft Keypad Use Soft Keypad “ Alt+34 B or Sft + 2 & Hold down the Alt key while typing 39 Hold down the Alt key while typing 34 MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 111: Appendixb Technical Specifications

    Main Li-Ion battery pack In-Unit Chargeable or Externally 7.4V 14.8Ah Chargeable Backup Lithium (Li) Automatically charges from main battery (CMOS) 5.7V max. during normal operation Memory operational for 48 hours when main battery is depleted E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 112: Display Specifications

    Water and Dust IP64 Operating Humidity Up to 90% non-condensing at 104°F (40°C) Approvals / Standards See “MX6 PPC User’s Guide”, Appendix B. Contamination Resistant to exposure to skin oil and other lubricants. Vibration Based on MIL Std 810D 15kV direct contact Shock Multiple 1.5m (5’) drops to concrete.

  • Page 113: Appendixc Mx6 Multicharger

    Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about proper disposal, contact LXE through your local sales representative, or visit www lxe com.

  • Page 114: Using The Multicharger

    The status LED for that slot illuminates orange when the battery has been properly inserted. Remove the battery pack by pushing the locking tab down and then pulling the battery out of the slot with a hinging motion. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...

  • Page 115: Charging

    When this slot is being used to analyze a battery, the Status LED functions as follows: Solid Green Has completed the Analyze cycle. Flashing Orange Is being analyzed. Solid Red Encountered an error during the Analyze cycle. E-EQ-MX6PCRG-C-ARC MX6 PPC Reference Guide...

  • Page 116: Technical Specifications

    The red status LED remains on An error occurred during the self-diagnostic test for that without a battery in the charging particular charging slot. Contact LXE Technical Services. slot. MX6 PPC Reference Guide E-EQ-MX6PCRG-C-ARC...
