3.2 ANALOG OUTPUT RANGE JUMPERS

The analog output voltage range of each channel is set with a jumper. The jumpers
are located on the board directly below the calibration potentiometers and are labeled
J1 through J8 on the DAC08 and. J1 through J16 on the DAC16.
Set the jumpers for an individual channel as shown in Figure 3-2.
The available ranges are:
0 to 5V (Unipolar)
0 to 10V (Unipolar)
±5V (Bipolar)
±10V (Bipolar)

3.3 UNIPOLAR/BIPOLAR INITIAL ZERO STATE JUMPER

The CIO-DAC16/16 and DAC08/16 boards have a unipolar/bipolar jumper which
selects the unipolar/bipolar initial zero state of the DAC output on either power-up or
reset. There is a single jumper for the entire board (Figure 3-3). This jumper is
located near the ISA bus connector.
At power-up, the value in the DACs will be set according to Table 3-2.
State of UNI/BIP
Jumper
UNI
BIP

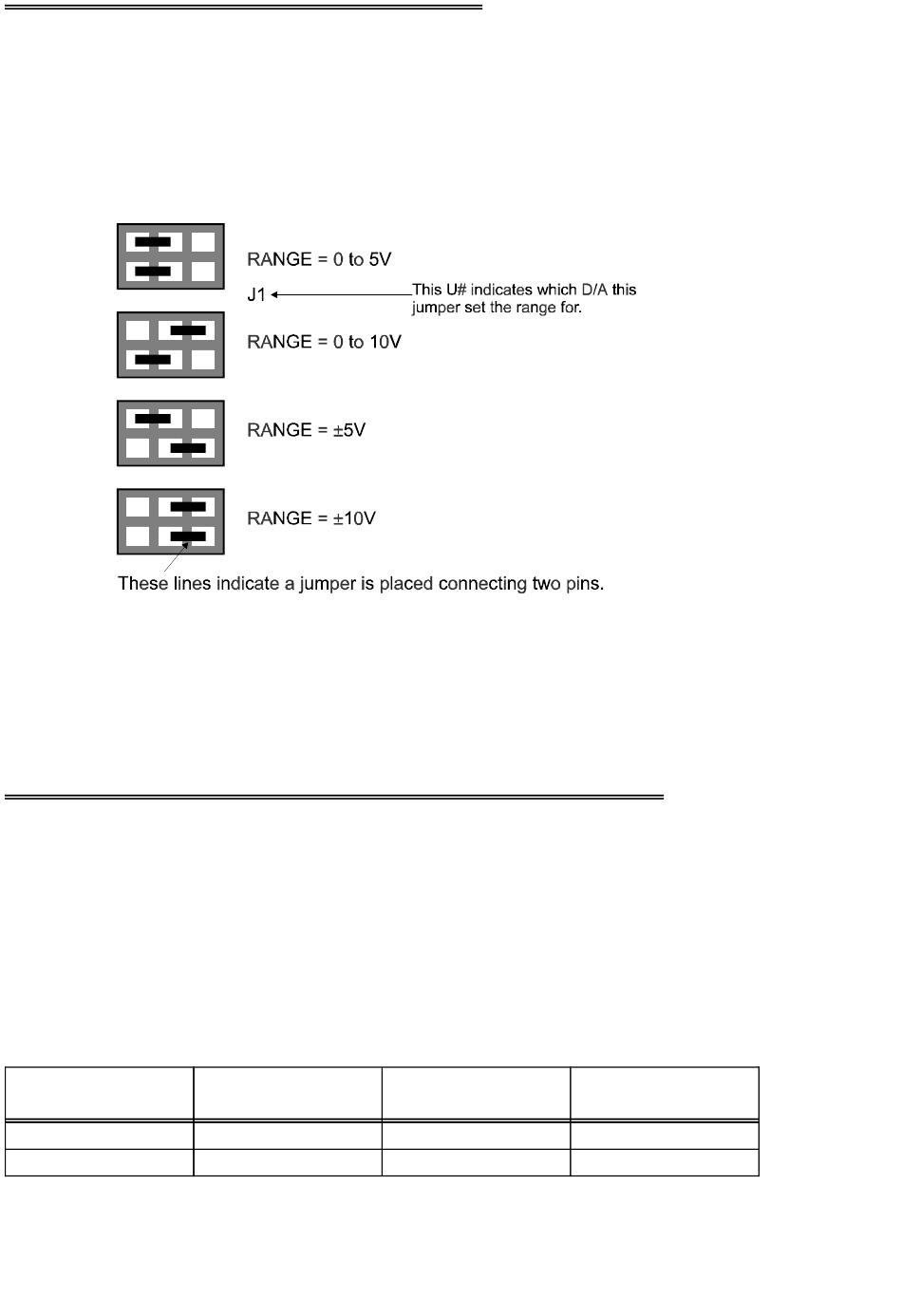

Figure 3-2. Range Jumpers
Table 3-2. DAC Initial States at Power-up
DAC Code
0
32768
IF DAC set for
Unipolar Output
0.000
Mid Scale
4
If DAC set for
Bipolar Output
Minus Full Scale
0.000
