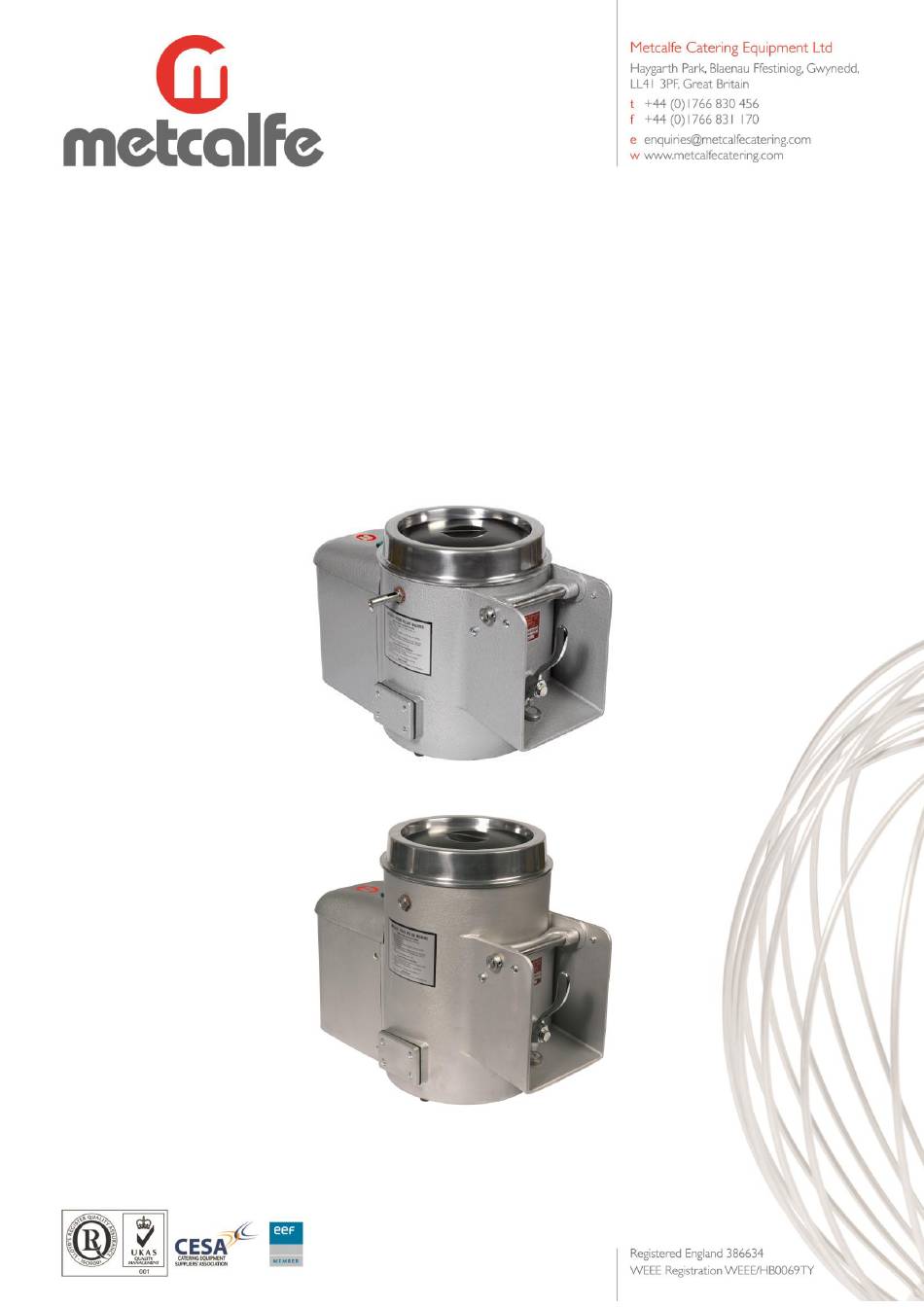

- Page 1 METCALFE 10LB & 15LB POTATO PEELER Installation and Operating Instructions P a g e...
-
Page 2: Table Of Contents
INDEX YOUR PEELER..................2 TECHNICAL DATA SHEET 10LB PEELER........... 3 TECHNCIAL DATA SHEET 15LB PEELER........... 4 INSTALLATION..................5 WATER SUPPLY..................5 WASTE OUTLET CONNECTION ..............5 WASTE DISPOSAL ADAPTER..............5 WASTE DISPOSAL ADAPTER AJUSTMENTS..........5 TUNDISH....................6 TROLLEY INSTALLATION................ 6 PEDESTAL INSTALLATION .............. -
Page 3: Your Peeler
YOUR PEELER Rubber Lid On / Off Switches Top Casting Water Inlet Door Gasket Power Cord Rotor Plate Waste Outlet Door Cam Motor Casing Peeling Chamber Guarded Chute Attachment Holes P a g e... -
Page 4: Technical Data Sheet 10Lb Peeler
10LB BENCH POTATO PEELING MACHINE The Metcalfe 10lb (4.5 Kg) potato peeling machine is constructed from food grade, non-corrosive aluminium alloy castings, with the spindle housing and chute cast integrally, eliminating joints and possible leakage. FEATURES Constructed from food grade, non-corrosive, aluminium alloy castings ... -
Page 5: Techncial Data Sheet 15Lb Peeler
15LB BENCH POTATO PEELING MACHINE The Metcalfe 15lb (6.8 Kg) potato peeling machine is constructed from food grade, non-corrosive aluminium alloy castings, with the spindle housing and chute cast integrally, eliminating joints and possible leakage. FEATURES Constructed from food grade, non-corrosive, aluminium alloy castings ... -
Page 6: Installation
INSTALLATION The machine should be placed on a bench/worktop or draining board with the discharge chute overlapping a sink. If supplied with a pedestal or trolley, see installation instruction on how to securely fit to both the pedestal and trolley. Water Supply The water inlet nozzle connecter is supplied and fitted to the machine (on right- hand side), and has two possible inlet locations on either side of the machine,... -
Page 7: Tundish
1999” “Water Byelaws 2000 (Scotland)”. The Metcalfe tundish is a WRAS approved (WRAS1001007) type AA air gap. The tundish is fitted in place of the standard water inlet supplied with all Metcalfe peelers. (* available as optional extra) Trolley Installation * The peeler can be mounted onto a trolley. -
Page 8: Operation
OPERATION The machine works off 230volt 50Hz 1 Phase supply, and comes fitted with a 3-pin 13amp fused plug. 1. Turn on the machine by pressing the green start button. 2. Turn on the water supply. 3. Ensure that the chute door is closed. 4. -
Page 9: Maintenance
MAINTENANCE Other than regular cleaning Metcalfe Potato Peelers require no maintenance by the end user. HOW TO ADJUST DOOR CAM If the door becomes loose during operation, a door cam is fitted in order for the operator to retighten the door. -
Page 10: How To Replace Shaft & Bearing Assembly
HOW TO REPLACE SHAFT & BEARING ASSEMBLY 1. Turn the machine upside down and fit the bottom bearing into the housing from underneath the machine, ensuring it is flush with the base of the peeler. 2. Stand the machine back upright and fit the first bearing along with the bearing spacing collar onto the shaft. -
Page 11: Tensioning V-Belt
6. Refit the motor cover, and pull the cable back through SPARE PARTS AND SERVICE For more information on Metcalfe Spares / Accessories and Service Support, please always quote the Serial Number of the machine. This can be found on the serial number plate (as shown below) Contact us on the details below;... -
Page 13: Spares Part List
TP06 PULLEY FOR MOTOR - 10LB & 15LB TM04M MOTOR STUD (METRIC) 2.1/2" PM01SF MOTOR, 1/3 H.P. 250W, 220/240V 50HZ - 10LB & 15LB 9T14 RUBBER FOOT WITH SCREW- 10LB & 15LB WDC15 CABLE, 2.5M LONG, PLUGGED, 13 AMP TC04... -
Page 14: Warranty
Blender clutches Knives and gears on can openers Sharpening of slicer blades Metcalfe and its suppliers reserve the right to make changes in design and specification to any product without prior notification. 13 | P a g e... -
Page 15: Notes
Notes 14 | P a g e... -
Page 16: Electrcial Pat Test Certificate
15 | P a g e...
