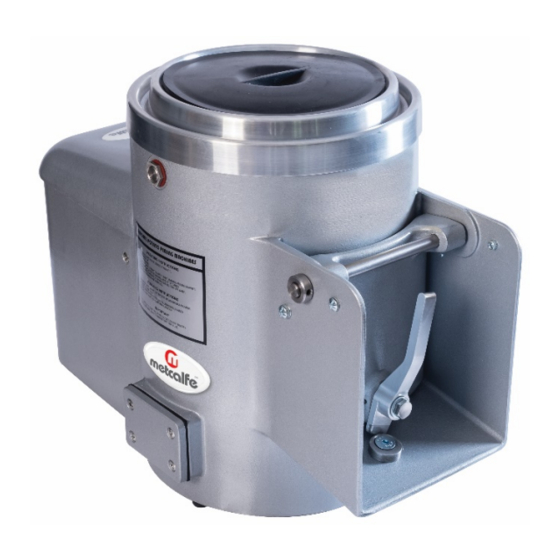

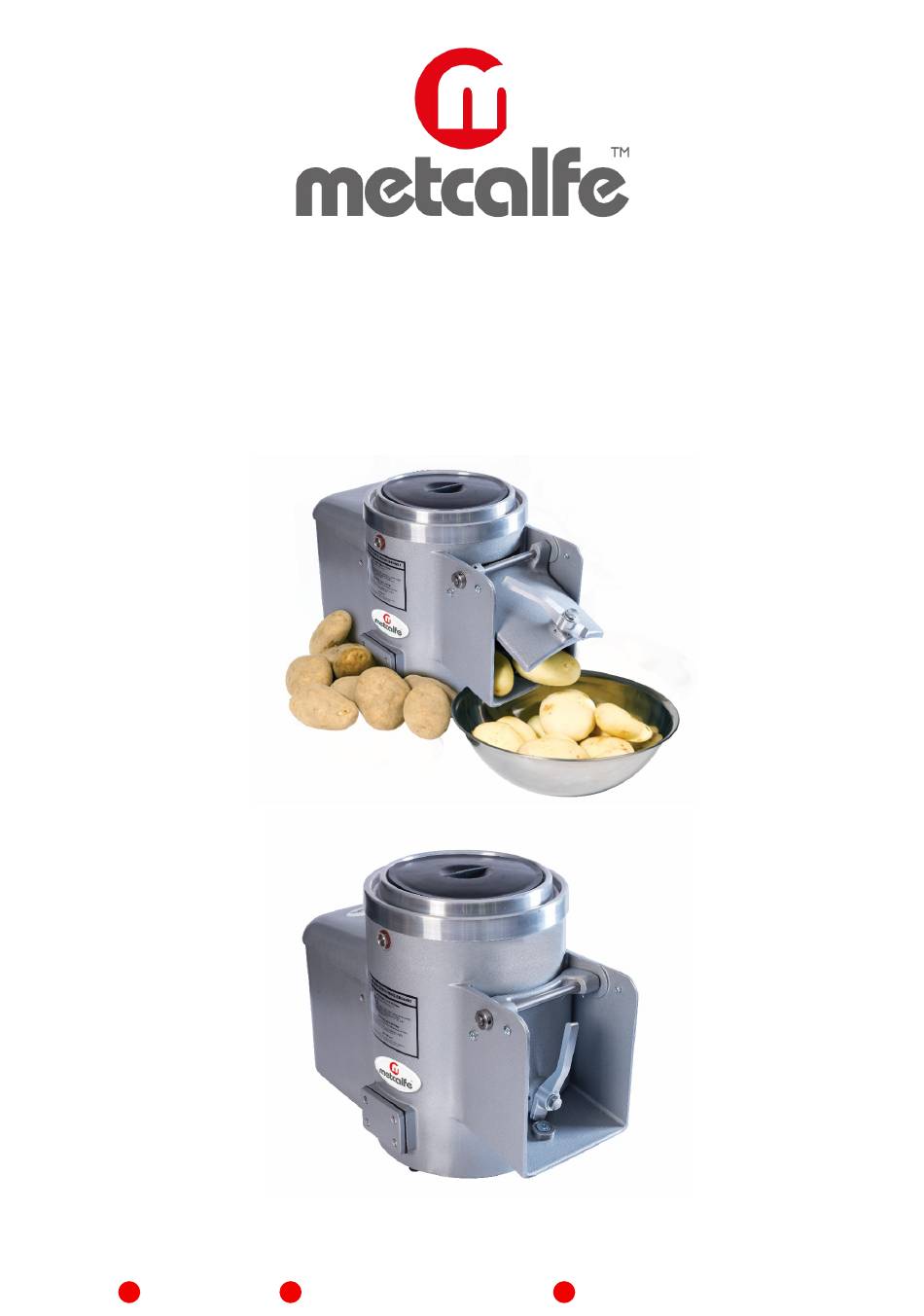

- Page 1 Metcalfe EP10, NA10, EP15 & NA15 10lb (4.5kg) & 15lb (6.8kg) Bench Mounted Peelers Installation & Operating Instructions EP10 NA15 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 3: Table Of Contents
Index Your Peeler ....................Technical Data ……………………..…………………............. Optional Extras ....................Installation ....................- Trolley Installation ................. - Pedestal Installation ..............- Water Supply Connection ..............- Waste Outlet Connection ..............- Installation Kit …………..............- Waste Disposal Adaptor …………............- External Interceptor …………………………………………………………………….. - Tundish .................. -
Page 4: Your Peeler
Your Peeler Rubber Lid Aluminium Water Inlet On / Off Switches Door Handle Rubber Door Gasket Rotor/Peeling Motor Casing Plate Cover Waste Outlet Door Cam Peeling Chamber Guarded Chute Attachment Holes (optional extra) -
Page 5: Technical Data
Metcalfe Bench Potato Peeling Machines The Metcalfe 10lb (4.5Kg) and 15lb (6.8Kg) potato peeling machines are constructed from food grade, non-corrosive aluminium alloy castings, with the spindle housing and chute cast integrally, eliminating joints and possible leakage. Features Available in natural aluminium or a grey hammer paint finish •... - Page 6 EP10 & NA10 Drawing EP15 & NA15 Drawing...
-
Page 7: Optional Extras
Product Code (Painted Finish) 9T19 (Stainless Steel) 9T24 Sink Skip Metcalfe sink skip designed for use with both the 4.5kg & 6.8kg potato peelers. Prevents potato peelings from going down the drain. Product Code TS06 Length of Waste Pipe, Metcalfe waste pipe elbow &... - Page 8 Tundish The tundish is fitted in place of the standard water inlet supplied with all Metcalfe peelers. The use of a tundish meets the requirements of water regulations G19.1, G19.3 & G19.4 contained in “The Water Supply Regulations 1999” and the “Water Byelaws 2000 (Scotland)”...
-
Page 9: Installation
• Remove the pedestal and drill holes at these marks. • Secure the pedestal to the floor using M12 rawl bolts (not supplied by Metcalfe Catering Equipment Ltd). -
Page 10: Water Supply Connection
Water Supply Connection The water inlet nozzle connector is supplied and should be fitted to the outside of the machine facing upwards. It has two possible inlet locations, one on either side of the machine, whichever is more convenient for your installation. 1. -
Page 11: Installation Kit
Installation of Optional Extras Installation Kit (optional extra) Comprises a Sink Skip, Length of Waste Pipe, Elbow & Coupling, 3ft Length Water Inlet Hose & Tap Connector. This image shows a typical installation utilising the kit. Waste Disposal Adaptor (optional extra) The waste disposal adaptor enables the waste pipe to be connected direct to the drain. -
Page 12: External Interceptor
The use of a tundish meets the requirements of water regulations G19.1, G19.3 & G19.4 contained in “The Water Supply Regulations 1999” and the “Water Byelaws 2000 (Scotland)”. The tundish can be fitted instead of the standard water inlet nozzle supplied with all Metcalfe peelers. -
Page 13: Operation
Operation Full operational instructions can be found on the side of each peeler. The machine works off 230volt 50Hz 1 Phase supply and comes fitted with a 3-pin 13amp fused plug. 1. Ensure that the chute door is closed. 2. Turn on the machine by pressing the green start button. 3. -
Page 14: Maintenance
Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, including breakdown drawings and parts lists please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the motor cover. -
Page 15: Warranty
2 year parts only) and full after sales service. All Metcalfe SP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. There is a limited 6-month warranty on the following: •... -
Page 16: Other Products In Our Portfolio
Some other products in the Metcalfe portfolio: NS Slicer Range Mixer Range Ceado Roband 3/2021 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
