- Page 1 Metcalfe Ti22R Meat Mincer Installation & Operating Instructions 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 3: Table Of Contents
Index Your Mincer ………………………………………………………………………………………….. Technical Data …………………………………………………………………………………………. Optional Accessories ………………………..........Installation - Unpacking ..................- Location ................... - Electrical Connection ………………………………………………………………… Operation ………………………………………………………………………………………………….. Cleaning Instructions ..................Troubleshooting ……………………………………………………………………………………….. Spare Parts & Service Contact Details ............Warranty ...................... -
Page 4: Your Mincer
Your Mincer 1. Loading hopper 2. Machine body 3. Control switch ON / OFF 4. Mouth lock lever 5. Locking handwheel 6. Machine neck Grinding Unit Assembly 1. Grinding mouth/mincing barrel 2. Feed screw 3. Cutting knife 4. Drilled extrusion plate (6mm) 5. -
Page 5: Technical Data

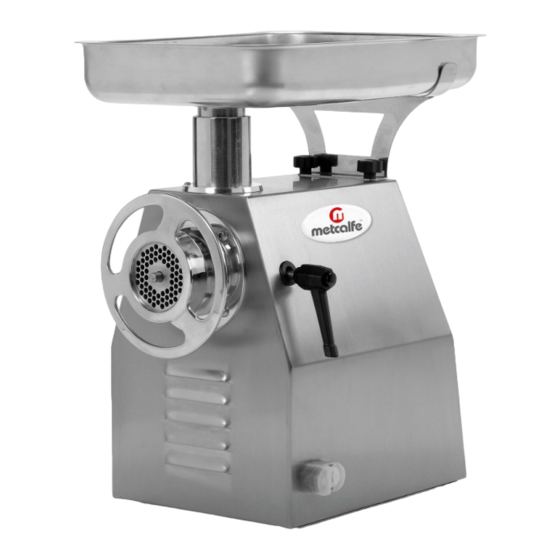

Metcalfe Ti22R Meat Mincer The Metcalfe Ti22R is a heavy-duty meat mincer offering excellent performance with an output of up to 400kgs of meat per hour. Features Structured in cast alloy covered entirely in stainless steel • Output of up to 400kg per hour •... -
Page 6: Optional Accessories
Optional Accessories If you require a finer or coarser grind there are a range of different sized extrusion plates available. Please contact our sales department (see page 9 for contact details): Part No. Product Description FM0410/3 Extrusion Plate – 3mm FM0411/3.5 Extrusion Plate –... -
Page 7: Installation
Installation Unpacking Unpack the mincer immediately after receipt. Please inspect the mincer to ensure no damage has occurred in transit and that all parts have been provided. If the machine is found to be damaged, keep all the packaging material and contact us immediately or contact your source of the equipment. Never attempt to operate the machine with damaged parts. -
Page 8: Operation
Operation • The mincer is designed to mince fresh meat only, not frozen. • The meat must be free of bones or other parts. • DO NOT feed meat into the appliance by hand. ALWAYS use the pusher supplied • DO NOT use fingers to clear the exit hole while the appliance is turned on •... -
Page 9: Cleaning Instructions
If the machine is making unusual noises or traces of oil are found on the feed screw or elsewhere, the machine must be turned off and an engineer visit arranged. WARNING – IF EQUIPMENT DOES NOT WORK, PLEASE ENSURE IT IS SERVICED BY A METCALFE APPOINTED ENGINEER... -
Page 10: Spare Parts & Service Contact Details
Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, including breakdown drawings and parts lists please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the machine. -
Page 11: Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers and EC20 chipper are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. - Page 12 NS Slicers Potato Peelers Ceado Roband 3/2022 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
