NOVOFLEX MagicBall MB MINI User Manual

The MagicBall® can be perfectly com-
•
bined with a quick release unit such as
the NOVOFLEX MiniConnect or the
Q=BASE. The two coupling systems
provide a fast and secure connection
between the camera equipment and
the ball head.
While the NOVOFLEX Q-system is
consistently integrated into the widely
used ARCA Swiss standard, the Mini-
Connect is small and inconspicous, but
with an untraceable holding force.
Technical Data: MB MINI
Height x Length x Base Ø 75 x 110 x 35 mm
2.95 x 4.3 x 1.4 "
Support pad 45 x 30 mm
1.8 x 1.2 "
Ball Ø 40 mm / 1.6 "
Weight 330 g / 0.7 lbs
Load capacity 5 kg / 11 lbs
Information
For more information, advice and tips concerning our products contact your photo dealer,
the distributor of NOVOFLEX products in your country (have a look at "Where to buy" sec-
tion at our website to find your distributor) or visit our website: http://www.novoflex.com
For personal advice about possible accessories which is suitable for your NOVOFLEX
product please contact the following phone number or send us an E-mail.
NOVOFLEX Phone: +49 8331 88888
NOVOFLEX E-Mail: mail@novoflex.com
© NOVOFLEX Präzisionstechnik GmbH
Phone +49 8331 88888, Fax +49 8331 47174
Email mail@novoflex.com, Internet www.novoflex.com
MiniConnect
MB 50 MB
90 x 150 x 42 mm 105 x 160 x 50 mm
3.5 x 5.9 x 1.65 " 4.1 x 6.3 x 2.0 "
52 x 34 mm 55 x 40 mm
2.0 x 1.3 " 2.2 x 1.6 "
50 mm / 2.0 " 60 mm / 2.4 "
610 g / 1.34 lbs 920 g / 2.0 lbs
7 kg / 15.4 lbs 10 kg / 22 lbs
Brahmsstraße 7
D-87700 Memmingen
MagicBall®
USER MANUAL
Congratulations on your acquisition of the
MagicBall®, the revolutionary new ball and
socket head. Whilst you should have no diffi-
culty in using your MagicBall®, you may find
the following explanations useful.
Product description

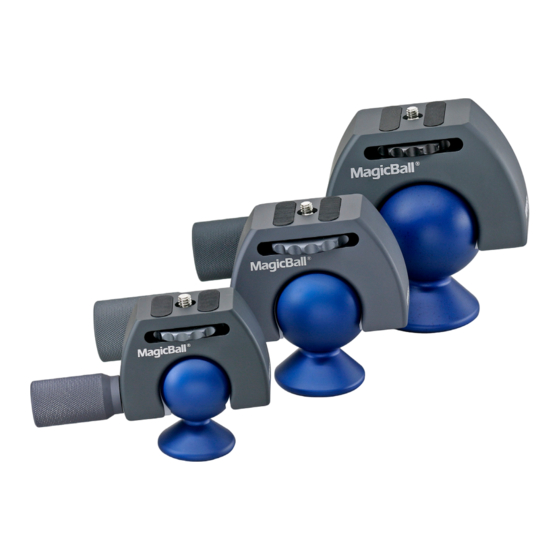

The MagicBall® is available in three sizes (MB MINI, MB50 and MB) and provides an
unbelievable positioning range of 120° in virtually any plane. All three models are easy to
handle and compatible with practically any tripod (1/4" and 3/8" connection). Part of the
secret is the large, grippy point-and-fix handle. The handle is used to position the MagicBall
exactly, then a simple twist fixes it firmly in place. The outstanding design and use of only
the finest materials blocks any vibration transfer. The knurled wheel makes for simple and
safe camera mounting.
MB
MB 50
MB MINI
