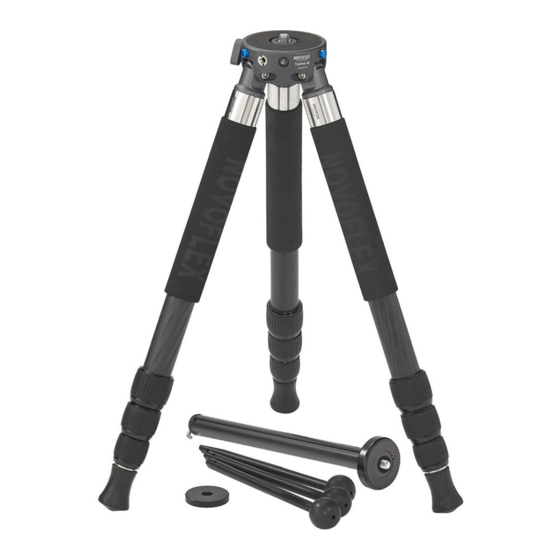

NOVOFLEX TrioPod-M User Manual

Adjust the movement of the tripod
legs
The supplied Allen-key can be used to tighten
or loosen each individual leg connector at the
tripod base.
Please note: For an optimal vibration-damping
please tighten the leg connectors in such a way
that the legs do not fold on their own when the
tripod is lifted.
Technical data: TrioPod-M tripod base
Weight (with center column)
Weight (without center column)
Tripod base diameter
Upper threaded screw (base, with center column)
Upper threaded screw (base, without center column)
Base increase by means of a central column
Side accessories connectors
Locking angle of the leg connectors
Information
For more information, advice and tips concerning our products contact your photo dealer, the
distributor of NOVOFLEX products in your country (have a look at "Where to buy" section at
our website to fi nd your distributor) or visit our website www.novofl ex.com
For personal advice about possible accessories which is suitable for your NOVOFLEX product
please contact the following phone number or send us an E-mail.
Novofl ex Phone.: +49 8331 88888
Novofl ex E-Mail: mail@novofl ex.de
© Novofl ex Präzisionstechnik GmbH
Phone +49 8331 88888, Telefax +49 8331 47174
Email mail@novofl ex.de, Internet www.novofl ex.com
Page 8
650 g / 1.43 lbs
495 g / 1.09 lbs
Ø 80 mm / 3.15"
1/4" and 3/8"
3/8"
270 mm / 10.6"
2 x 1/4" + 2 x 3/8"
20°, 40°, 60° and 87°
Brahmsstraße 7
D-87700 Memmingen, Germany
TrioPod-M
USER MANUAL
