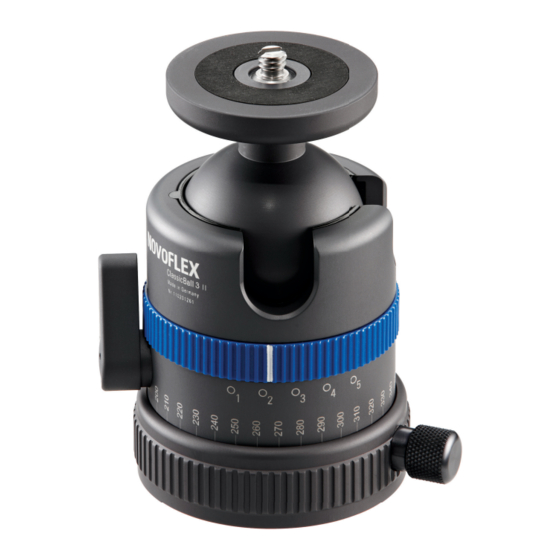

NOVOFLEX ClassicBall CB3-II User Manual

• You can set the friction to suit the weight of your camera. The set value is not changed by
locking and releasing the head.
• The ball in your ClassicBall does not need lubrication. Never apply grease or oil to the ball
head.
• Head operation is self-cleaning. Nevertheless, try to avoid getting sand or dust into the mech-
anism (wipe the ball with a clean, dry cloth).
Information
For more information, advice and tips concerning our products contact your photo dealer, the
distributor of NOVOFLEX products in your country (have a look at the "Where to buy" section
at our website to fi nd your distributor) or visit our website www.novofl ex.com
For personal advice about possible accessories which is suitable for your NOVOFLEX product
please contact the following phone number or send us an E-mail.
NOVOFLEX Phone: +49 8331 88888
NOVOFLEX E-Mail: mail@novofl ex.com
© Novofl ex Präzisionstechnik GmbH
Phone +49 8331 88888, Fax +49 8331 47174
Email mail@novofl ex.com, Internet www.novofl ex.com
Brahmsstraße 7
D-87700 Memmingen
ClassicBall
Technical data
ClassicBall variant CB 2
Height 82 mm / 3.2 "
Base Ø 52 mm / 2.0 "
Support plate Ø 40 mm / 1.6 "
Weight 315 g / 0.694 lbs
Load capacity 5 kg / 11.0 lbs
USER MANUAL
Congratulations on your purchase
of the NOVOFLEX ClassicBall.
Even if the operation is very simple,
we want to give you some tips on
how to use your ClassicBall right
from the beginning.
Special features
• Integrated levelling function and
panoramic panning by turning
the ClassicBall upside down.
• Three 90° openings. Two of
these are in line, letting you make
a continuous 180° vertical sweep.
• AFC – (advanced friction con-
trol) for repeatable friction set-
ting
• Interchangeable threaded pin for
1/4" or 3/8" camera thread
CB 3 II CB 5 II
95 mm / 3.7 " 117,5 mm / 4.63 "
60 mm / 2.4 " 78 mm / 3.1 "
45 mm / 1.8 " 59 mm / 2.3 "
500 g / 1.10 lbs 970 g / 2.14 lbs
8 kg / 17.6 lbs 12 kg / 26.4 lbs
