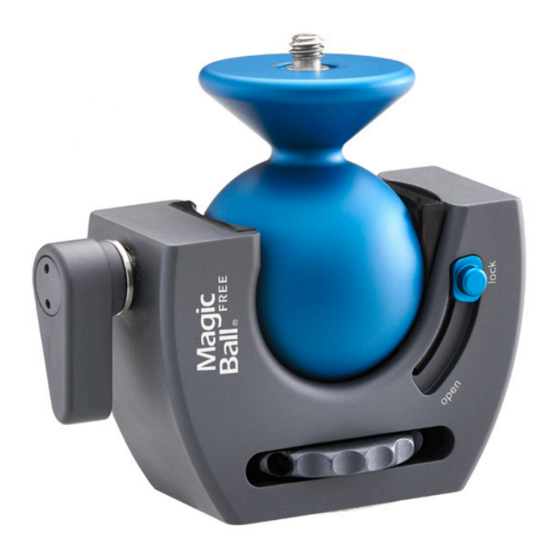

NOVOFLEX MagicBall FREE User Manual

Specifications:
Load capacity:
5kg / 176oz
Dimensions:
8.4×4×7.8cm / 3.3"x1.6"x3.1"
Weight:
• Ball: 118g / 4.16oz
• Housing: 188g / 6.63oz
• Support leg: 46g / 1.62oz
• Guide shell: 39g / 1.38oz
© NOVOFLEX Präzisionstechnik GmbH
Brahmsstraße 7
D-87700 Memmingen / Germany
Phone +49 8331 88888, Fax +49 8331 47174
Email mail@novoflex.com, Internet www.novoflex.com
MagicBall
®
USER MANUAL
1
9
2
7
4
3
6 5
Congratulations on your acquisition of the MagicBall FREE – the revolutionary new ball and socket
head. Whilst you should have no difficulty in using the MagicBall FREE, you may find the following
explanations useful.
Features:
Thanks to the upside down installation of the housing and the free-running ball, the MagicBall FREE
allows for an enormous adjustment range of approximately 240 degrees. Even without a perfect
leveled tripod, a camera turn from landscape- to portrait mode is always possible.
In addition, the unleashed ball, released from the main housing, can be used as a quick release
system, which supports the photographer in all conceivable shooting situations, enables a quick
change from tripod- to freehand exposure.
Combined with the guide shell and the support leg, taking pictures while stabilization right next to
the photographers body or on a variety of conceivable surfaces is also highly convenient.
Scope of delivery:
The MagicBall FREE is available in different versions:
• MB FREE consisting of: ball (2) and housing (4)
• MB FREE SET: ball (2), housing (4), support leg (8) and guide shell (9)
• MB FREE H: housing (4) separate, without ball
• BF SET: ball (2), support leg (8) and guide shell (9), without housing
FREE
Nomenclature
1 Threaded pin
2 Ball
3 Locking lever
4 Housing
8
5 Knurled ring
6 Thread hole
7 Locking mechanism
8 Support leg
9 Guide shell
