BleBox wLightBox v2 User Manual page 2

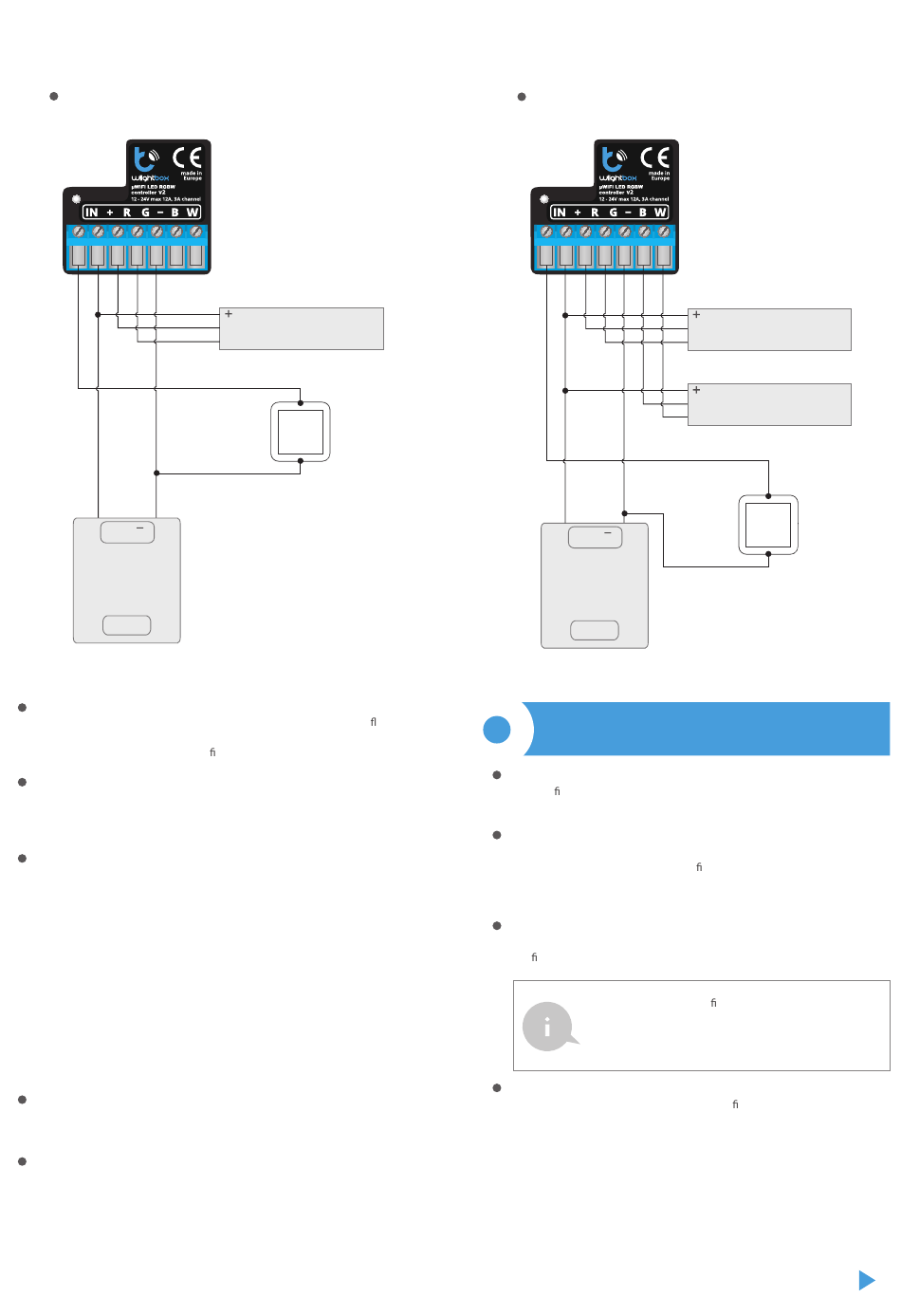

wLightBox v2 + 2-channel CT LED strip (CW/WW, CCT)
+
12-24V
power
supply
110 / 230V
The controller should be installed in a place protected against adverse
environmental conditions, protected from third party access - in the ush box
or inside the enclosure of the controlled device. It is recommended that the
device be mounted in a stable and xed position.
Familiarize yourself with the diagram and then proceed with the installation
of the controller. Pay special attention to the designation of the controller
connectors. Start by connecting the power wires: (+) (red or black with a white
dotted line) and (-) (black).
Connect the LED strip paying attention to the polarity. Depending on the use,
it is possible to connect a single RGBW strip, one RGB strip, an RGB strip with
a white strip, four monochromatic strips (single-colour), individual 2-channel
CT strip (CCT, CW/WW) or two 2-channel CT strips. The "+" anode wire (usually
white color in multicolored strips or red in monochrome and CT strips) must
be connected to the "+" connector of the controller, and the cathode wire "-"
(color corresponding to each color of the LEDs in multi-color strips or more
ofthen black or white color in monochrome strips) to the corresponding
output, i.e. R, G, B or W. For CT tapes, the WW wire (warm white) should be
connected to the output of the controller marked with the letter R, and the
CW wire (cold white) to the output marked with the letter G. In the situation of
two CT tapes, the WW cable of the second tape should be connected to the
output of the controller marked with the letter B , and the CW wire to the
output marked with the letter W. The controller also allows to control halogen
lamps, the polarity of the wiring is not important.
If you wish to control locally by using a wall push-button, please connect the
monostable push-button according to the diagram. To control only by using
the smartphone or tablet, the connection of the push-button is not required
After making sure that the device is connected in accordance with the
diagram and that there are no metal components near the controller which
may accidentally cause short-circuit, start the device by turning on the power
(turning on the mains fuse or connecting the power cord to the power outlet).
LED STRIP
WW
CT max 6A
CW
button
wLightBox v2 + 2 strips of 2-channel CT LED strip (CW/WW, CCT)
+
12-24V
power
supply
110 / 230V
2
Download the free wBox application. If you have an Android mobile device,
you will nd the application in the Play Store. For iOS devices the application
is in the App Store.
By using your mobile phone or tablet, connect it to the device wireless
network. To do this, enter to your smartphone or tablet settings, then go to
setting of the WiFi network and
-xxxxxxxxxx" where xxxxxxxxxx is the serial number of the device. Connect to
this network.
Open the wBox application. A device will appear at the top of the screen. To
add it to the application, click on "+" on the right side of the name. To pre-
con gure the controller, click on the default device name.
You can also set the con guration using the web browser
of your phone / tablet. After connecting to the wireless
network of the controller, turn on the browser and go
website www.blebox.eu
Go to settings ("Settings" icon in the upper right corner of the screen) and
select the correct option in the "Device type" eld depending on the LED strip
connected. You can choose between the options "RGBW or W" for three-color
strips with additional white, which should work in self-exclusion mode
(turning white deactivates the color), "RGB" - for three-color strips and
"MONO" - for monochromatic strips, halogen bulbs or CT for 2-channel strip
warm and cold shade of white. After saving the settings, go to the main panel
by clicking the arrow in the upper left corner. Test the controller works - if you
have a multi-colored tape, select color from the color selection circle and set
LED STRIP
WW
CT max 6A
CW
LED STRIP
WW
CT max 6A
CW
button
FIRST START
nd the network name "wLightBox-
