HOMCOM 820-335V90WT Instruction Manual page 15

1. Fasten four hook racks with eight screws (ST4*10) (Picture 1).
2. Ensure there is enough distance (at least 30cm) between the heater, floor and wall
(Picture 2).
3. Use drill dimension paper to drill the top two holes (Φ8) on the wall and put the
plastic expansion tube into the holes, then fasten the expansion screws (ST4*40)
into the holes (Picture 3).
4. Hang the top two hook racks onto the expansion screws (ST4*40) (Picture 4). Mark
the position of the two bottom hook racks on the wall. Remove the heater and drill
the bottom two holes (Φ8) into the wall, then put the plastic expansion tube in the
holes (Picture 4).
5. Hang the heater on the wall and put the expansion screws (ST4*40) in the bottom
two holes (Picture 5).
For Stand
1 – Place the feet onto the bottom of the body.
2 – Fasten feet with four screws (M4*10).
Electronic thermostat – Instructions

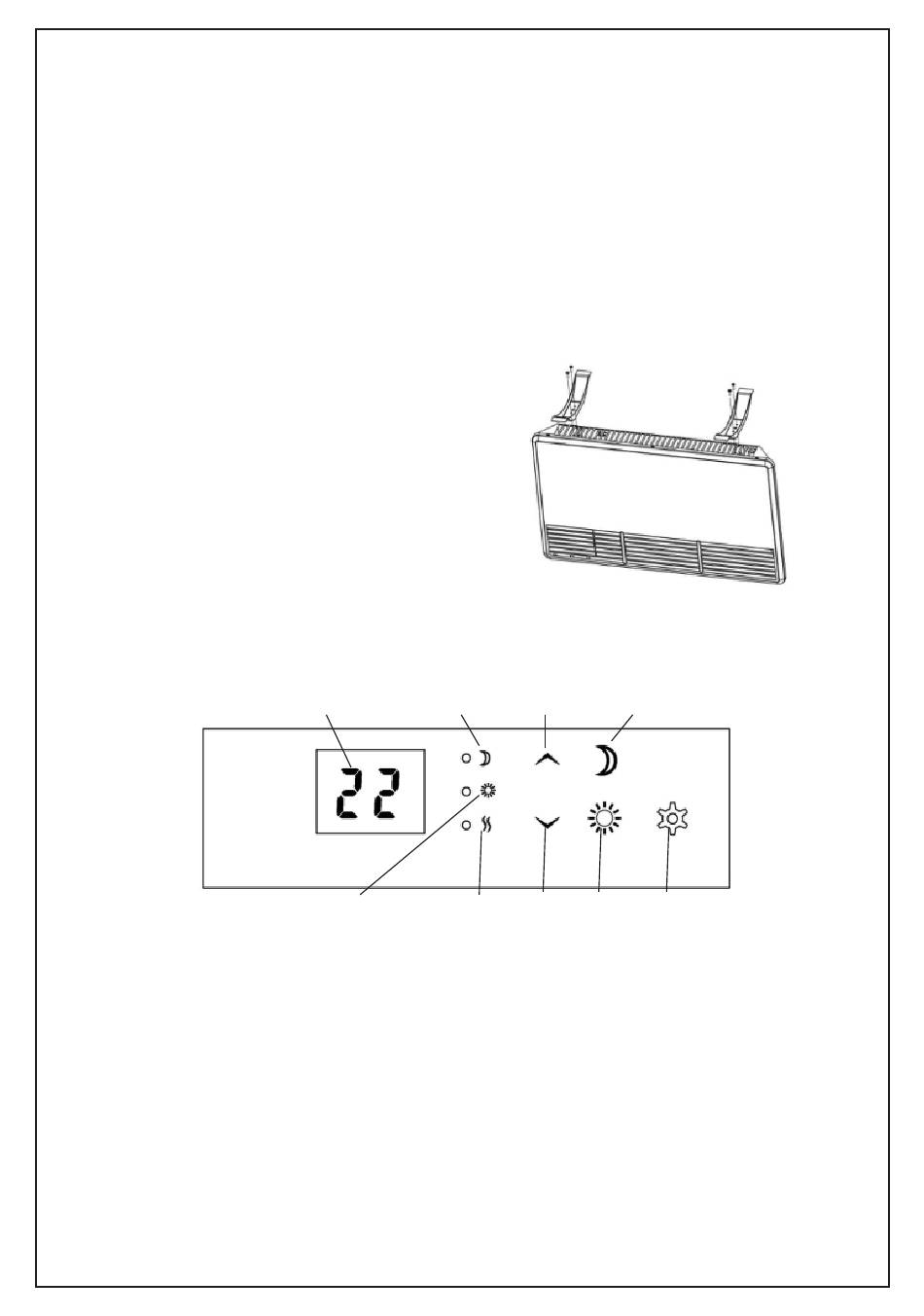

Control panel for electronic thermostat:
1. Display (shows the desired room temperature by default)
2. Control light - Night function
3. Control button (+) (increases temperature)
4. Night function
5. Control light - day function
6. Power indicator
7. Control button (–) (reduces temperature)
8. Day function
9. Function button / Open window function
Warning: The heater must be attached to a wall or stand before turning on. If the
heater is not installed correctly, it could malfunction.
(1) (2)
(5) (6)
15
(3) (4)
(7) (8) (9)
