VERSION # 20-10- 15
1 / 12

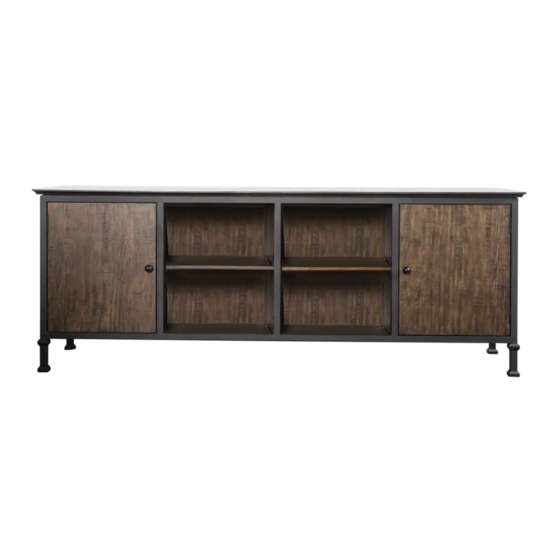

MODEL #
CM5822-TV-72
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM5822-TV-72
Summary of Contents for Furniture of America CM5822-TV-72
- Page 1 MODEL # CM5822-TV-72 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 2...
- Page 5 72'' TV STAND CM5822-TV-72 #2 1pc #1 1pc #3 1pc Top Panel Back Frame Front Frame #6 4pcs #4 1pc #5 3pcs Bottom Panel Dividers Shelf Panels #D 8pcs #A 12pcs #C 4pcs #B 16pcs Metal Plates Shelf Pins Dowels Ø8 x 30L...
-
Page 6: Exploded View
Exploded View 6 / 12... - Page 7 ASSEMBLY INSTRUCTIONS Unfold the front frame (#1), then align the back frame (#2) to the side panel holes of front frame (#1). Secure with bolts (#D). Part #1 x1pc Part #2 x1pc Hardware #D x4pcs Insert metal pins (#E) to the bottom holes of the front and back frame. Hardware #E x14pcs 7 / 12...
- Page 8 ASSEMBLY INSTRUCTIONS Place bottom panel (#4) to the bottom of the frame. Part #4 x1pc #A x12pcs Hardware Insert metal plates (#A) to the holes of the frames. 8 / 12...
- Page 9 ASSEMBLY INSTRUCTIONS Slide the dividers (#5) through the metal plates (#A). Make sure the dividers is facing correctly. Part #5 x3pcs Part #3 x1pc Hardware #C x4pcs Insert dowels (#C) to the holes of the top panel (#3). 9 / 12...
- Page 10 ASSEMBLY INSTRUCTIONS Align and attach the top panel (#3) to the rest of the TV stand. Secure with bolts (#D). Hardware #D x4pcs Hardware #B x16pcs Place shelf pins (#B) to the holes of the side panels. 10 / 12...
- Page 11 ASSEMBLY INSTRUCTIONS Place shelf panels (#6) onto the shelf pins (#B). Part #6 x4pcs OPTIONAL: To prevent tipping, attach the anti-tip kits to the wall. Make sure to Hardware #F x2pcs make the hole in the wall a tight fit for the anti-tip kit. Hardware #G x2pcs 11 / 12...
- Page 12 12 / 12...
