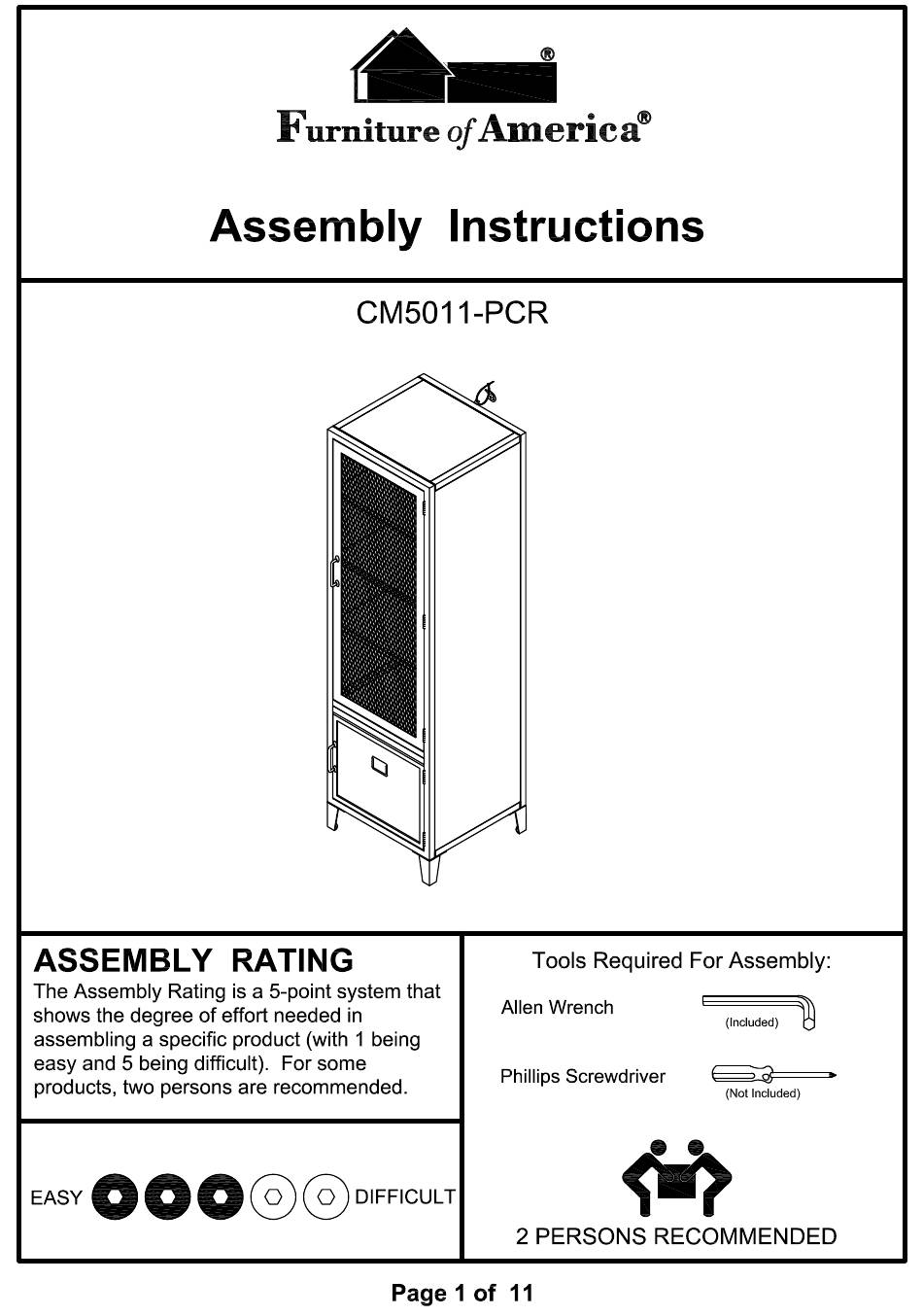

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 17-11-20...
- Page 5 Prepare 2 bolts assembly by inserting washer (#E) onto bolts (#B). Align top panel (#4) to the holes of the back frame (#2). Secure by using bolts (#B).
- Page 6 Prepare 14 bolts assembly by inserting washer (#D) onto bolts (#A). Align side frames (#3) to the holes of the back frame (#2). Secure by using bolts (#A). Prepare 6 bolts assembly by inserting washer (#D) onto bolts (#A). Align bottom shelf (#6) to the holes of the frames (#2,3).
- Page 7 1) Prepare 4 bolts assembly by inserting washer (#D) onto bolts (#A). Align bottom shelf (#5) to the holes of the frames (#2,3). Secure by using bolts (#A). 2) Prepare 2 bolts assembly by inserting washer (#E) onto bolts (#B). Secure bottom shelf (#5) by using bolts (#B). Align front (#1) to the holes of the whole frame.
- Page 8 Align handle (#9) to the upper large door, then secure by using bolts (#A) with washer (#D). Align handle (#9) to the lower small door, then secure by using bolts (#C) with washer (#D). Secure inner bottom holes by using bolts (#A) with washer (#D).
- Page 9 Prepare 16 bolts assembly by inserting washer (#E) onto bolts (#B). Align legs (#8) to the holes of the cabinet. Secure by using bolts (#B). Align and place shelves (#7) into the cabinet.
- Page 10 Anti-Tip Prevention Align bracket (#I) to the hole on the top of the cabinet. Secure by using screws (#G). Align the bracket (#I) to the estimated height of the cabinet onto the wall. Secure by using screws (#H).
- Page 11 Adjust leveler according to ground level. Align cabinet brackets (#I) to each other, then secure with plastic strap.
