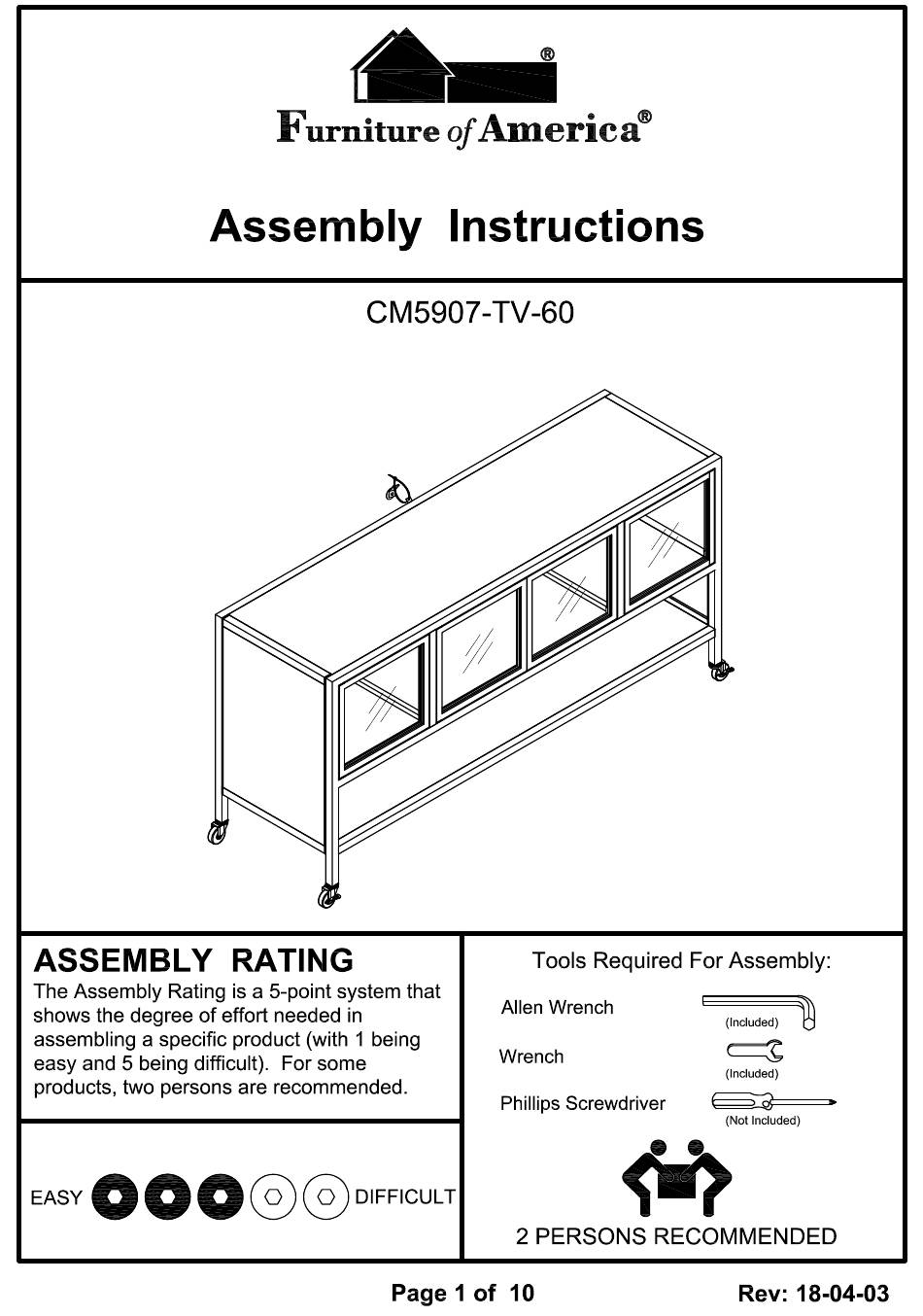

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Align side panels (#3) to the holes of the back panel (#2), then secure by using bolts (#A).
- Page 6 Align support frames (#4) to the holes of the back panel (#2), then secure by using bolts (#B) with washers (#D). Align top panel (#5) to the holes of the unit.
- Page 7 Secure top panel (#5) to the unit by using bolts (#C) with washers (#E). Align front frame (#1) to the holes of the side frames (#3). Secure by using bolts (#A) and bolts (#C) with washers (#E). Secure here by using bolts (#B) with washers (#D).
- Page 8 Align shelf panel (#6) to the holes of the unit, then secure by using bolts (#C) with washers (#E). Align shelf panel (#6) to the holes of the unit, then secure by using bolts (#C) with washers (#E).
- Page 9 Align the threaded wheels (#7,8) to the holes of the unit, then secure by using wrench (#G) on the wheels (#7,8). Align bracket (#K) to the back of the unit, then secure by using screws (#H).
- Page 10 Align the bracket (#K) to the wall. Make sure the bracket (#K) is at the same height as the unit, then secure by using screws (#J).
