Illustration 14 - Burner High Altitude Blower Kit Addition - ASTEC Phoenix FURY Operation And Service Manual

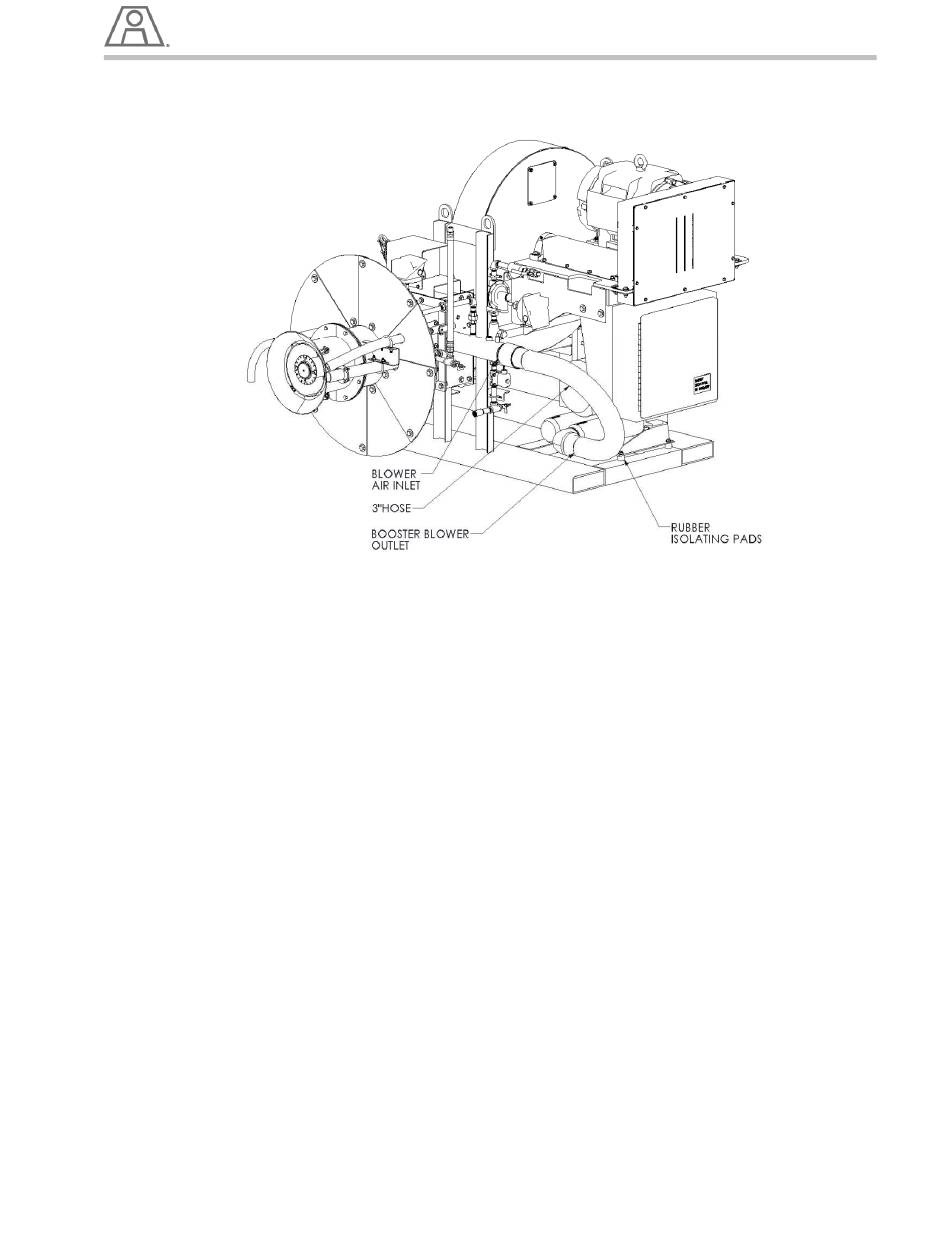

Illustration 14 – Burner High Altitude Blower Kit Assembly
•
Step (4) Mount the High Altitude Blower Motor assembly. Note that all motor assemblies must be
mounted on rubber isolating pads provided by the vendor.
•
Step (5) Thru holes (Appropriately sized) may need to be placed in the existing base frame in
order to mount the new blower motor assembly. Match drill holes with blower motor frame.
•
Step (6) Install the 3" hose onto the booster blower outlet first. Finally install the 3" hose onto the
blower air inlet.
•
Step (7) Make sure all hoses have been tighten in place and are ready for operation.
