Burner Mounting

1. The centerline of the Burner should be mounted on the centerline of the drum, at the same pitch as
the drum.
2. The insertion depth should be such that the end of the burner is 2 or 3" behind the breaching ring.
3. Cut out a hole in the breeching plate 3" smaller in diameter than the burner radiation shield.
4. Check burner blower rotation. Rotation should be clockwise from the motor end.

Burner Pilot System

The PHOENIX FURY incorporates a forced-air pilot system. The Pilot and the main flame are monitored
by a single Ultra Violet (UV) flame detector attached to the burner, and included in the complete burner
package. The air for the pilot is provided from inside the fan housing where there is a constant air
pressure. The adjustment and operation of the pilot system is detailed below.

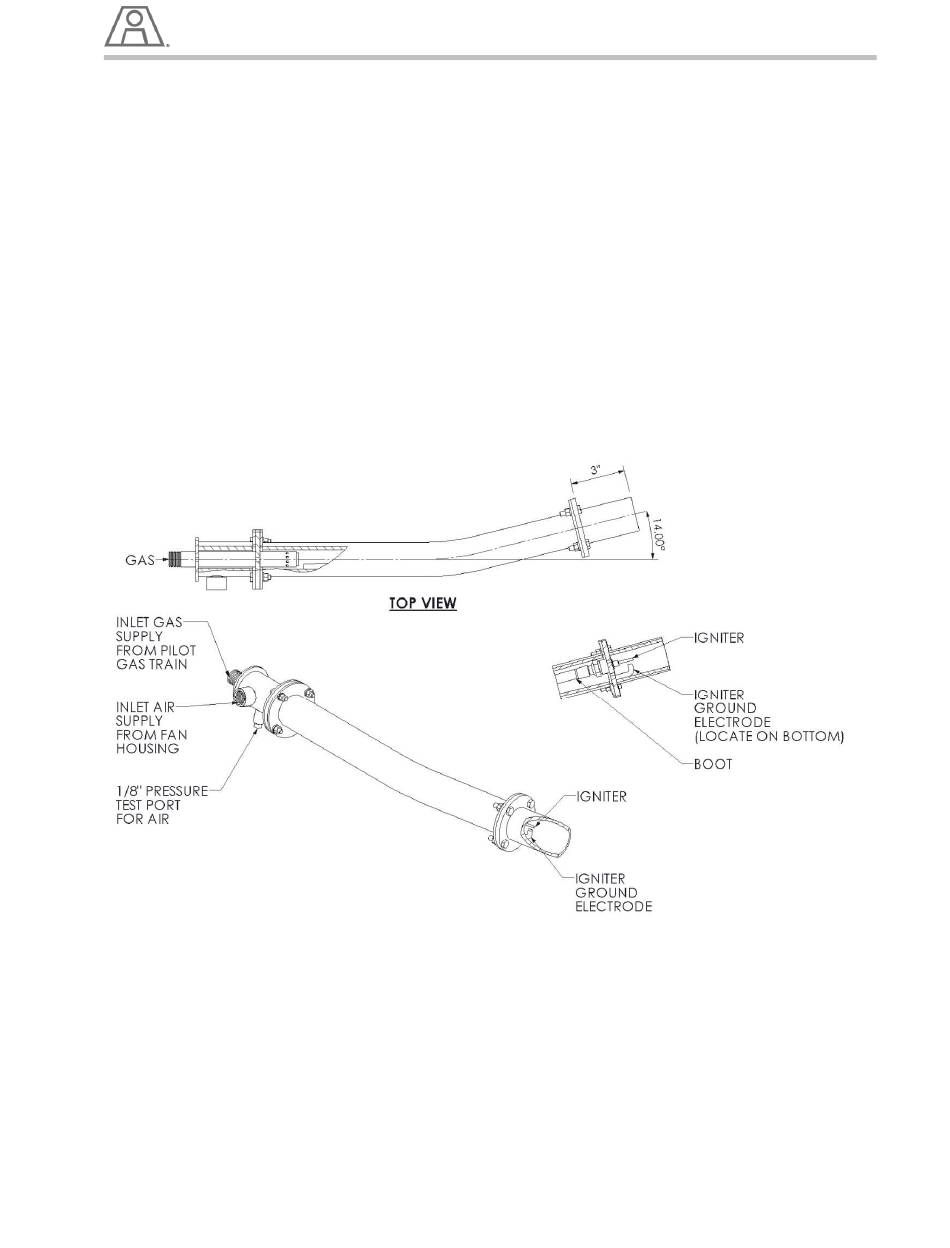

Illustration 2 - Pilot System

Illustration 3 – Typical Pilot Gas Train
