6. The gas valve linkage must be adjusted for proper flow control..
7. See individual burner performance sheets for air and gas flows. (See Detailed Burner Performance
Sheets)
8. Use the utmost care in making any adjustment to prevent an unsafe condition.
WARNING!
•
The settings in Table 5 are for the regulator sizing only.
•
Final settings will have to be adjusted for the particular operating conditions.
•
Be sure not to have more fuel flow than there is combustion air available to burn, or "puffing", and
a dangerously rich firing condition could occur.
9. Metering natural gas is accomplished by taking a differential pressure across the orifice plate in the
pre-piped gas train.
•
The gas flows versus orifice plate differential pressures are shown in the Detailed Burner
Performance Sheets.
Phoenix FURY - Operation and Service Manual

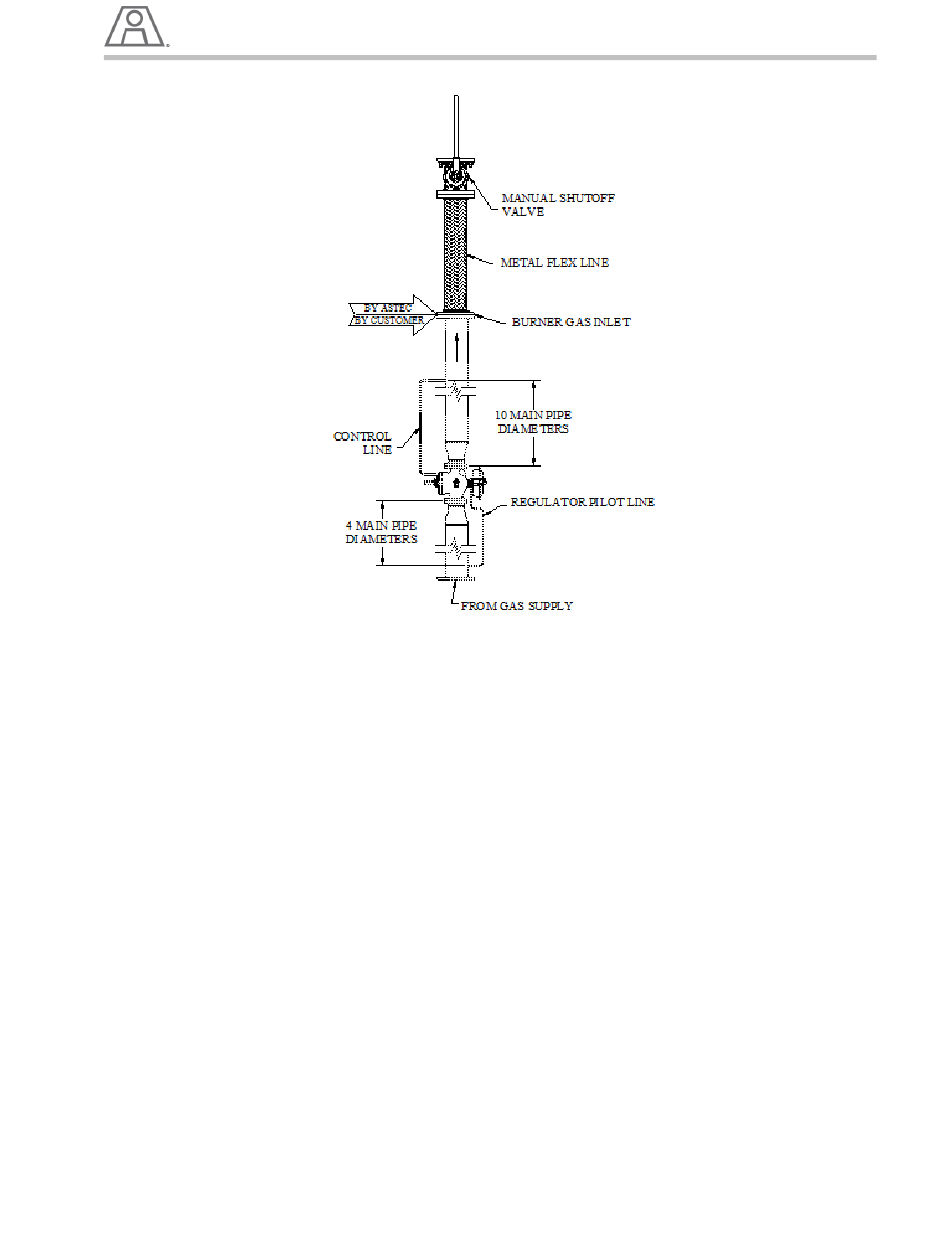

Illustration 5 - Regulator Requirements
