Illustration 13 - Burner High Altitude Blower Kit Addition - ASTEC Phoenix FURY Operation And Service Manual

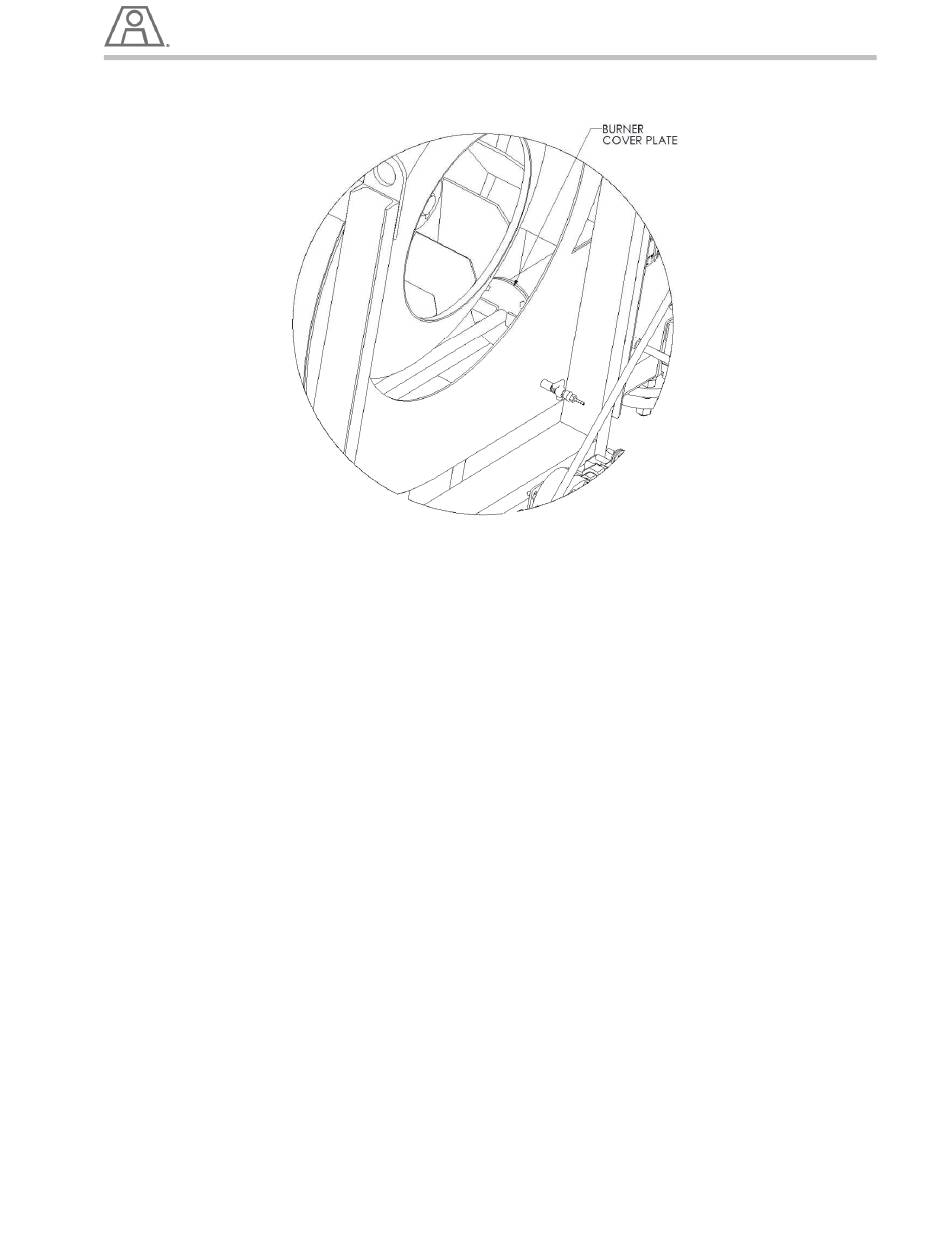

Illustration 13 – Burner High Altitude Blower Kit Assembly
•
Step (2) Install (bolt-on) cover plates to the back flange of the HA conversion weldment assembly
as shown in illustration-13 above. Apply RTV liberally around the ½" oil guide pipe traveling
through the center of the flange.
•
Step (3) Reinstall the burner inlet plate assembly.
