Adjustment and Operation of the Pilot System

1. Use Natural Gas (NG) or Liquid Propane (LP) vapor only to fuel the pilot.
WARNING!
Never connect the LP fuel line to the pilot from the bottom of the LP tank. LP would likely be sent to
the pilot, where it could quickly boil off, causing either an explosion or fire in the burner.
2. If natural gas is the primary fuel, the pilot fuel supply should be connected to the natural gas feed
piping, upstream of the main regulator.
3. If you will be firing using liquid fuels, and/or natural gas service is not currently available, connect the
gas feed piping to a LP vapor line. (See above warning.)
4. Purge the fuel piping of any contaminates before connecting it to the pilot assembly.
5. Size the pilot gas supply line to avoid an excessive pressure drop. (For a pilot gas supply line up to
50 feet long, use a minimum of 3/8" pipe.)

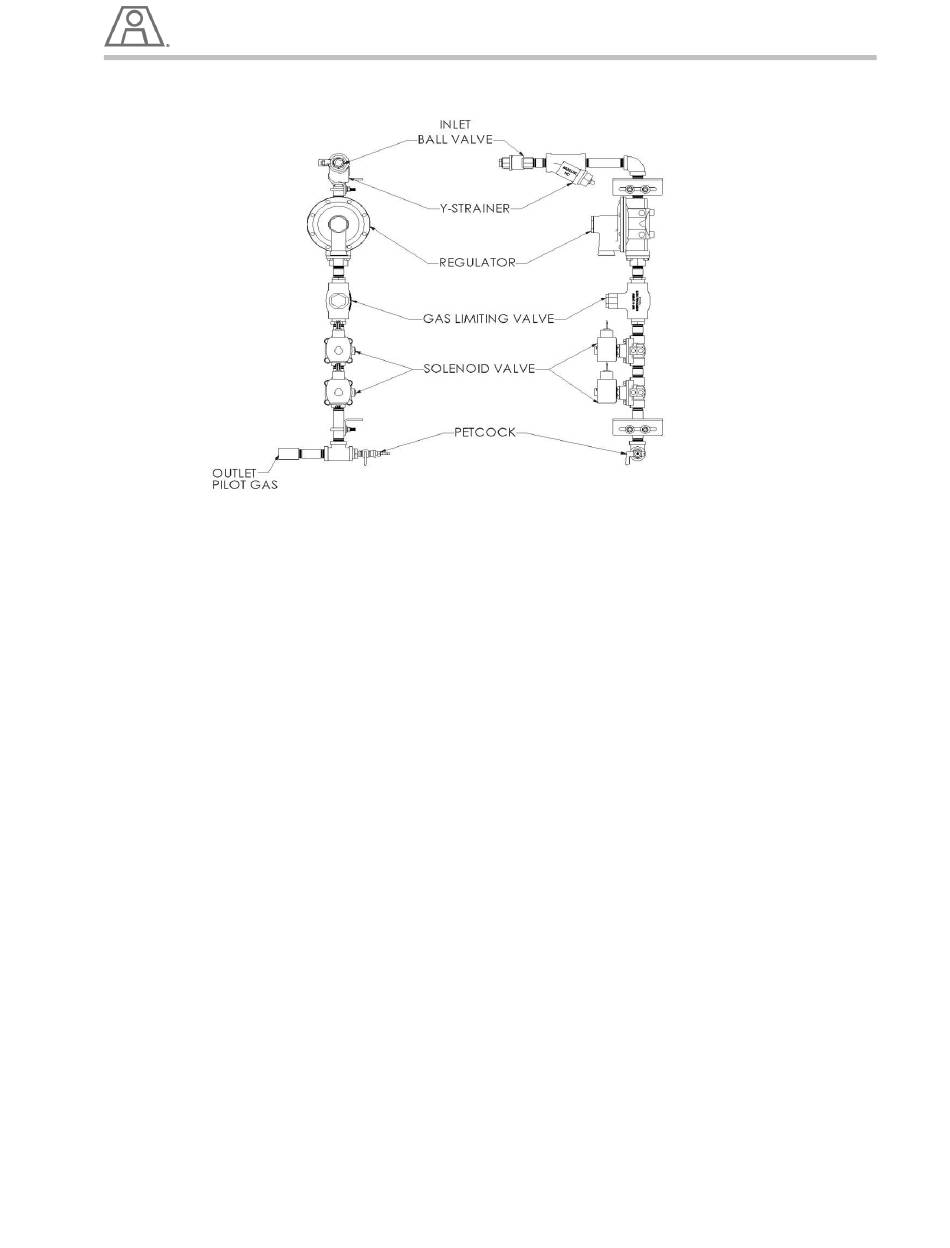

6. Gas pressures at the inlet of the gas pilot manifold can range from 2 to 25 psig.
7. The entire pilot assembly can be removed from the burner by removing the strut bolts and pipe
unions along the side of the burner, then pulling the assembly backwards.
8. Remove the spark plug wire boot; then the spark plug can be removed with a standard spark plug
socket.
9. Make sure the spark igniter is connected to the ignition transformer.
10. Remove the protective cover on the adjustable pilot gas orifice; rotate the adjustment screw clockwise
for less gas pressure, Turn counter-clockwise to increase the gas pressure
11. The initial recommended fuel pressure setting is approximately 1"-2" Water Column for Vaporized
Propane, 1"-2" Water Column for Natural Gas measured at the test port. Air pressure not adjustable.
12. At this rate the pilot should light the main burner easily, and deliver a sufficient UV flame signal.
WARNING!
•
The pilot ignition transformer can cause a painful shock, use care around the ignition cable.
•
Only leave the pilot gas on for a very short period of time while lighting the burner.
•
If pilot does not light at once, shut it off, and then purge it before attempting to relight.
