Toro SprayMaster Max 34240 Operator's Manual page 10

1. Spray pressure decrease
2. Spray pressure increase
3. Left nozzle spray-Off
4. Left nozzle spray-On
5. Center nozzle spray-Off
6. Center nozzle spray-On
7. Right nozzle spray-Off
8. Right nozzle spray-On
9. Spray wand pressure control-Off
10. Spray wand pressure control-On
11. Park brake-Off
12. Park brake-On
13. Choke-On
14. Choke-Off
15. Throttle-Fast
16. Continuous variable setting
17. Throttle-Slow
18. Fast
19. Slow
20. Neutral
146-0162
21. Reverse
22. Warning—Read the Operator's Manual; Do Not operate this
machine unless you are trained. Wear hearing protection.
23. Thrown object hazard-Keep bystanders away.
24. Warning-Stay away from moving parts; keep all guards
in place. Stop engine and remove key before adjusting,
servicing, or cleaning.
25. Warning-Disengage sprayer controls, move drive lever to
neutral position, engage parking brake, and stop engine
before leaving the operator's position.
26. Caustic liquid/chemical burn and toxic gas inhalation
hazards-Wear hand, skin, eye, and respiratory protection.
27. Warning-Use fresh, clean water:
- for first-aid washing
- for rinsing the tank.
28. Crushing/dismemberment hazard of bystanders — Do Not
carry passengers, look behind and down when reversing.
29. Tipping hazard-operate across slopes not up and down.
Loads may shift on slopes or when turning. Do Not operate on
wet slopes–use extreme caution when operating on slopes.
30. Tipping hazard—Do Not use dual ramps when loading onto a
trailer; use one ramp wide enough for the machine; back up
the ramp when loading the machine and drive forward off the
ramp when unloading.
31. Tipping hazard—Do Not use the machine near drop-offs or
on slopes; stay at least two widths of the machine away from
drop-offs.
32. On
33. Spray pump switch
34. Off
35. Engine-Off
36. Engine-On
37. Engine-Start
38. Spreader motor speed - Slow - Narrow material distribution
39. Spreader motor speed - Fast - Wide material distribution
10

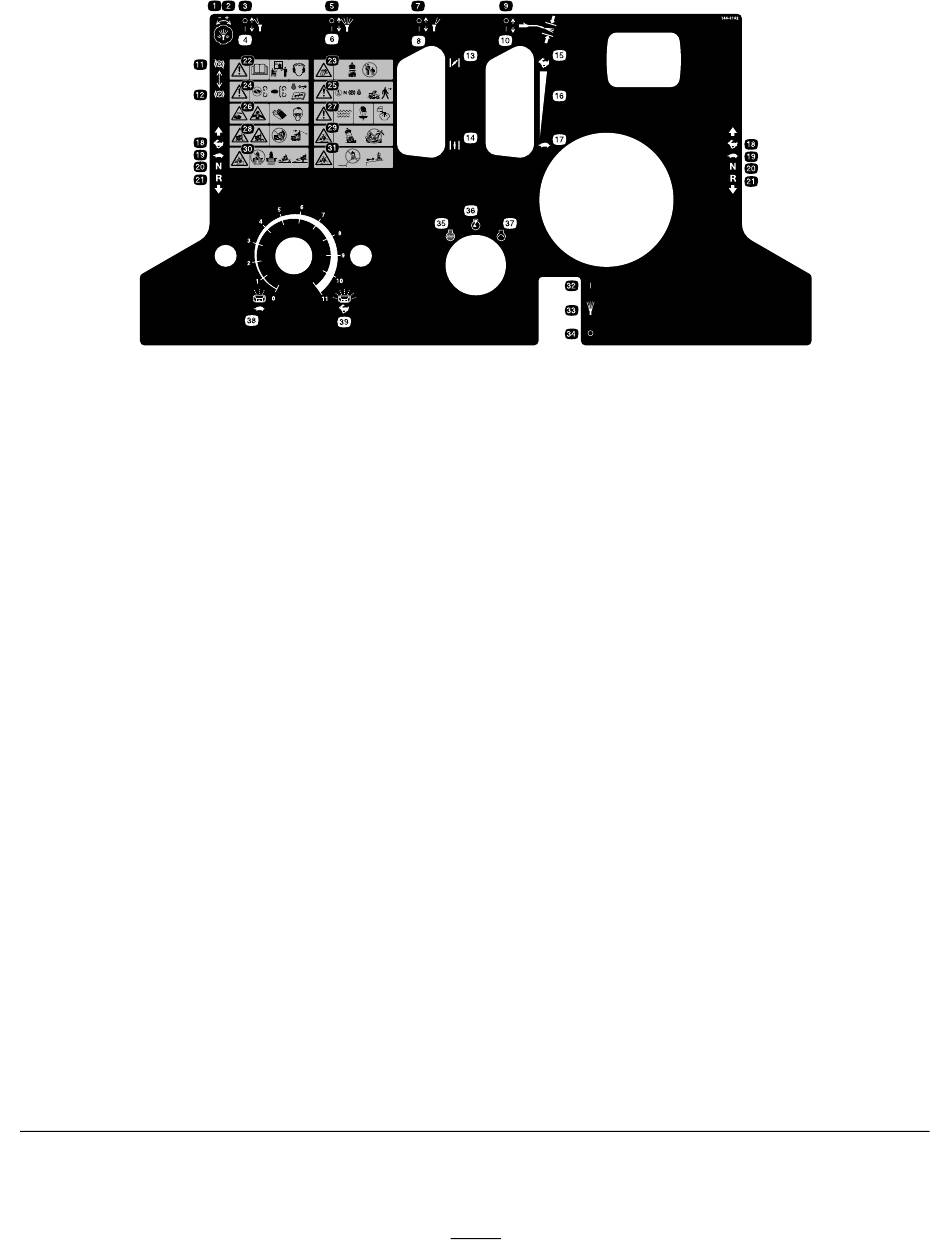

decal146-0162
