Note!

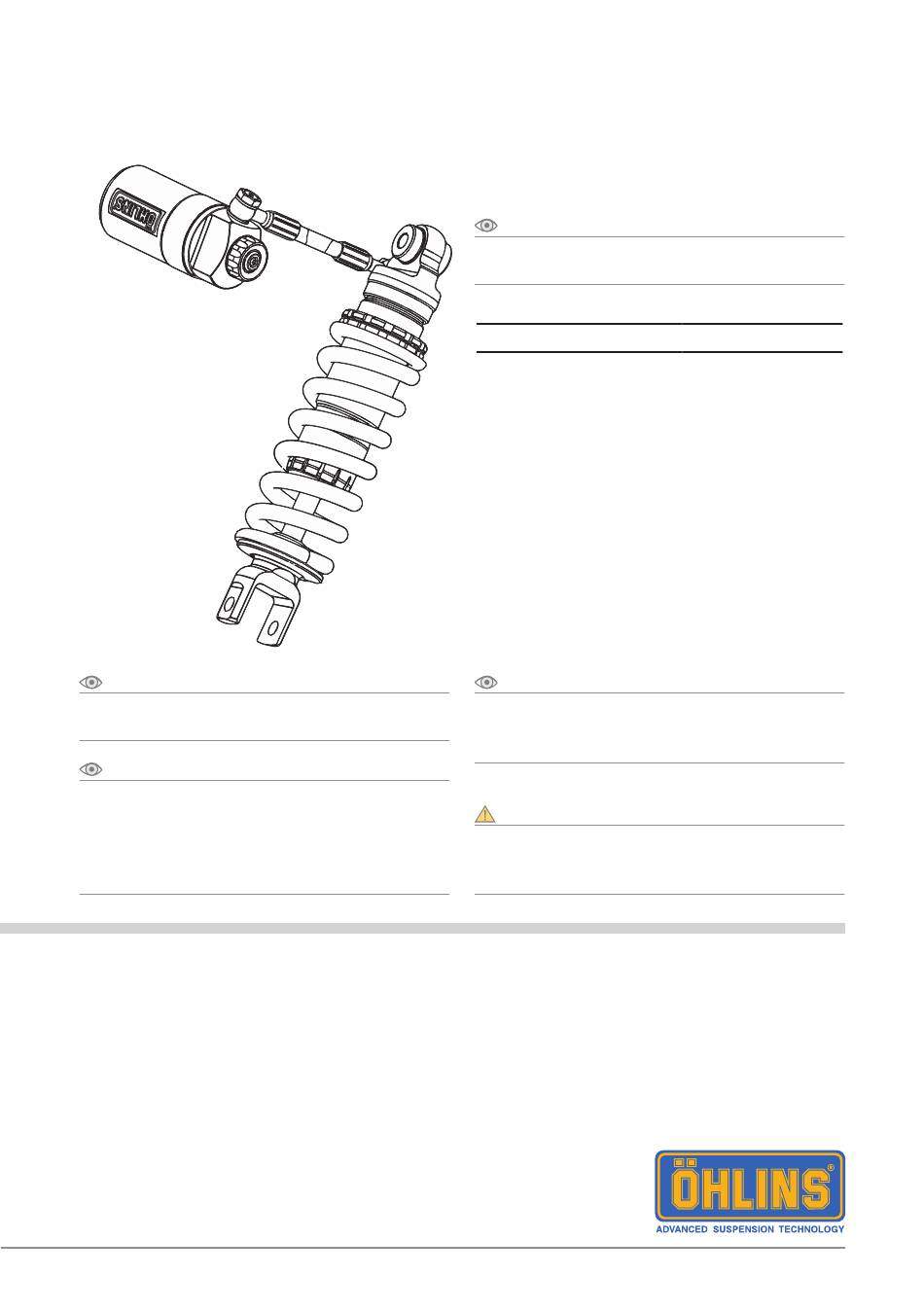

Please note that this image is a general representation
of the product and may differ slightly from your product.
Note!
Please note that during storage and transportation,
especially at high ambient temperature, some of the oil
and grease used for assembling may leak and stain the
packaging. This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.

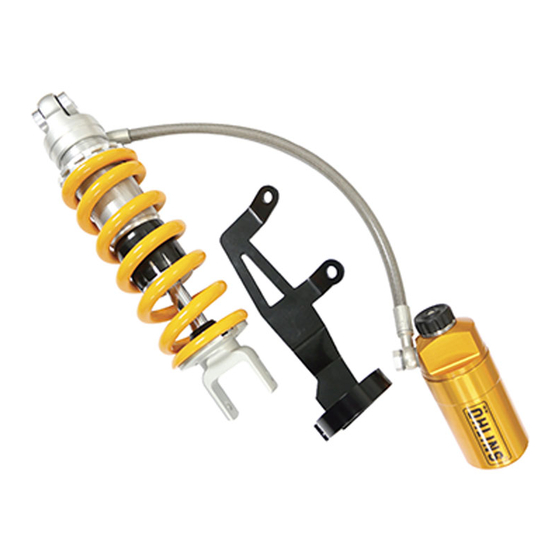

Shock Absorber for YAMAHA Mslaz
YA 559
Mounting Instructions
Note!
Before installing this product, check the contents of the
kit. If anything is missing, please contact an Öhlins dealer.
Kit Contents
Description
Shock absorber
Bracket, reservoir
Clamp bracket
Screw M6x12
Screw M6x14
Screw M8x20
C-spanner
Sticker Öhlins
Sticker Öhlins
Sticker Öhlins
Owner's Manual
Note!
Before installing this product, check the contents of
the kit. If anything is missing, please check an Öhlins
dealer.
Warning!
Before installing this product, read the Öhlins Owner's
Manual. The shock absorber is an important part of your
vehicle and will affect the stability.
Part No
Pcs
YA 559
1
60006-12
1
03102-15
1
01046-36
2
00382-16
1
00432-02
2
60710-01
2
01185-01
2
01185-04
2
00192-01
2
07241-02
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the YA 559 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Öhlins YA 559

  • Page 1 Note! Before installing this product, check the contents of the kit. If anything is missing, please contact an Öhlins dealer. Kit Contents Description Part No Shock absorber YA 559 Bracket, reservoir 60006-12 Clamp bracket 03102-15 Screw M6x12 01046-36 Screw M6x14...
  • Page 2 MOUNTING INSTRUCTIONS Warning! Note! It is advisable to have an Öhlins dealer install the shock Lower the vehicle so that the suspension is slightly absorber. compressed before tightening the screws. Warning! Caution! If working on a raised vehicle, ensure it is securely Ensure that all screws are tightened to the correct supported so that it will not tip over.
  • Page 3 MOUNTING INSTRUCTIONS Remove the 2 screws (1,2) and slide backward the rear cowling. Take off the center seat by removing the 2 screws (3,4). Take off the LH lateral fearing by removing 2 screws.
  • Page 4 MOUNTING INSTRUCTIONS Take off the LH lateral fearing by removing 2 screws.
  • Page 5 MOUNTING INSTRUCTIONS Take off the LH lateral fearing by removing 2 screws on the top and 4 screws on the bottom.
  • Page 6 MOUNTING INSTRUCTIONS Take off the footpeg by removing 2 screws. Take off the linkage by removing 1 screw (1). Remove the shock absorber by removing the upper and lower bolt (2,3).
  • Page 7 MOUNTING INSTRUCTIONS Install the steel plate bracket between the footpeg and the frame by the 2 screws 00432- 02. Tighten as specified in the vehicle service manual. Install the Öhlins shock absorber by tightening the lower and upper mounting screw at a torque value as specified in the vehicle service manual.
  • Page 8 ADJUSTMENTS Warning! Before riding, always make sure that the basic settings made by Öhlins are according to recommended Set-up Data. Read about adjustments and setting up in the Öhlins Owner’s Manual before you make any adjustments. Contact an Öhlins dealer if you have any Compression questions about setting up.
