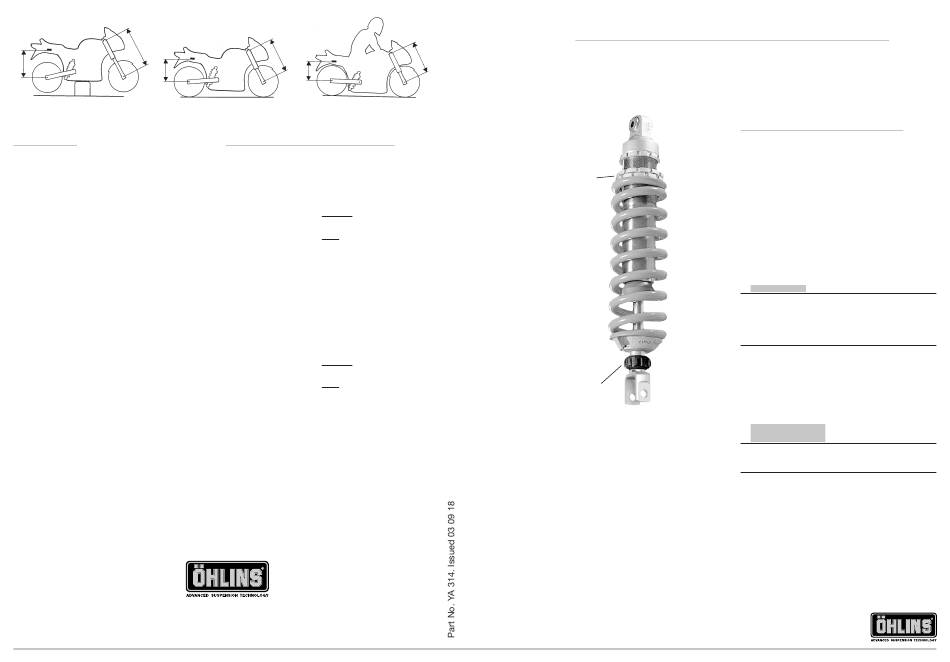

Öhlins YA 314 Mounting Instructions

F1
R1
R2
Bike on a stand. Bike on the ground.
Setup data
Shock absorber length 305 mm
Shock absorber stroke 58 mm
Spring preload 10 mm
Rebound damping adjuster 13 clicks
Compression damping adjuster 10 clicks
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
F2
R3
Bike with rider on.
Checking sag and ride height
Front suspension
F1. Bike on a stand with the
suspension fully extended
F2. Bike on the ground without rider = ............
F3. Bike on the ground with rider
F1 - F2 = ............
Free sag
F1 - F3 = ............
Ride height
Rear suspension
R1. Bike on a stand with the
suspension fully extended
R2. Bike on the ground without rider = ........... .
R3. Bike on the ground with rider
R1 - R2 = ............
Free sag
R1 - R3 = ............
Ride height
www.ohlins.com
F3
Spring pre-
load adjuster
= ............
= ............
= ............
= ............
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
Mounting Instructions
Öhlins shock absorber kit
YA 314 for Yamaha Fazer 600
Rebound
damping
adjuster
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
Öhlins shock absorber 46 DR
Your Öhlins shock absorber type 46 DR features
the following adjusters:
Rebound damping adjuster
Adjuster wheel on the piston shaft above the end
bracket.
Spring pre-load adjuster
Adjustments are made by turning the rings on
the cylinder tube. Clockwise for harder
adjustment, counter clockwise too release the
pre-load.
NOTE!
When delivered the Öhlins shock absorber is
dialed to recommended settings for the specific
brand and make of the motorcycle. If you have
changed the setting check like this:
The adjusters have a normal right hand thread. Turn
the damping adjusters clockwise to fully closed (pos.
zero [0]). Turn counter clockwise to open and count
the clicks until you reach the recommended number
of clicks. See Setup data at last page.
CAUTION!
Do not use too much force, delicate sealing sur-
faces can be damaged.
