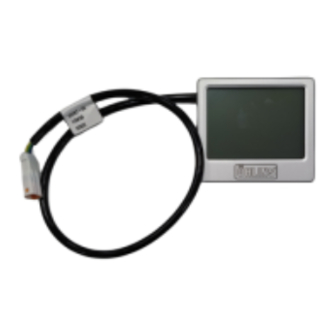

- Page 1 Before installing this product, check the contents of the kit. If anything is missing, please contact an Öhlins dealer. Kit Contents Part No Dashboard pre-series 35007-01 Öhlins Mechatronics Dashboard 35007-01 Installation Instruction...
- Page 2 InstallatIon guIDe The Öhlins SCU is located under the front Installation seat. Replace the original SCU with the SCU On the Öhlins wiring harness, find the white provided in this kit. diagnostic socket with the squared cap. Usu- ally located on the left side of the bike, see note! image.
- Page 3 InstallatIon guIDe Calibration After installation; Calibrate the system. To reach the settings menu, turn ignition on and at the same time hold a finger on the dashboard. The dashboard will light up. Operate the menu by the arrow buttons. Choose Cal sPRIng PReloaD by pressing the arrow pointing right, see image.
- Page 4 Öhlins products are subject to To find the latest information continuous improvement and contact an Öhlins distributor. development, therefore, although Please contact Öhlins if you have these instructions include the most any questions regarding the up-to-date information available at contents in this document. the time of printing, minor updates Part no.
