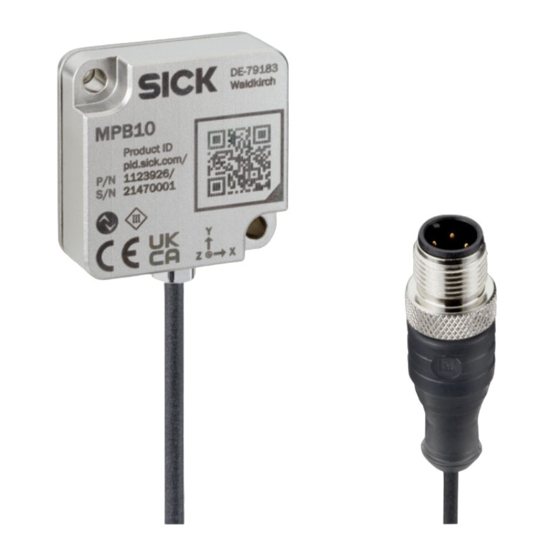

  • Page 1 O P E R A T I N G I N S T R U C T I O N S MPB10 Multi Physics Box...
  • Page 2 This document is an original document of SICK AG. 2006/42/EC SAFETY O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Mounting....................Mounting methods................... Optional accessories................Electrical installation................ 24 Safety......................8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 4 14.2 Dimensional drawing................Annex....................57 15.1 Conformities and certificates..............15.2 Index......................O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 5: Information On The Operating Instructions

    For information about this, refer to the operating instructions of the specific machine. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 6: About This Document

    If you require any technical information, our customer service department will be happy to help. To find your agency, see the final page of this document. O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 7 Before calling, make a note of all type label data such as type code, serial number, etc., to ensure faster processing. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 8: Safety Information

    O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...

  • Page 9: Requirements For Skilled Persons And Operating Personnel

    8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 10: Product Description

    O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...

  • Page 11: Status Indicators

    Master (e.g. SIG200) in order to save the data locally on a server. Figure 3: Possible system architecture for data recording 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 12: Vibration Analysis (Index 4474-4588)

    Settings for vibration analysis (Index 4477, 4479, 4482, 4531) The sensor offers the following basic setting options in the vibration analysis: O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 13 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 14 O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 15: Trigger (Index 4474-4475)

    Index 4475 can be used to trigger by writing a 1 if trigger source ISDU is selected in Index 4474, Subindex 1. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 16: Activity Detection (Index 4479-4480)

    In the context of vibration analysis, this is a meas‐ ure of the strength of a vibration analogous to the RMS value. O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 17 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 18: Vibration In The Frequency Range

    Block length [ms] Resolution [Hz] Smallest measurable frequency 12.5 6.25 O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 19: Temperature Monitoring (Index 4352-4355)

    With a measuring range of up to 200 g, the maximum accelerations are measured in all three axes, thus monitoring shock events. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 20: Transport And Storage

    "Technical data", page ■ Relative humidity: see "Technical data", page ■ O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 21: Mounting

    Screw on the adapter plate with the countersunk screw. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 22 Figure 9: Mounting side for mount‐ ing bracket O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 23: Optional Accessories

    M5 adapter plate (also suitable for M4 screws) 2129153 M8 adapter plate 2125439 Magnetic holder 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 24: Electrical Installation

    O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 25 Prevent equipotential bonding currents via the cable shield with a suitable earthing method, see "Safety", page 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 26: Connections

    To ensure protection against short-circuits/overload in the customer’s supply cables, the wire cross-sections used must be appropriately selected and protected. O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...

  • Page 27: Commissioning

    The temperature and shock values are available immediately after this time. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 28: Operation

    Monitored measurand 4353 (0x1101) Temperature 4370 (0x1112) Device diagnostics O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...
  • Page 29 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 30 In order not to lose occurred alarms, the alarm reset time should be set to -1. The alarms must then always be actively reset via Standard Command 229. O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...

  • Page 31: Vibration Monitoring

    8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 32 (Index 4483-4485) The v-RMS changes significantly, especially for the following fault conditions: O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...
  • Page 33 Zone border B/C 4.5 mm/s 4536 (Subindex 1) Zone border A/B 2.3 mm/s 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 34 (maximum, minimum) are set. The following teach-in operations can be performed: O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...

  • Page 35: Monitoring In Frequency Range (Index 4549-4582)

    This frequency has the highest amplitude in the overall vibration. ° 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 36 X direction (frequency) as well as in the Y direction (amplitude). Figure 19: Limit values of Dominant peak frequency analysis O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 37 16 output peaks, with the Fundamental peak always representing peak 1. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 38 Index 4566 and their width by the tolerance of the O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 39 Figure 22: Indices for limit value definition in standard analysis 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 40: Readout Of Raw Data

    Multi Physics Box to read out both the raw acceleration data in the time range and the entire vibration spectrum. O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...
  • Page 41 Select the first segment by writing a 0 in Index 4587, Subindex 1. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 42 1 and is also given in Index 4586, Subindex O P E R A T I N G I N S T R U C T I O N S | MPB10...

  • Page 43: Temperature Monitoring (Index 4352-4355)

    8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 44: Configuration Of Digital Outputs

    A00 logic, as switching signal and as trigger signal (see "Trigger (Index 4474-4475)", page 15). O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 45: Smart Task Basic Logic (A00)

    2 / pin 4. Logical principle of operation: 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
  • Page 46 WINDOW MODE See the following diagram HYSTERESIS See the following diagram MODE O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...
  • Page 47 Note that due to the inversion of the Timer 1/2 output signal, a set switch-on delay, for example, can act like a switch-off delay. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 48: Device Diagnostics (Index 4356-4370)

    Reset all existing alarms (value 229): Value 229 can be used to reset all active alarms. O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK...

  • Page 49: Process Data Structure

    Variance (X-; Y-; or Z-axis) • Skewness (X-; Y-; or Z-axis) 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 50: Byte 18 And 19

    Frequency deviation Fundamental peak: active if at least one bit of Index 4574 ° Subindex 5 and Subindex 6 is set O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 51: Process Data Profile (Index 120)

    Z-axis v-RMS Z-axis Kurtosis Z-axis Impulse factor Z- axis 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 52: Troubleshooting

    0 g. tion to ≥ 10 g O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 53: Maintenance

    Subject to change without notice. Specified product properties and technical data are not written guarantees. 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 54: Decommissioning

    Description of the application ■ Description of the error that occurred ■ O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 55: Technical Data

    Shock Number of axes Measuring range 10 g ... 200 g 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 56: Dimensional Drawing

    40 - 50 (1.57 - 1.97) M3 threaded mounting hole Connection O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...

  • Page 57: Annex

    (part number: see the entry in the “P/N” or “Ident. no.” field on the type label). 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...

  • Page 58: Index

    4585-4588 Raw time range data..........41 4585-4590 Frequency spectrum..........42 4842 Alarm behavior..............28 O P E R A T I N G I N S T R U C T I O N S | MPB10 8028041/2022-08-16 | SICK Subject to change without notice...
  • Page 59 ANNEX 8028041/2022-08-16 | SICK O P E R A T I N G I N S T R U C T I O N S | MPB10 Subject to change without notice...
