O P E R A T I N G I N S T R U C T I O N S

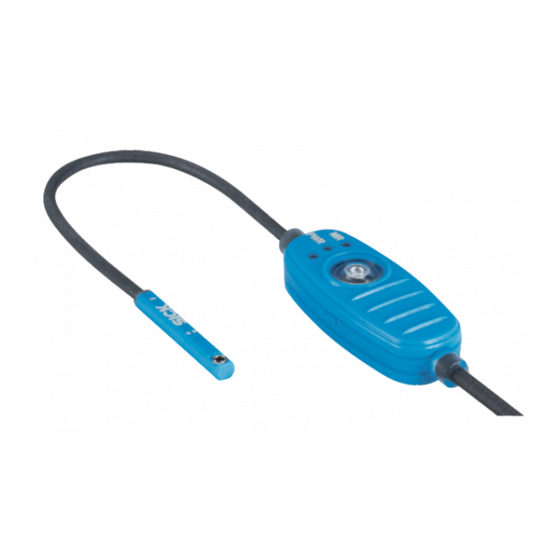

MPS-G with 2 / 3 switching points and IO-Link
(up to 16 switching points) & diagnostic function
Magnetic cylinder sensors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPS-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK MPS-G

Summary of Contents for SICK MPS-G

  • Page 1 O P E R A T I N G I N S T R U C T I O N S MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnostic function Magnetic cylinder sensors...
  • Page 2 This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 3: Table Of Contents

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 4 15.2 Conformities and certificates..............O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 5: About This Document

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 6: Safety Information

    ■ O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐ 8025943.1GWA/2022-08-15 | SICK...

  • Page 7: Hazard Warnings And Operational Safety

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 8: Product Description

    Position measurement for short stroke in systems with IO-Link O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 9: Operating Principle

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 10: Detection Range

    1 digit corresponds to 10 µm. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 11: Switching Behavior After Manual Teach Of Up To 3 Switching Points

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 12: Switching Behavior After Dynamic Teach Of 2 Switching Points

    It does not matter which position is approached first. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 13 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 14 Figure 7: Movement in the direction of the fixing screw O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 15: Switching Behavior After Dynamic Teach Of 3 Switching Points

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 16 O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐ 8025943.1GWA/2022-08-15 | SICK...
  • Page 17 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 18 Figure 11: Movement from object to idle O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 19 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 20: Transport And Storage

    ■ O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐ 8025943.1GWA/2022-08-15 | SICK...

  • Page 21: Mounting

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 22: Electrical Installation

    O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 23 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 24: Connections

    O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 25 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 26: Commissioning

    O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 27: Operation

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 28: Status Indicators

    LEDs as in SIO mode. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 29: Teach-In Mode

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 30: Dynamic Teach

    The magnet must be moved at a speed greater than 0.025 m/s so the Dynamic Teach works correctly. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 31 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 32: Manual Teach

    11) can be set. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 33 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 34 Setting of switching point width: O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 35 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 36: Diagnostic Function

    Dwell time start position O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 37: Vibration Analysis

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 38 Kurtosis = 3 O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 39: Position Monitoring

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 40 DIN 9300 / DIN ISO 8855. This means that the orientation of the O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 41: Temperature Measurement

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 42 O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 43: Process Data Structure

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 44: Troubleshooting

    O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 45: Maintenance

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 46: Decommissioning

    ■ O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐ 8025943.1GWA/2022-08-15 | SICK...

  • Page 47: Technical Data

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 48: Dimensional Drawing

    Figure 25: Dimensional drawing with male connector, M8 knurled O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 49 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 50: Glossary

    8.3. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐ 8025943.1GWA/2022-08-15 | SICK...
  • Page 51 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 52 The stop position is in the direction of the sensor fixing screw. O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 53: Annex

    8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...

  • Page 54: Conformities And Certificates

    (part number: see the entry in the “P/N” or “Ident. no.” field on the type label). O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 55 8025943.1GWA/2022-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | MPS-G with 2 / 3 switching points and IO-Link (up to 16 switching points) & diagnos‐...
  • Page 56 Phone +7 495 283 09 90 E-Mail info@sick.com E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...

Table of Contents
