PICO Toµch Series Controllers
Operation (continued)

Clearing Alarms

When an alarm occurs, the screen title bar blinks red and an alarm
window appears.
When an alarm occurs:
1. Clear the alarm. Alarms can be cleared in two ways:
• Locally at the controller by pressing OK (check).
• Remotely through pin 6 (Error Reset) of the I/O 1 (input / output)
connector. Refer to "Input / Output Port Pin Descriptions" on
page 53 to connect inputs / outputs.
2. If needed, correct the problem that caused the alarm. Refer to
"Troubleshooting" on page 49 for complete troubleshooting
information, including a list of all system alarms, causes, and
corrective actions.
46 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

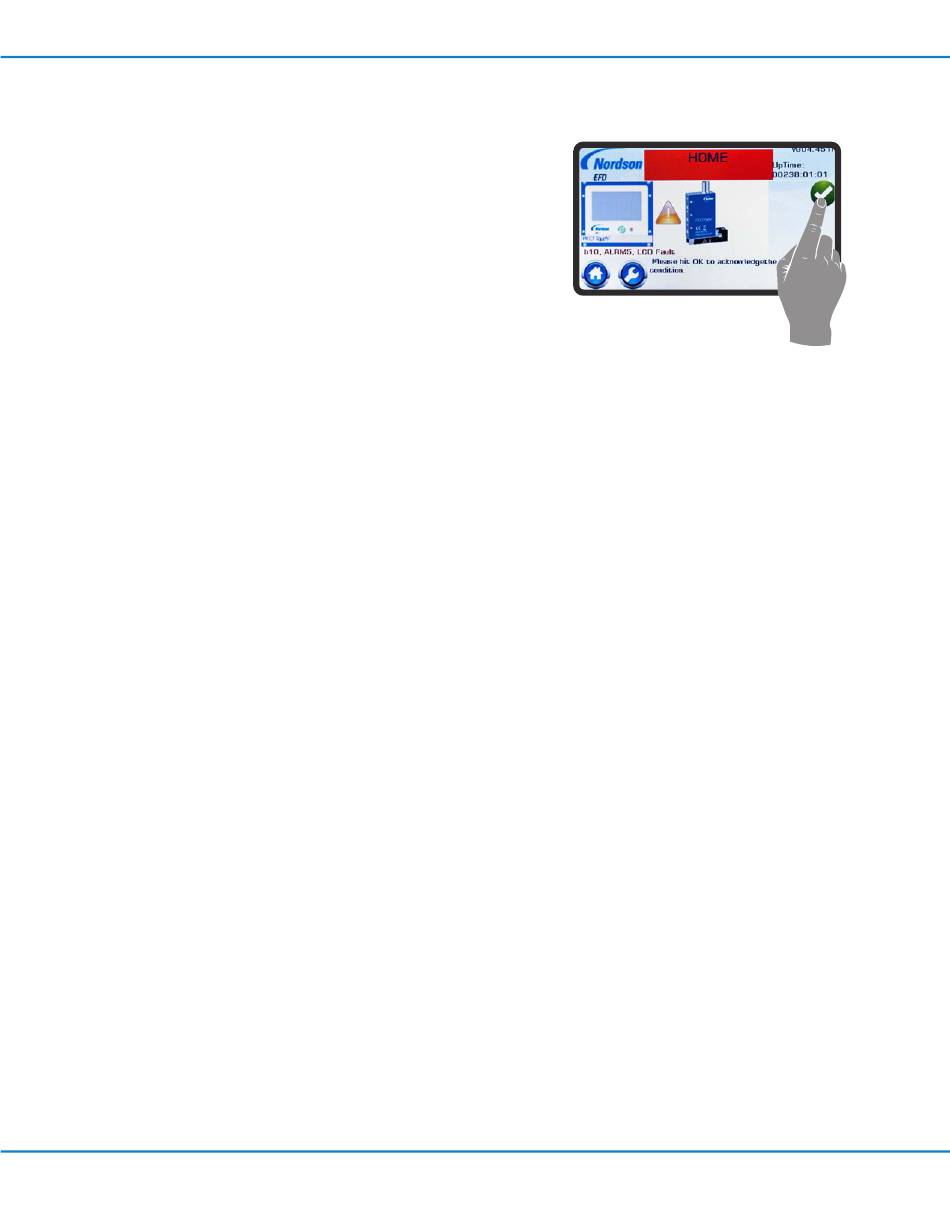

Clearing an alarm
