SPARE TIRE DELETE
18+ JEEP JL WRANGLER
TSJL-02
TOOLS
REQUIRED
- 10, 13, 22mm Socket
- #3,#4, #5 Allen Bit
- T8, T25, T30 Torx Bit
- Philips Head Screw Driver
- 16 Gauge Wire
- Crimping Tool
- Trim Clip Tool
- Rubber Mallet
- Socket Extension
- Masking tape
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice
- 1 person(you)
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 2 Hours
Time to install this should only
take about two and a half hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DV8 OFFROAD TSJL-02
Summary of Contents for DV8 OFFROAD TSJL-02

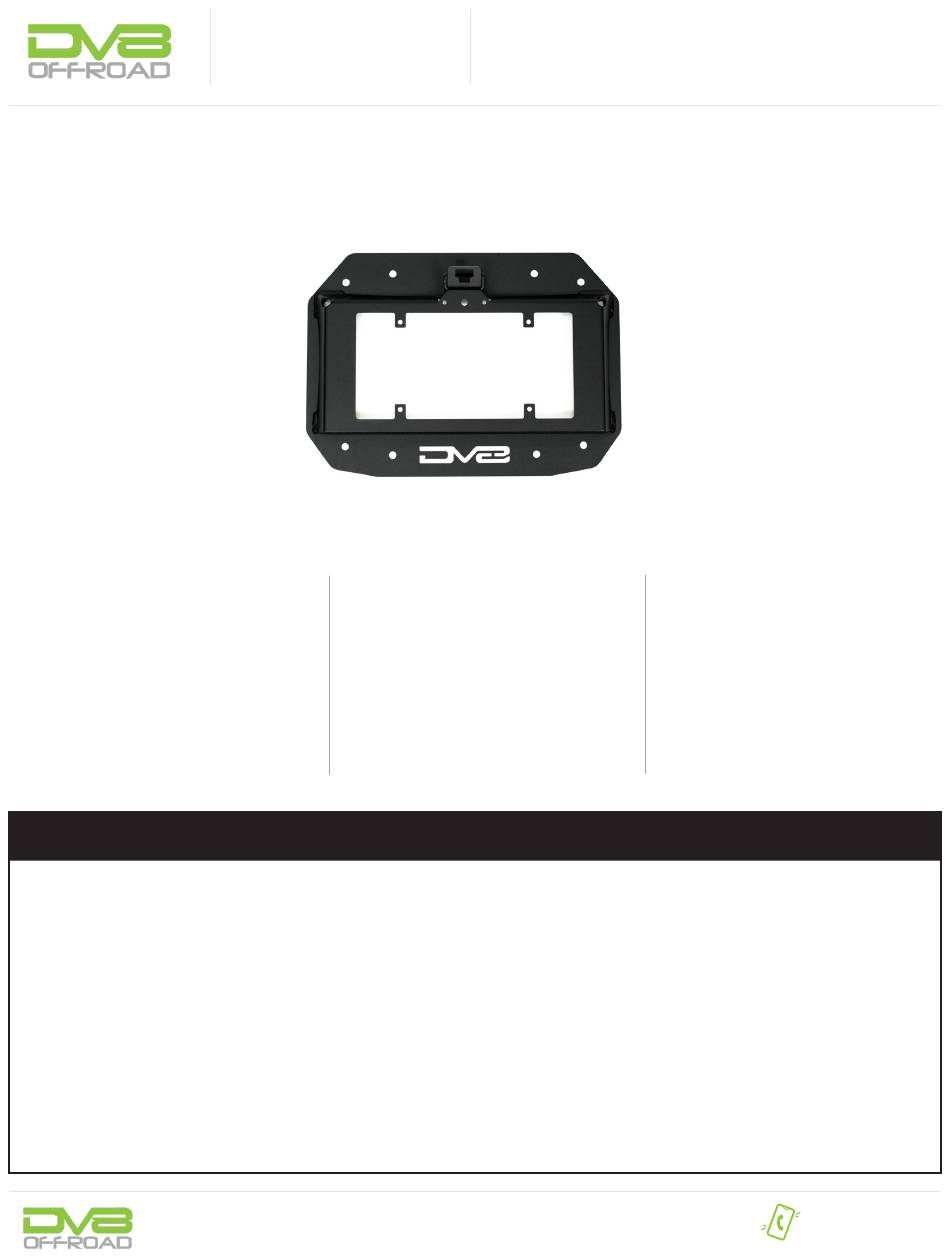

- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (4) M6x20mm Bolts (2) M4x15mm Cross Head Bolts (4) M6x14mm Bolts...
- Page 3 INSTALLATION MANUAL STEP 3 | Open your tailgate, using a plastic trim remover tool, pry off the back plate. Pull straight back to avoid breaking off any tabs. STEP 4 | Unclip the top two plugs to the camera and the third brake light.
- Page 4 INSTALLATION MANUAL STEP 6 | Remove the rear camera and third brake light wiring harness. While holding the carrier, grab the rubber wire grommet and pull the harness out and away from the door. STEP 7 | Once the carrier is removed, place the carrier face up on a soft surface.
- Page 5 INSTALLATION MANUAL STEP 9 | Remove the two bolts on the face of the carrier on either side of the camera tower using a T25 torx tool. This will allow you to remove the camera and studs. STEP 10 | To remove the stud plate, tap on the studs evenly with a hammer or mallet to push them out of the...
- Page 6 INSTALLATION MANUAL STEP 12 | Remove the wire harness from the stud plate. Clip the zip tie to release the wire STEP 13 | Pull the camera mount from the carrier and using a T8 Torx bit, remove the camera from the mount and unplug from the harness and set everything off to the side.
- Page 7 INSTALLATION MANUAL STEP 15 | Install your camera into the DV8 camera housing and center the camera as shown. Use a piece of masking tape to keep the camera centered and in place. 855-680-9595 NEED HELP?
- Page 8 INSTALLATION MANUAL STEP 16 | Route your camera wiring harness through the DV8 Tire carrier delete plate. STEP 17 | Plug the camera and harness together. STEP 18 | Install the camera housing onto the tire carrier delete plate. Use the provided (2) M5 allen head bolts, M5 flat washers and a #3 allen tool to secure the camera housing to the delete plate.
- Page 9 INSTALLATION MANUAL STEP 19 | Install the provided foam piece onto the back of the license plate light as shown. STEP 20 | Install the provided license plate light onto the delete plate using the provide M5 cross head bolts, M5 split washers, M5 flat washers, and M5 Nylon lock nuts.
- Page 10 INSTALLATION MANUAL STEP 21 | Use the provided M6 hardware to loosely secure your license plate to the DV8 delete plate frame. Use a #4 allen tool and 10mm wrench/ socket to secure the (4) M6 license plate allen head bolts. STEP 22 | Remove the (2) factory tailgate rubber stops.
- Page 11 INSTALLATION MANUAL STEP 23 | Route the rear camera wiring harness through the tailgate vents as shown. Pull the excess wiring harness through the tailgate while holding the license plate delete frame against the vehicles tailgate. 855-680-9595 NEED HELP?
- Page 12 INSTALLATION MANUAL STEP 24 | Secure the DV8 tire carrier delete plate to the vehicle using the provide M8 allen head bolts with (1) M8 flat washer per bolt and a #5 allen tool. STEP 25 | Reconnect the rear cameras wiring harness.
- Page 13 INSTALLATION MANUAL STEP 26 | Reinstall the tailgates interior trim panel. STEP 27 | Double check that all hardware is secure. Congratulations, installation of the DV8 JL tire carrier delete is now complete. 855-680-9595 NEED HELP?
