METALÚRGICA SIEMSEN LTDA.
CNPJ: 82.983.032/0001-19
Rodovia Ivo Silveira - km 12, nº 9525, Galpão 1 - Bairro: Bateas - CEP: 88355-202
Brusque - Santa Catarina - Brasil
Phone: +55 47 3211 6000 - Fax: +55 47 3211 6020
www.siemsen.com.br - comercial@siemsen.com.br
49766.5 - INGLES
Data de Correção: 30/12/2013

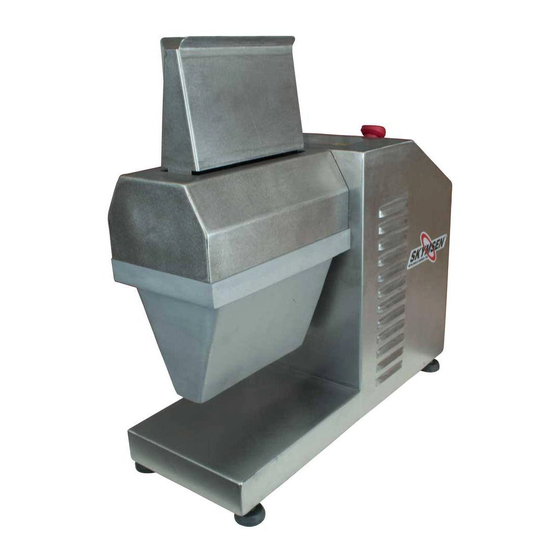

MEAT TENDERIZER HEAVY DUTY STAINLESS STEEL
MODEL
ABN-HD-N
- Besides this equipment, a complete range of other products are manufactured, consult our dealers.
- Due to the constant improvements introduced to our equipments,
the information contained in the present Instruction Manual may be modified without previous notice.
Advertisement
Table of Contents
Related Manuals for Skymsen ABN-HD-N
Summary of Contents for Skymsen ABN-HD-N
- Page 1 Data de Correção: 30/12/2013 MEAT TENDERIZER HEAVY DUTY STAINLESS STEEL MODEL ABN-HD-N - Besides this equipment, a complete range of other products are manufactured, consult our dealers. - Due to the constant improvements introduced to our equipments, the information contained in the present Instruction Manual may be modified without previous notice.
-
Page 2: Table Of Contents
SUMMARY ___________________________________________________________ ___________________________________________________________ 1. Introduction ..................3 ___________________________________________________________ 1.1 Safety ........................3 ___________________________________________________________ 1.2 Main components ....................5 ___________________________________________________________ 1.3 Technical Characteristics ..................6 ___________________________________________________________ ___________________________________________________________ 2. Installation and pre operation ............6 ___________________________________________________________ ___________________________________________________________ 2.1 Installation ......................6 ___________________________________________________________ 2.2 Pre Operation ...................... -
Page 3: Safety
___________________________________________________________ 1. Introduction ___________________________________________________________ ___________________________________________________________ 1.1 Safety ___________________________________________________________ When incorrectly used this equipment is a potentially DANGEROUS machine. Maintenance, ___________________________________________________________ cleaning or any other service shall be performed by a duly trained person and with the ___________________________________________________________ machine unplugged. ___________________________________________________________ ___________________________________________________________ To avoid accidents respect the following instructions: ___________________________________________________________... - Page 4 ___________________________________________________________ 1.1.13 Never remove the Protection Lid # 01 (Pic.01) before to be sure the Rolls #.06 (Pic.01) are totally stopped. ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ IMPORTANT ___________________________________________________________ For mayor operator protection this equipment is provided with a safety system not ___________________________________________________________ allowing to be involuntary switched ON after an eventual energy shortage.
- Page 5 7. Electric Diagram 1.2 Main Components All components of this equipment were designed and manufactured using carefully selected materials to their proper functions, according to test standards and experience of Siemsen. PICTURE 01 01 - Protection Lid 06 - Rolls 02 - Rolls Support 07 - Comb 03 - Housing...
-
Page 6: Installation And Pre Operation
1.3 Technical Characteristics TABLE 01 Maintenance must be considered a set of procedures with the purpose to keep the CHARACTERISTICS UNIT ABN-HD-N equipment best operating conditions, therefore increasing the equipment life and safety. Average Production kg/h up to 400 Voltage * Cleaning –... -
Page 7: Pre Operation
TABLE 02 IMPORTANT PROBLEMS CAUSES SOLUTIONS Make sure the network voltage is the same as indicated on the cord label. - Check if plug is connected to - Lack of electric power; 2.2 Pre Operation its socket or if there is electric shortage;... - Page 8 PICTURE 02 5. Analysis and Problems Solving 5.1 Problem, causes and solutions The equipment has been designed to operate with the need of minimum maintenance but the natural wearing caused by longer use of the equipment may occasionally cause some malfunctions.
- Page 9 PICTURE 03 PICTURE 04 4.6 Maintenance 4.6.1 Dangers Any maintenance with the machine in working situation is dangerous. TURN IT OFF BY PULLING THE PLUG OFF THE SOCKET DURING MAINTENANCE. IMPORTANT Always remove the plug from the socket in any emergency situation. PICTURE 05 PICTURE 06 4.7 Warning...
-
Page 10: Safety System
3.4 Safety System 4.3 Routine Inspection The equipment has a Safety System to avoid an automatic starting after an electric 4.3.1 Advice shortage. If a shortage occurs, to start the machine follow the procedure item 3.1. When checking the tension of the belts or chains, DO NOT introduce your fingers between The equipment does not operate if the Protection Lid # 01 (Pic. - Page 11 PICTURE 10 4.1.3 Precautions En el caso de falta de energía eléctrica, desligue inmediatamente la llave prende/apaga. Use solamente óleos lubrificantes o grasas recomendadas o equivalentes. Evite choques mecánicos, ellos pueden causar fallas o malo funcionamiento. Evite que agua, suciedad o polvo entren en los componentes mecánicos y eléctricos de la maquina.
-
Page 12: Caution With Stainless Steel
4. General Safety Practices 3.6 Cautions with Stainless Steel The Stainless Steel may present rust signs, which ARE ALWAYS CAUSED BY EXTERNAL IMPORTANT AGENTS, especially when the cleaning or sanitization is not constant and appropriate. If any recommendation is not applicable to your equipment, please ignore it. The Stainless Steel resistance towards corrosion is mainly due to the presence of chrome, which in contact with oxygen allows the formation of a very thin protective coat.
