Page 1

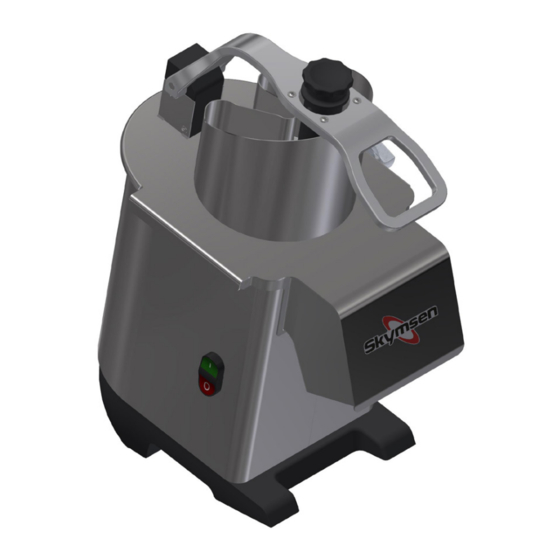

FOOD PROCESSOR, STAINLESS STEEL, WITH SAFETY SYSTEM, (DISC DIAMETER 203 MM) PROCESADORA DE ALIMENTOS, INOXIDABLE, CON SISTEMA DE SEGURIDAD, (DIÂMETRO DE DISCO 203 MM) MODEL/MODELO PA-7 PRO 69994.8 - ENGLISH/ESPAÑOL Data de Revisão: 19/08/2022 METALÚRGICA SKYMSEN LTDA. Rodovia Ivo Silveira, 9525 - Volta Grande...
SUMMARY 1.1.4 Keep the hands or any other object away from moving parts while the equipment is in operation. 1.1.5 Never wear clothes with loose sleeves, when operating 1. INTRODUCTION ......2 the appliance. 1.1.6 Check if the equipment tension is the same as the 1.1 Safety ...........
CHART 01 The chart below shows the dimensions of equipment to the instalation. CHARACTERISTICS UNIT PA7 PRO CHART 02 Voltage 110 / 220 Frequency Height (open lid) 850 mm Nominal Power height (closed lid) 580 mm Motor Power Width (open lid) 540 mm Height Width (closed lid)
Page 4
The CHART 05 (The Chart of sellected cuts) suggests some types of cuts to the products that are commonly processed in kitchens and restaurants. The cutting results depend on the type and quality of the procut to be processed. CHART 05 CHART OF SELLECTED CUTS Food / Cut Slices...
3. INSTALLATION Y PRE-OPERATION FIGURA 03 3.1 Positioning This appliance must be positioned on a dry, steady and leveled position with a preferable height of 850mm. 3.2 Electrical Installation The electrical cable has 3 pins, the central one being the grounding.
Page 6
sure the disc is fully stopped. CHART 06 All the discs must easily fit in the traction system, with only Dicing Cutting Option a little turning movement of the disc. CUBE GRID Any contact between the disc and the lid indicates a bad positioning of the disc.
4.2.3 Feeding the Processor electric circuits, etc. Check the appliance so that all the components are working correctly and that the operation The Food Processor has two feeding nozzles, each one with is working normally. its particularities. * Installation – Check the installation of your appliance PICTURE 08 PICTURE 09 according to the item 2.1 Installation of this manual.
7. PROBLEM SOLVING CHART 07 PROBLEMS CAUSES SOLUCTIONS - Incorrect starting procedure; - Read the item 3.1 - Starting the machine; - Thermal protector working; - Wait for some minutes and start again; - Close the Lid; - The equipment doesn´t turn - The Disc Housing Lid is open;...
8. ELECTRICAL DIAGRAM POWER GRID BLUE WIRE BLACK WIRE...
Page 10
INDICE 1.1.3 No use accesorios que no sean recomendados por el fabricante. 1.1.4 Mantenga las manos o cualquier utensilio alejados de las partes en movimiento. 1. INTRODUCCIÓN ......10 1.1.5 Nunca use ropas con mangas anchas, principalmente en los puños, durante la operación. 2.
Page 11
CUADRO 01 El cuadro a seguir, contiene las dimensiones de la máquina para su respectiva instalación. CARACTERÍSTICAS UNIDAD PA-7 PRO CUADRO 02 Tensión 110 / 220 Altura (tapa abierta) 850 mm Frecuencia Potencia Nominal Altura (tapa cerrada) 580 mm Potencia del Motor...
Page 12
El CUADRO 05 (Cuadro de selección de cortes) sugiere algunos tipos de cortes para los productos comúnmente procesados en cocinas y restaurantes. El resultado de los cortes va a depender del estado, del tipo y de la calidad del producto a procesar. CUADRO 05 CUADRO DE SELECCIÓN DE CORTE Rebanada...
Page 13
3. INSTALACIÓN Y PRÉ-OPERACIÓN FIGURA 03 3.1 Posicionamiento Su aparato debe ser posicionado sobre una superficie seca, firme y nivelada, con 850 mm de altura, preferencialmente. 3.2 Instalación Electrica Antes de conectar el enchufe al tomacorriente, compruebe el voltaje indicado en la etiqueta existente en el cable de alimentación.
Page 14
Todos los discos deben encajar fácilmente en el eje de CUADRO 06 tracción. Para ello, basta realizar un pequeño movimiento Opciones de cortes en cubo giratorio del disco. REJILLA DE CORTE EN CUBO Cualquier tipo de contacto entre el disco y la tapa del recipiente, indica una incorrecta colocación del disco.
Page 15
4.2.3 Alimentando los Vertedores * Limpieza – Verificar el ítem 3.3 “Limpieza” de este manual. La Procesadora de Alimentos posee dos vertedores de * Cableado: Revise todos los cables para corroborar posible alimentación, cada uno con sus particularidades. deteriorización y todos los contactos (terminales) eléctricos para verificar posibles aplastados y corrosión.
Page 16
8. RESOLUCIÓN DE PROBLEMAS CUADRO 07 PROBLEMAS CAUSAS SOLUCIONES Procedimiento accionamiento - Lea el ítem 3.1 - incorrecto. Accionamiento - Protector térmico del motor está actuando. - Aguarde algunos minutos e intente nuevamente. - La Tapa del Recipiente de los discos está - El equipo no enciende.
Page 17
9. DIAGRAMA ELECTRICO RED ELÉCTRICA HILOS AZULES HILOS NEGROS...
