INSTALLER'S
GUIDE
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
Filter Box Kit:
BAYBRFBX100A
A Cabinet Air Handlers
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.
Section 1. Safety Information
WARNING
s
s
SAFETY HAZARD!
by individuals possessing adequate backgrounds of electrical
and mechanical experience. Any attempt to repair a central air
conditioning product may result in personal injury and/or prop-
erty damage. The manufacturer or seller cannot be responsible
for the interpretation of this information, nor can it assume any
liability in connection with its use.
Section 2. General Information
Open and inspect contents for damage or
missing items.

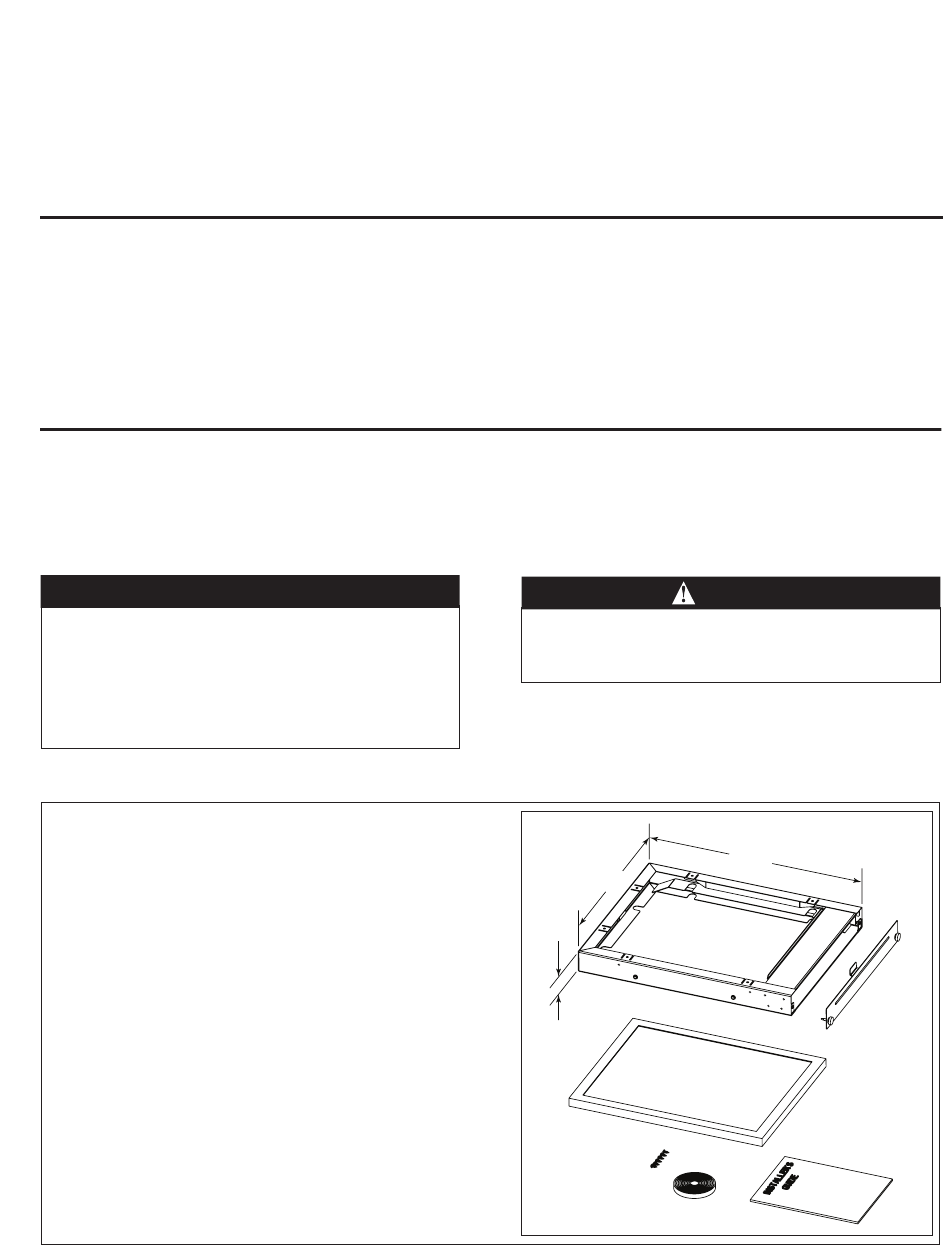

Each kit will contain:
1 - Frame assembly
1 - Door assembly
1 - Gasket material
1-
16" x 20" Filter
6 - Phillips pan head screws
1-
Installer's Guide
For GAF2 Series
This information is intended for use
18-GJ39D1-2A-EN
Fits Models:
Hyperion
ForeFront
Air Handlers
SAFETY HAZARD!
Sharp Edge Hazard. Be careful of
sharp edges on equipment or any cuts made on sheet metal
while installing or servicing. Personal injury may result.
17.5"
2.25"
and
TM
TM
CAUTION
21.8"
Advertisement
Related Manuals for Trane BAYBRFBX100A
Summary of Contents for Trane BAYBRFBX100A
- Page 1 GUIDE ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES Filter Box Kit: Fits Models: Hyperion BAYBRFBX100A For GAF2 Series ForeFront A Cabinet Air Handlers Air Handlers IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.
- Page 2 INSTALLER'S GUIDE Section 3. Installation Step 1 - Remove the filter box door and slide the filter out of the filter box. NOTE: A 2" filter cannot be used if also installing a BAYWMKIT001. This wall mount kit has a flange which will interfere with a 2"...
- Page 3 INSTALLER'S GUIDE Step 5 - Turn the air handler upside down. Step 6 - Align the filter frame assembly for a flush fit with the back of the air handler cabinet. Using six of the supplied Phillips pan head screws, attach the frame assembly to the bottom of the air handler cabinet.
- Page 4 Installer's Guide. About Trane and American Standard Heating and Air Conditioning Trane and American Standard create comfortable, energy efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
