  • Page 1 AIO-104+10 User Manual | 3820 © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 2: Table Of Contents

    TECHNICAL DESCRIPTION ..........................10 SPECIFICATIONS ............................... 16 APPENDIX A – TROUBLESHOOTING........................ 18 APPENDIX B – HOW TO GET ASSISTANCE ..................... 19 APPENDIX C – SILK SCREEN ..........................20 WARRANTY ................................ 21 ....................................© Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 3: Introduction

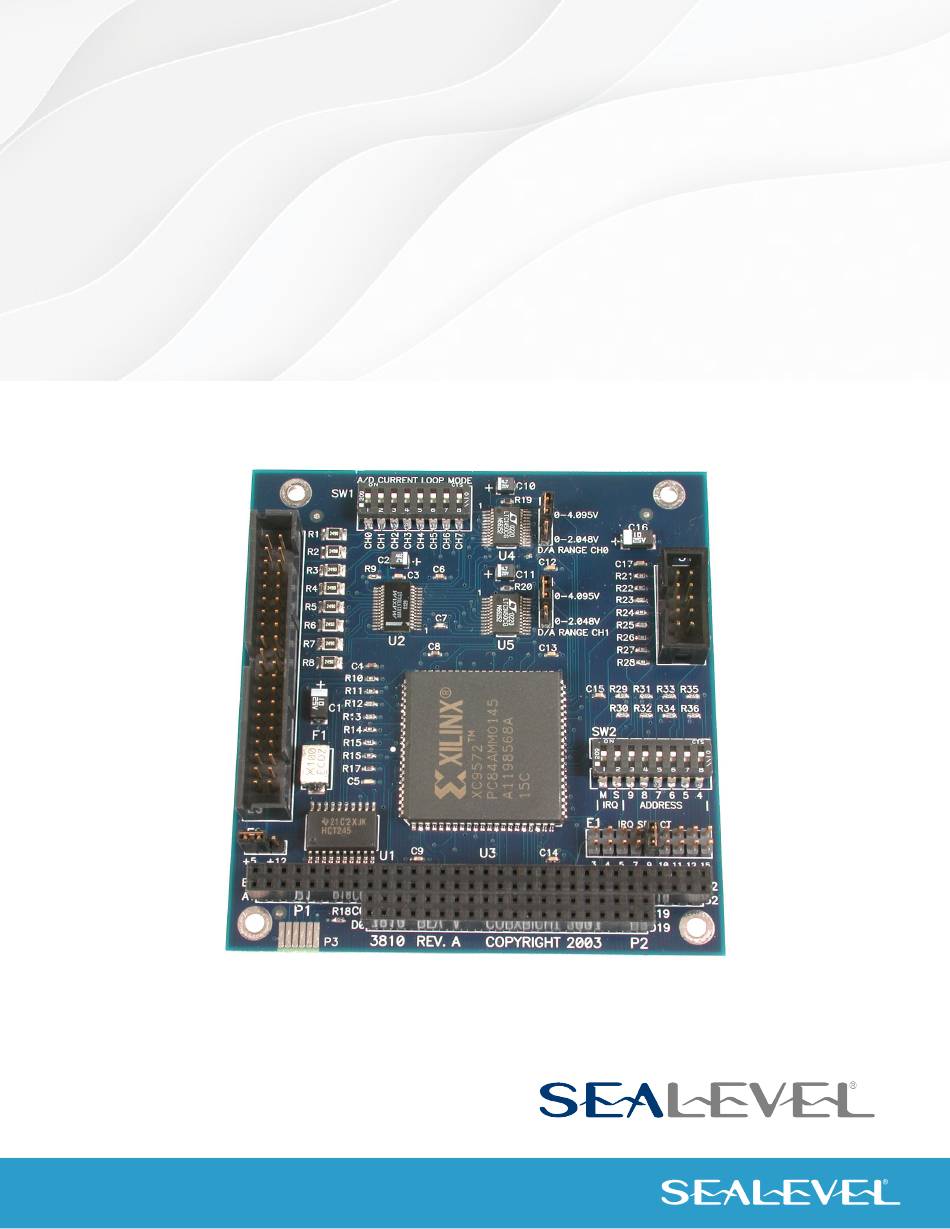

    12-bit Analog to Digital converter and a two channel 12-bit Digital to Analog converter. The adapter also provides 16 bits of Digital I/O, with input/output direction selectable at the bit level. © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 4: Before You Get Started

    Note The lowest level of importance used to provide background information, additional tips, or other non-critical facts that will not affect the use of the product. © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 5: Card Setup

    246.1 ohms). With it off the channel is in a software selectable mode with selections of 0-5V, 0- 10V, ±5V and ±10V. 1 2 3 4 5 6 7 © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 6 The AIO-104+10 has an IRQ selection jumper, which should be set prior to use, if an interrupt is required by the application software. Consult the user manual for the application software being used to determine the proper setting. © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 7 Header E2 (Voltage Selection) Header E2 selects the voltage that is supplied from the card on pin 37 of the IDC40 connector J1. It is fused at 1A and is either +5VDC or +12VDC. © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 8: Software Installation

    Only users running Windows 7 or newer should utilize these instructions for accessing and installing the appropriate driver via Sealevel’s website. If you are utilizing an operating system prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing support@sealevel.com...
  • Page 9: Physical Installation

    Retain any mounting hardware not used to allow for future expansion. 4. The cables provided are keyed and can be installed before or after the adapter is inserted in the stack. 5. Reconnect to power source. © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 10: Technical Description

    P1D2 P1D1 P1D0 Base+6 (R/W) P2CF7 P2CF6 P2CF5 P2CF4 P2CF3 P2CF2 P2CF1 P2CF0 Base+7 (R/W) P2D7 P2D6 P2D5 P2D4 P2D3 P2D2 P2D1 P2D0 Base+8 (Write) Base+9 (Write) Base+A (Write) Base+B (Write) © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 11 Internally controlled acquisition (6 clock cycles) Externally controlled acquisition Range and Polarity Selection (Base+0 bits D4 and D3) Input Range (V) 0 - 5 ± 5 0 – 10 ± 10 © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 12 Digital I/O Port 1 Bits 1-8 (Base+4) (J1 Pins 21-36, grounds inclusive) P1D0 – P1D7 = Digital I/O Port 1 configuration register (Base+5) P1CD0 – P1CD7 = I/O configuration register 0 = input, 1 = output © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 13 DI/O D3 A/D CH4 DI/O D4 A/D CH5 DI/O D5 A/D CH6 DI/O D6 A/D CH7 DI/O D7 No Connect 12Vor 5V fused No Connect No Connect No connect No Connect © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 14 DI/O D4 DI/O D5 DI/O D6 DI/O D7 12Vor 5V fused P5 (IDC10) P5 Pin # Description Port2 D0 Port2 D1 Port2 D2 Port2 D3 Port2 D4 Port2 D5 Port2 D6 © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 15 Port2 D7 Optional DB9 Male (CA152) P5 Pin # DB-9 Description Port2 D0 Port2 D1 Port2 D2 Port2 D3 Port2 D4 Port2 D5 Port2 D6 Port2 D7 © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 16: Specifications

    Channel to Channel Offset ± 0.1 LSB Error Matching Unipolar Channel to Channel Offset ± 0.3 LSB Error Matching Bipolar Gain Error Unipolar ± 10 LSB Gain Error Bipolar ± 10 LSB © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 17 10 to 90% R.H. Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Requirements...
  • Page 18: Appendix A - Troubleshooting

    If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 A.M.- 5:00 P.M., Eastern Time Monday through Friday.
  • Page 19: Appendix B - How To Get Assistance

    If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp.
  • Page 20: Appendix C - Silk Screen

    Appendix C – Silk Screen © Sealevel Systems, Inc. 3820 Manual | SL9134 10/2022...
  • Page 21: Warranty

    Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
