A subdivision of The DAAN Groups
USER MANUAL
MODEL: SX1719
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can con-
tact us directly at www.voltztoys.ca.
Email: help@voltztoys.ca
Phone number: +1-888-338-6589
Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6

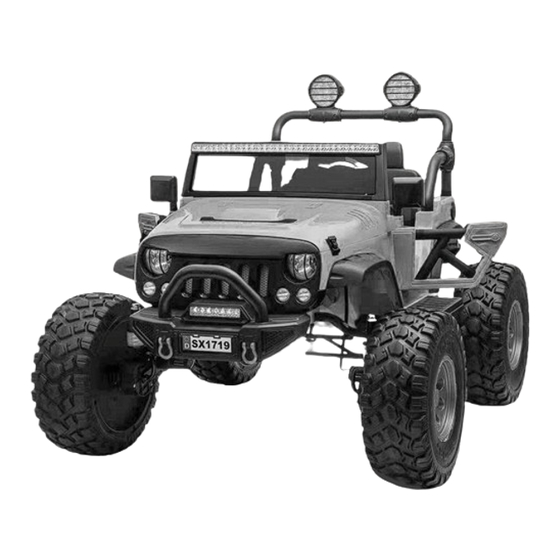

12V MONSTER JEEP
COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA
ENGLISH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAAN Groups VoltzToys SX1719
Summary of Contents for DAAN Groups VoltzToys SX1719
- Page 1 Toys Customer Service can assist you with any replacement parts, damages, or defective issues reported. You can con- tact us directly at www.voltztoys.ca. A subdivision of The DAAN Groups Email: help@voltztoys.ca Phone number: +1-888-338-6589 Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L...
- Page 2 Please read the manual before using the product. The manual and carton contain important information. Please keep the manual for later references. Failure to follow the instructions in the manual may result in damages, acci- dents, or defective issues with the product. To improve the product and quality, we may alter the structure, appearance, packing method, assembly method, and product function without any no- tice.
- Page 3 OPENABLE HOOD The hood contains the battery and other electrical components to function the toy. Unclip the hood latches to open up the hood. Use the provided sup- port rod to hold it open. Locate the (red) battery wire pairing, and connect securely.
- Page 4 FRONT BUMBER WITH SHOCK ABSORBER FUNCTION The front bumper includes a built-in spring. To ensure safety, this bumper feature minimizes injury when impact occurs.
- Page 5 PARTS LIST...
- Page 6 PRODUCT SPECIFICATIONS...
-
Page 7: Table Of Contents
TABLE OF CONTENT • Axles Page 4-5 • Motor Page 6 • Bumper Page 7 • Footrest Page 8 • Top Holder Page 9 • Wheel Page 10 • Seat Page 11 • Steering Wheel Page 12 • Windshield and Mirror Page 12 •... -
Page 8: Axles
1. AXLES ASSEMBLY a. Front axle assembly Begin with the car in an upside down position. Align and slide the steering rod through the hole on the front axle. Secure the steering rod with a wash- er and cotter pin. Fasten the front axle into the car body with screws on both sides. - Page 9 b. Rear axle assembly Springs (assembled), Rear Axle Parts Required: 1. With the rear rod, loosen and remove the nut at one end of the axle. Pull out the rear axle from the rear axle tube. 2. Align the shock absorb- ers with the steel frame.
-
Page 10: Motor
4. Insert the rear axle rod through the steel frame from one end. Slide through the rear axle tube, and through the other end. (Ensure the rear axle tube is in the middle of the steel frame) 2. MOTOR ASSEMBLY Attention: Please refer to sticker to indicate Left and Right. -
Page 11: Bumper
3. FRONT BUMPER ASSEMBLY Parts Required: Front Bumper, 12MM Screws*6 In an upside down position, align the front bumper by inserting it into its corresponding slots. Apply firm pressure to secure. Fix with three screws on each side. Locate the included LED wire, and plug with the corresponding pair located nearby the front bumper. -
Page 12: Footrest
4. FOOTREST ASSEMBLY Parts Required: Footrest Pedals, 12MM Screws*28 The footrests are assembled in two parts; one upper and one bottom footrest. Align both onto the car body, ensuring the footrests are attached properly. The top and bottom must be aligned and corrected together. Fix with screws. -
Page 13: Top Holder
5. TOP HOLDER ASSEMBLY Parts Required: Top Holder A, B, C, Hex Bolt, Nut Bolt, 20MM Screws*4 Holder A Holder B Holder C Position Top Holder A and Top Holder B together to align their screw holes. To- gether with Top Holder A and B, insert both parts into Top Holder C. When all parts are aligned, fix with a bolt and nut. -
Page 14: Wheel
6. WHEEL ASSEMBLY a. Front wheel assembly The wheel is to be assembled in the following order. Insert the front wheel, tire sleeve (pre-assembled inside wheel), washer, and nut. Tighten the nut to secure, and install the wheel cover. b. Rear wheel assembly 1. -
Page 15: Seat
7. SEAT ASSEMBLY Parts Required: Seat, 20MM Screws*2 The seat has two tubes located in the back. Insert the tubes with the holes on the car body slide through until the seat is fully pushed back. The seat needs to be aligned with the screw holes on the car body. Fix with two screws on both corners. -
Page 16: Steering Wheel
8. STEERING WHEEL ASSEMBLY Connect the steering wheel with its corresponding wire pair from the car body. Align the steering wheel with the steering column. Push the steering wheel through by holding the two pins from the steering column. Ensure the steering wheel wire is tucked into the dashboard to avoid tearing the wire. -
Page 17: 10. Battery Connection
10. BATTERY CONNECTION Open the hood by releasing the two hood latches, use the support rod to hold the hood upright. Connect the two (red) battery wires to enable power. Removable batteries are optional. Removable batteries (model versions of the product may vary) can be inserted and released using the quick release feature. - Page 18 FUSE This car is equipped with an auto-reset fuse. If the car stops suddenly while driving, it is caused by the instantaneous current exceeding, enabling the fuse to trip. This will result in the car disabling for about 8 seconds, and this fuse can be reset.
- Page 19 10. To maintain product life and safety, avoid damaging the charger, battery, or electrical circuit. The car must use the default configuration of the dedicated charger and power supply. 11. Rechargeable batteries should be removed from the toy before charging. 12.
- Page 20 Dashboard (function reference diagram) MP3 Player...
- Page 21 MP3 Player (model may vary)
- Page 22 REMOTE CONTROL INSTRUCTION 2.4GHz Remote Control Pairing Procedures This remote is equipped with a memory function to retain it’s connection with your car. When replacing the batteries, you do not need to re-pair the remote. 1. Hold the “M” button for more than three seconds until the center LED lights are flashing.
- Page 23 WARNING 1. When operating the car with the remote, the distance between the car to remote should not exceed 10m range. 2. The remote is provided for adult’s to operate. Keep away from children. 3. Before using the remote, carefully read the instruction manual, ensuring all functions are reviewed properly before operating.
- Page 24 How to insert batteries: Use a screwdriver to unscrew the back cover of the remote. Install two AA 1.5V alkaline type batteries according to the dia- gram (batteries not included). Fix the battery cover with a screw. How to remove batteries: Use a screwdriver to unscrew the back cover of the remote.
- Page 25 1. First, insert the charger into the charging port. 2. Carefully insert the charger outlet into the power outlet. Please note the car will not turn on when the car is connected. WARNING 1. The assembly of the car must be done by an adult. When unassembled, it contains potentially hazardous parts that are sharp or small.
- Page 26 • Before charging, please inspect the charger, battery, and plug to ensure no damages or abnormalities are found. If any damages are found, dis- continue usage of the car until the parts are replaced or resolved. • The battery may feel warm while being charged - this is normal. If the temperature from the charger does not elevate, it may be caused by a short circuit from the charger or circuit board.
- Page 27 6. Use a soft cloth to clean the car. Do not use chemical solvents, soap, or water to clean the vehicle. Do not drive under precipitation (e.g. snow, rain, etc.) as this will damage the motor, battery and circuit system. 7.
- Page 28 TROUBLESHOOTING...
