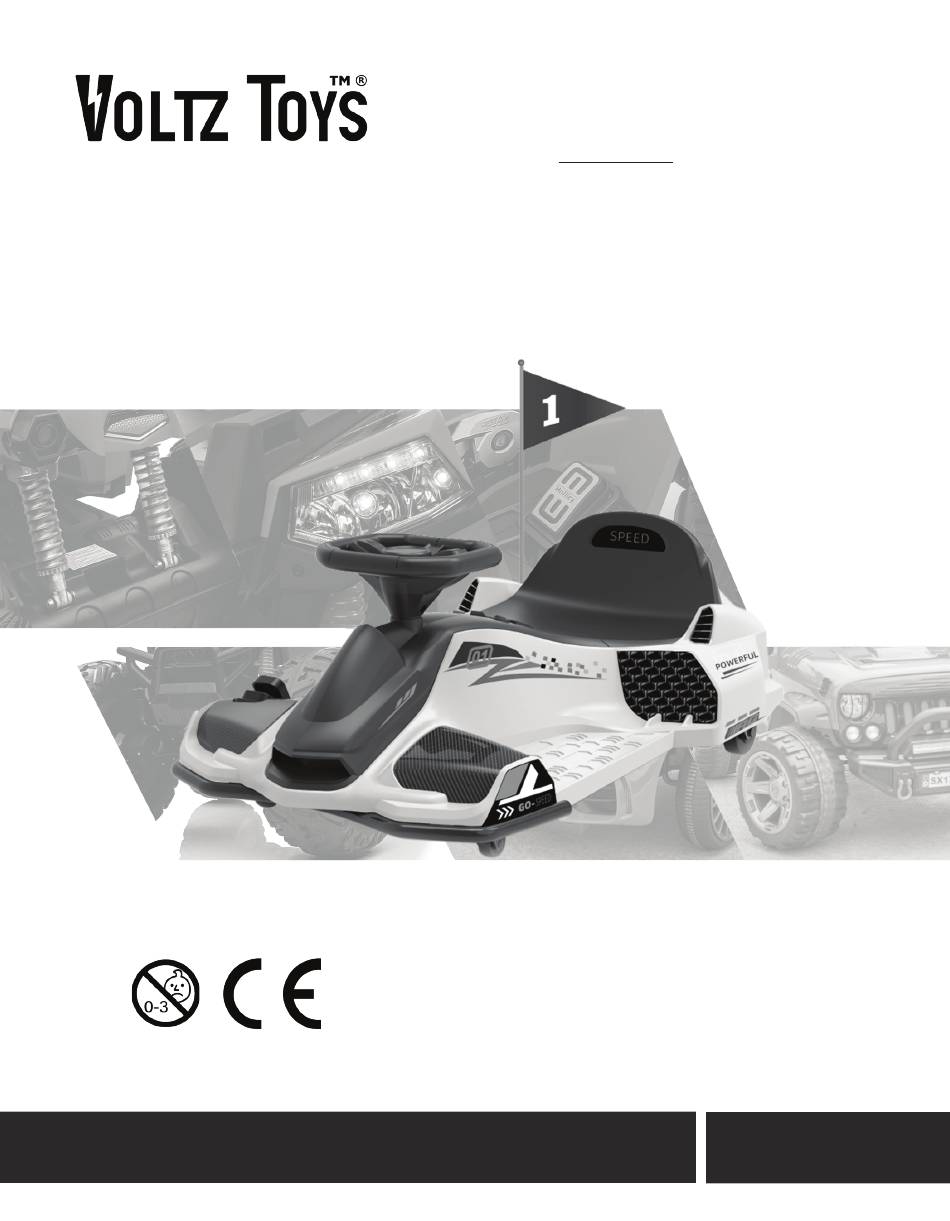

A subdivision of The DAAN Groups
USER MANUAL
MODEL: DG-82219
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can contact
us directly at www.voltztoys.ca.
Email: help@voltztoys.ca
Phone number: 1-888-338-6589
Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6
COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
THUNDER DRIFT
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Voltz Toys DG-82219 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DAAN Groups Voltz Toys DG-82219

  • Page 1 Toys Customer Service can assist you with any replacement parts, damages, or defective issues reported. You can contact us directly at www.voltztoys.ca. A subdivision of The DAAN Groups Email: help@voltztoys.ca Phone number: 1-888-338-6589 Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L...
  • Page 2 Please read the manual before using the product. The manual and carton contain important information. Please keep the manual for later references. Failure to follow the instructions in the manual may result in damages, acci- dents, or defective issues with the product. To improve the product and quality, we may alter the structure, appearance, packing method, assembly method, and product function without any no- tice.
  • Page 3: Parts List

    PARTS LIST...
  • Page 4: Product Specifications

    PRODUCT SPECIFICATIONS Car Model DG-82219 Battery 12V7*2 Ah Suitable age 8-12 years old Weight Limit 50 kg Product Size 90 x 53 x 33.5 cm Speed 8-13 km / hour Runtime 8-12 hours (to charge), 60-80 minutes (while using) Charger AC 110-240V (input) DC 24V-1000mA (output) Fuse Auto-reset fuse...
  • Page 5: Front Wheel Assembly

    1. FRONT WHEEL ASSEMBLY Parts required: #3 Start installation with up-side-down position. Slide front wheel with steer- ing column through designated opening. Connect the power supply cables (2x) with corresponding cable jack. 2. MOTORS PLUGS CONNECTION Parts required: N/A Connect the 2 x power supply cables with car body.
  • Page 6: Rear Wheel Assembly

    3. FRONT TRAINING WHEEL ASSEMBLY Parts required: #5, #11 Place front supporting wheels at corresponding locations on the car body. Fix the connection with screws. 4. REAR WHEEL ASSEMBLY Parts required: #6 Remove bolts from the back end square tube. Align opening from the back wheel to the slots, secure the connection with the bolts.
  • Page 7: Steering Wheel Assembly

    5. STEERING WHEEL ASSEMBLY Parts required: #4 Remove bolt/nut set from the steering wheel. Adjust the steering and make sure the cable side is closer to the plug on car body. Slide steering wheel through steering column, align the bolt opening and fix the connection with bolt/nut set removed previously.
  • Page 8 7. FLAG INSTALLATION Parts required: #9 Put the decor pole ball to the tip of the flag pole, Peel off the protector from the adhesive tape, and stick and roll the flag to the flagpole. Insert the flag- pole to designated slot, press firmly.
  • Page 9 SPARE WHEEL REPLACEMENT PROCEDURE Use a wrench to remove two screws from the old wheels, replace the spare wheels and fix them with screws. DASHBOARD...
  • Page 10 VARIABLE SPEED PEDAL This pedal is an emulated accelerator similar to automobile gas pedal, the harder you step on, the faster it will be, release the pedal, the car will come to a stop. MP3 PLAYER...
  • Page 11: Security Warning

    FUSE This car is equipped with an auto-reset fuse. If the car stops suddenly while driving, it is caused by the instantaneous current exceeding, enabling the fuse to trip. This will result in the car disabling for about 8 seconds, and this fuse can be reset.
  • Page 12 10. To maintain product life and safety, avoid damaging the charger, battery, or electrical circuit. The car must use the default configuration of the dedicated charger and power supply. 11. Rechargeable batteries should be removed from the toy before charging. 12.
  • Page 13: Charging Procedures

    CHARGING PROCEDURES • For safety purposes, charging must be done by adults. • The charging port is located at the rear of car body, please follow the instructions to charge the battery. 1. First, insert the charger into the charging port. 2.
  • Page 14: Maintenance And Service

    ATTENTION • Dedicated charger and battery can only be used under manufacturer’s regulations. • Do not mix old, new or different types of batteries. • The battery terminal should not be short circuit. • Do not open the battery or charger. •...
  • Page 15 4. The car must be kept away from hot objects, such as stoves and heaters. Direct exposure to hot objects will melt the plastic. The car must be kept away from flammable materials to prevent ignition or fire when charging. 5.
  • Page 16: Troubleshooting

    TROUBLESHOOTING...
