4.2.4

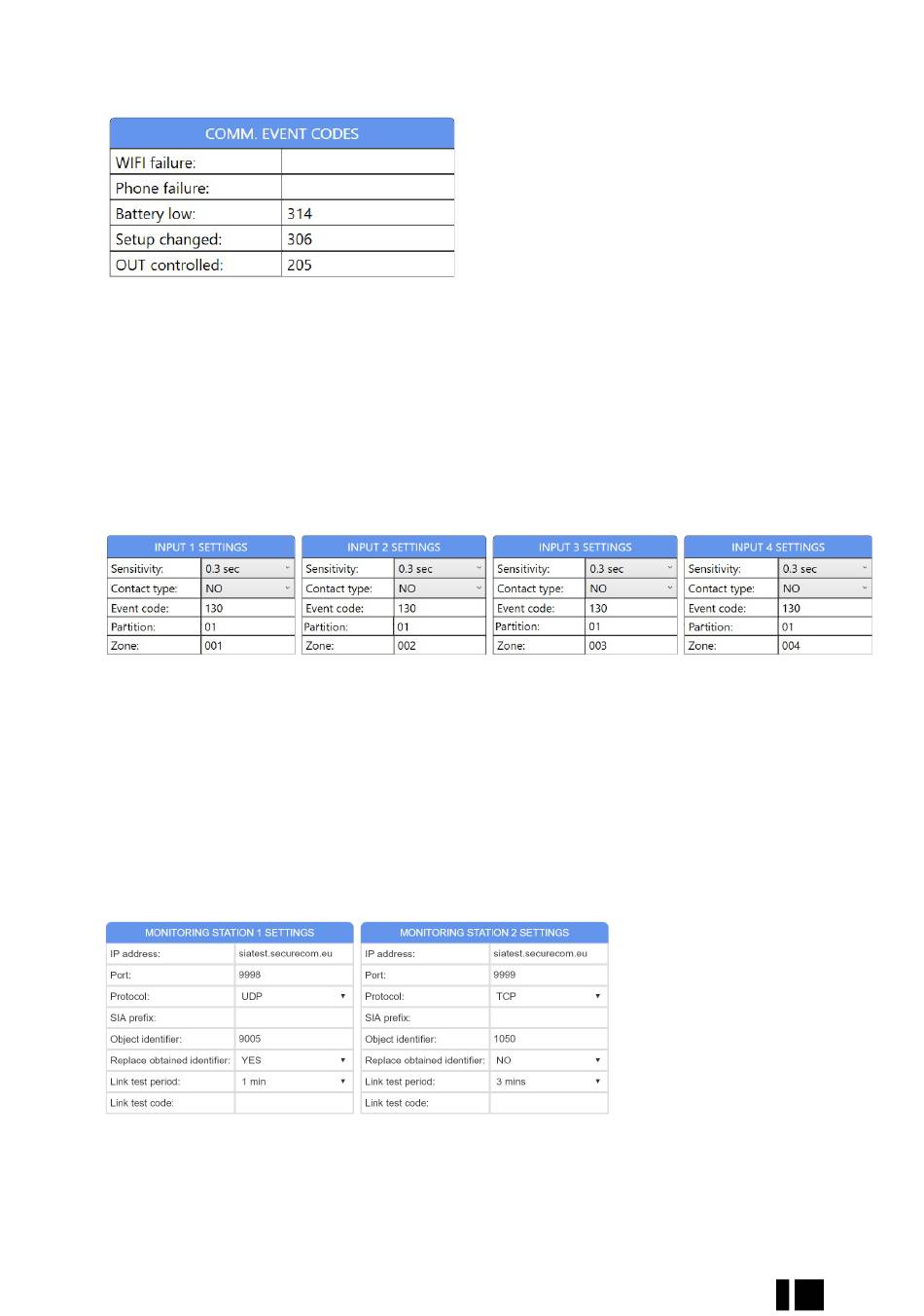

Communicator Event codes

This area contains settings for the event codes that will be generated by Communicator and sent to
monitoring station if the defined event has occurred. If the field is left blank, the event will not be
reported. Setting the appropriate value (that will be recognized in monitoring software), the
monitoring station will be notified when WIFI or mobile data communication is malfunctioning,
when the device supply voltage is insufficient (even for a very short time, "peak"), when the
communicator settings have changed, or when some output state changed.

4.2.5 Inputs Settings

These fields are used to define the four inputs on device. Type of input contact (Normally Open or
Normally Closed), sensitivity (how long should be that input active, to accept that a change has
happened), and a full Contact ID code can be set in these fields.
NOTE: The "sensitivity" parameter is useful to "filter" some unwanted events- for example, when
some NOISE generates an uncontrolled short contact on device input.

4.2.6 Monitoring station settings

To set up the UNIO4 device for reporting to the monitoring station in a required way, following
settings are available:
UNIO4 WxG 9 EN
